NATURALED 9546 FX13SCM100SW/8CCT3/BK 60/80/100W LED 13-Inch Slim Square Canopy Fixture Black Finish 3000K/4000K/5000K 120-277V

Identification & Application

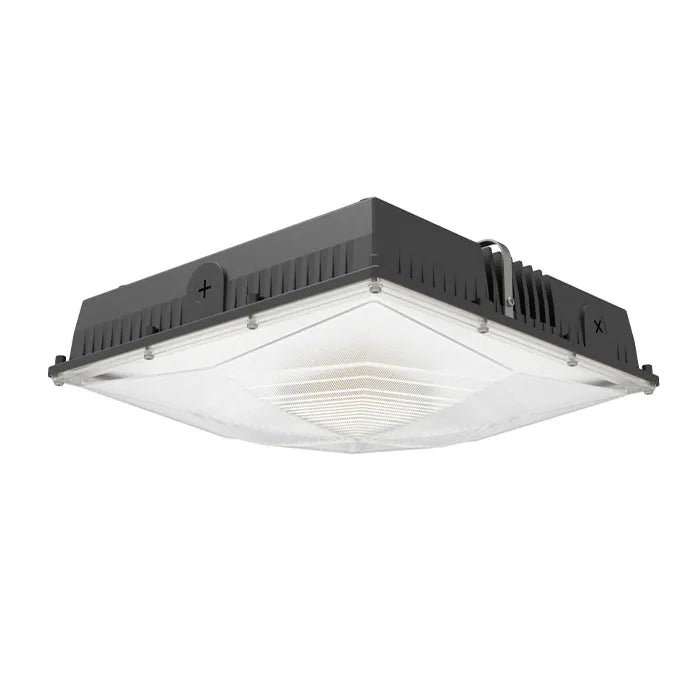

NaturaLED 9546 FX13SCM100SW/8CCT3/BK 60/80/100W LED 13-Inch Slim Square Canopy Fixture Black Finish 3000K/4000K/5000K 120-277V

The NaturaLED 9546 FX13SCM100SW/8CCT3/BK is a premium commercial LED 13-inch Slim Square Canopy Fixture engineered to provide dependable, energy-efficient illumination for warehouses, parking garages, offices, factories, hospitals, hotels, parking structures, walkways, covered canopies, loading areas, and commercial building entrances. Featuring field-selectable wattages of 60W, 80W, and 100W along with selectable color temperatures of 3000K, 4000K, and 5000K, this versatile fixture delivers selectable lumen outputs of 7,506, 10,008, or 12,533 lumens. Its slim low-profile design supports both pendant mounting and direct surface mounting to ceilings or walls while providing a wide 160° beam angle for outstanding area illumination.

Constructed with a rugged die-cast aluminum housing finished in a corrosion-resistant black powder coating, the fixture features a shatter-resistant polycarbonate prismatic lens and an IP65-rated enclosure for dependable indoor and outdoor performance. Operating on universal 120-277V input power, the fixture includes smooth 0-10V dimming, CRI greater than 80, integrated 4kV surge protection, and an AUX 12V line for compatible controls. Three 1/2-inch conduit entry points and a 3/4-inch NPT pendant mount provide flexible installation options, while optional motion sensors, photocells, emergency drivers, beauty plates, wire guards, and surge protection accessories expand functionality.

Designed for commercial reliability, the NaturaLED 9546 is DLC Premium qualified, ETL/cETL Listed, FCC compliant, and RoHS compliant. Rated for 50,000 hours of operation and backed by a 5-year manufacturer's warranty, this slim square canopy fixture delivers exceptional energy savings, reduced maintenance costs, and dependable lighting performance for both retrofit and new construction applications.

Technical Performance Specifications
