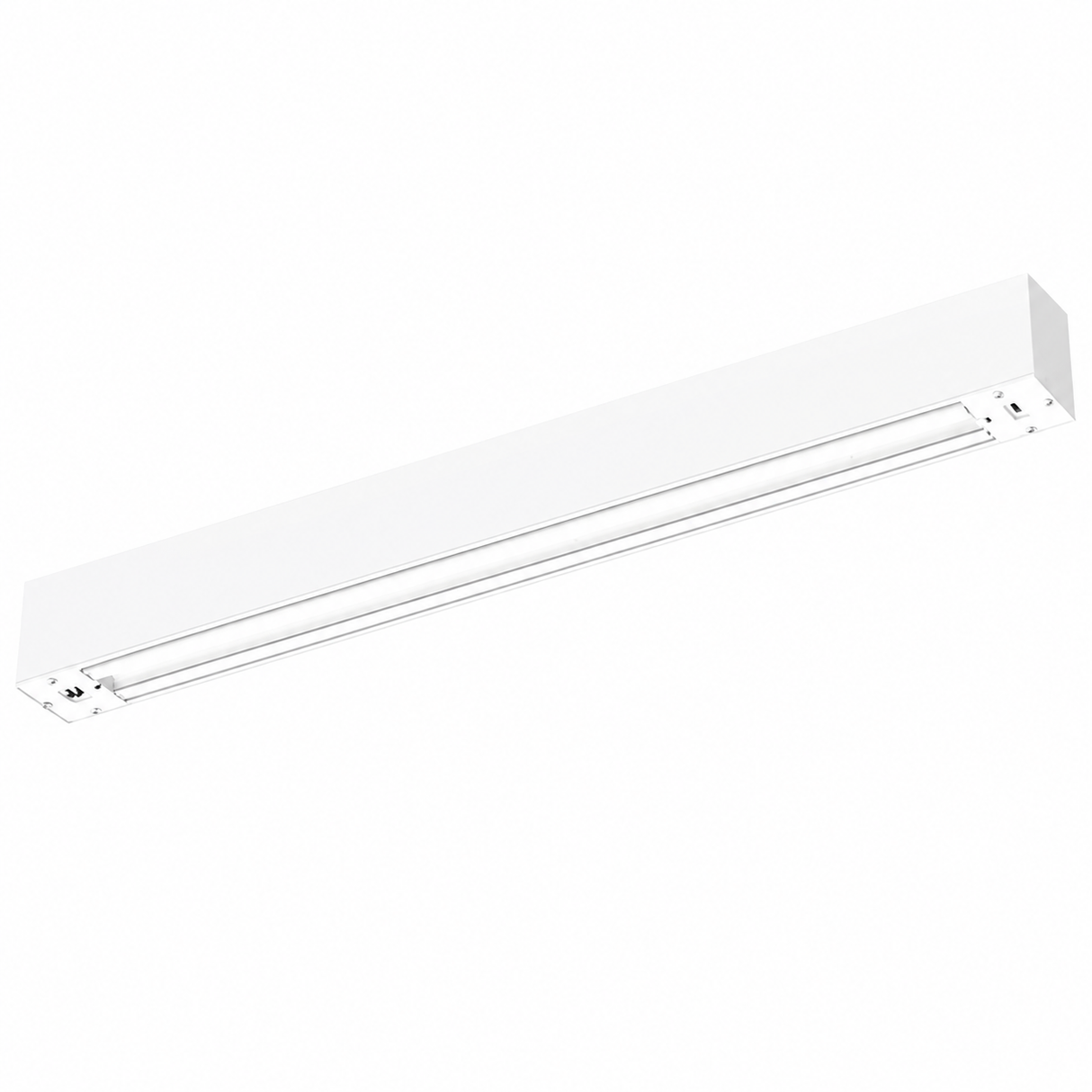

NATURALED 9549 FXLAL60SW/48FR/8CCT5/WH/347 30/35/40/50/60W 4ft LED Linear Architectural Light 3000K/3500K/4000K/5000K/6500K 120-347V

Identification & Application

NaturaLED 9549 FXLAL60SW/48FR/8CCT5/WH/347 30/35/40/50/60W 4ft LED Linear Architectural Light 3000K/3500K/4000K/5000K/6500K 120-347V

The NaturaLED 9549 FXLAL60SW/48FR/8CCT5/WH/347 is a premium 4-foot LED linear architectural light fixture featuring selectable wattages (30W, 35W, 40W, 50W, and 60W) and five selectable color temperatures (3000K, 3500K, 4000K, 5000K, and 6500K). Delivering up to 7,800 lumens with a CRI greater than 80 and a wide 110° beam angle, it provides clean, modern illumination for offices, conference rooms, retail stores, reception areas, educational facilities, healthcare environments, and other commercial interiors.

Designed to operate on 120-347V, this architectural fixture features 0-10V dimming, integrated 4kV surge protection, and field-selectable wattage and color temperature settings for maximum installation flexibility. The fixture distributes light downward and supports suspended, surface, recessed, or wall mounting using the included suspension kit and optional mounting accessories. Optional uplight bars and L-, T-, and X-shape connector systems allow continuous architectural lighting layouts for custom commercial installations.

Rated for 50,000 hours of service life, this fixture is ETL/cETL Listed, DLC Standard Listed, IP20 Rated, and backed by a 5-year warranty. Optional accessories include uplight bar modules, emergency drivers, microwave motion sensors, recessed mounting kits, wall and ceiling mounting clips, and linkable connector systems for expanded installation flexibility.

Technical Performance Specifications
