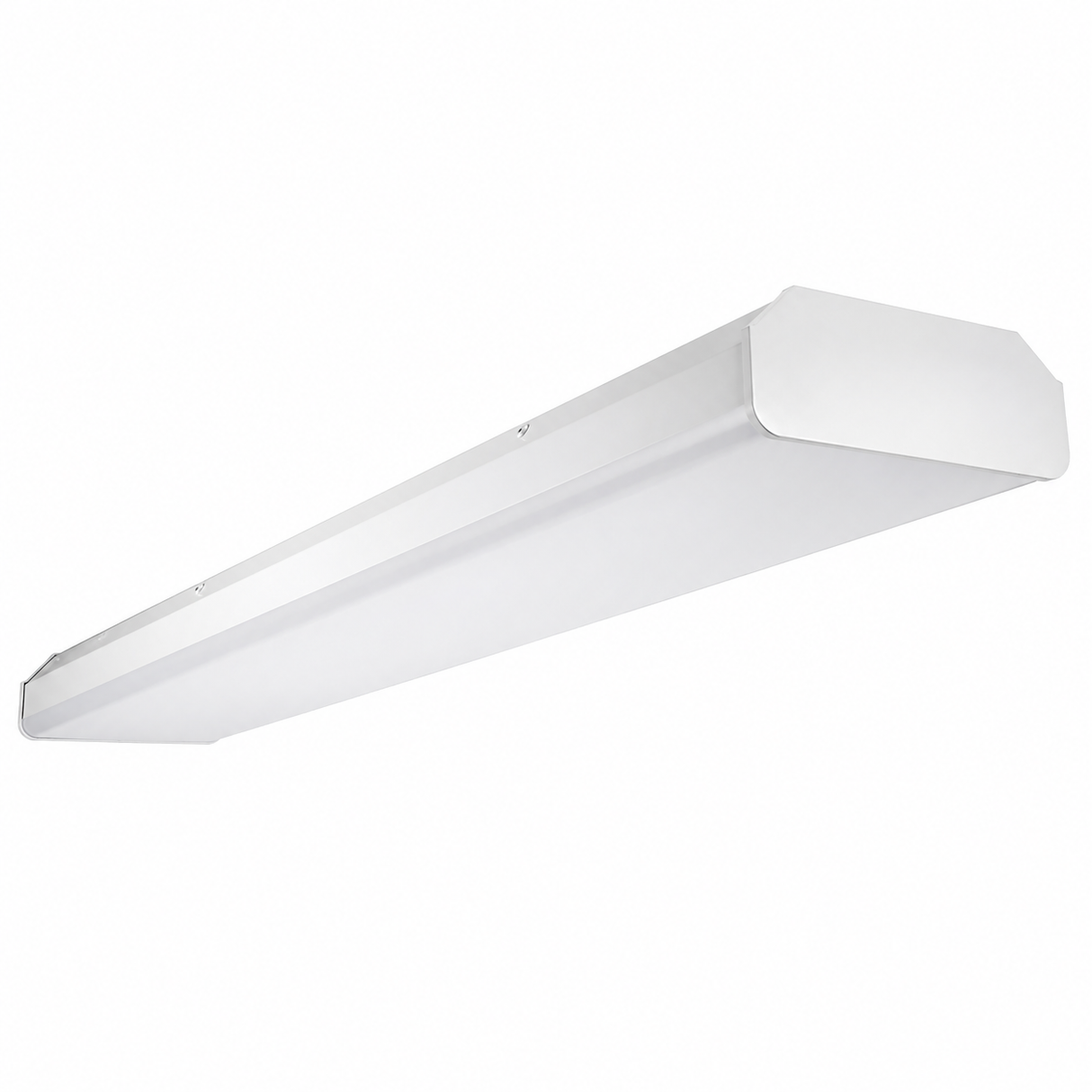

NATURALED 9585 FXCWS44SW/48FR/8CCT3 22/28/34/44W 4ft LED Commercial Wrap Fixture 3500K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9585 FXCWS44SW/48FR/8CCT3 22/28/34/44W 4ft LED Commercial Wrap Fixture 3500K/4000K/5000K 120-277V

The NaturaLED 9585 FXCWS44SW/48FR/8CCT3 is a commercial-grade 4-foot LED wrap-around fixture featuring selectable wattages (22W, 28W, 34W, and 44W) and three selectable color temperatures (3500K, 4000K, and 5000K). Delivering up to 6,063 lumens with a CRI greater than 80 and a wide 110° beam angle, this fixture provides bright, uniform illumination for conference rooms, stairwells, schools, universities, hospitals, hotels, parking garages, hallways, offices, industrial facilities, and commercial spaces.

Designed to operate on 120-277V, the fixture is fully 0-10V dimmable and features selectable wattage and color temperature switches for maximum installation flexibility. Its lightweight steel housing and full wrap-around frosted lens provide easy installation, excellent thermal management, and consistent light distribution. Integrated 2kV surge protection, a power factor greater than 0.9, and damp location construction ensure dependable long-term performance.

Rated for 50,000 hours of service life, this commercial wrap fixture is UL Listed, DLC Standard Listed, suitable for damp locations, and backed by a 5-year warranty. Optional accessories include an emergency driver, motion/daylight sensor, surge protector, wire guard, replacement lens, and remote programmer for expanded installation flexibility.

Technical Performance Specifications
