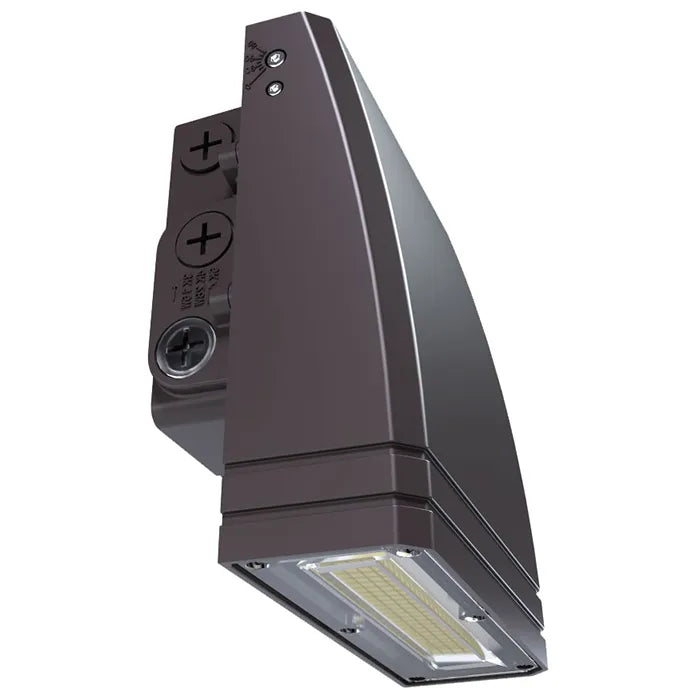

NATURALED 9589 FXSWP45SW/8CCT3/BZ/347-PHO 15/28/45W LED Slim Adjustable Angle Wall Pack Bronze Finish with Photocell 3000K/4000K/5000K 120-347V

Identification & Application

NaturaLED 9589 FXSWP45SW/8CCT3/BZ/347-PHO 15/28/45W LED Slim Adjustable Angle Wall Pack Bronze Finish with Photocell 3000K/4000K/5000K 120-347V

The NaturaLED 9589 FXSWP45SW/8CCT3/BZ/347-PHO is a premium commercial LED Slim Adjustable Angle Wall Pack engineered to provide dependable, energy-efficient outdoor illumination for security lighting, pathways, perimeter lighting, entryways, area lighting, apartment buildings, schools, multi-use facilities, and building facades. Featuring field-selectable wattages of 15W, 28W, and 45W along with selectable color temperatures of 3000K, 4000K, and 5000K, this versatile fixture delivers selectable lumen outputs of 1,800, 3,360, or 5,400 lumens. Its adjustable fixture angle from 0° to 90° allows precise light distribution while maintaining a slim contemporary appearance.

Constructed with a rugged die-cast aluminum housing finished in a corrosion-resistant bronze coating, the fixture is designed for dependable long-term outdoor performance. The low-profile 4-inch ADA-compliant design features an IP65-rated enclosure for excellent protection against dust and water intrusion. Operating on universal 120-347V input power, the fixture includes smooth 0-10V dimming, power factor greater than 0.90, CRI greater than 80, integrated 4kV surge protection, and a built-in dusk-to-dawn photocell for automatic operation. A hinged junction box, adjustable mounting angle, and 1/2-inch NPT knockout simplify installation.

Designed for commercial reliability, the NaturaLED 9589 is DLC Premium qualified and ETL Listed. Rated for 50,000 hours of operation and backed by a 5-year manufacturer's warranty, this slim wall pack delivers outstanding energy savings, reduced maintenance costs, and dependable outdoor lighting performance for both retrofit and new construction applications.

Technical Performance Specifications
