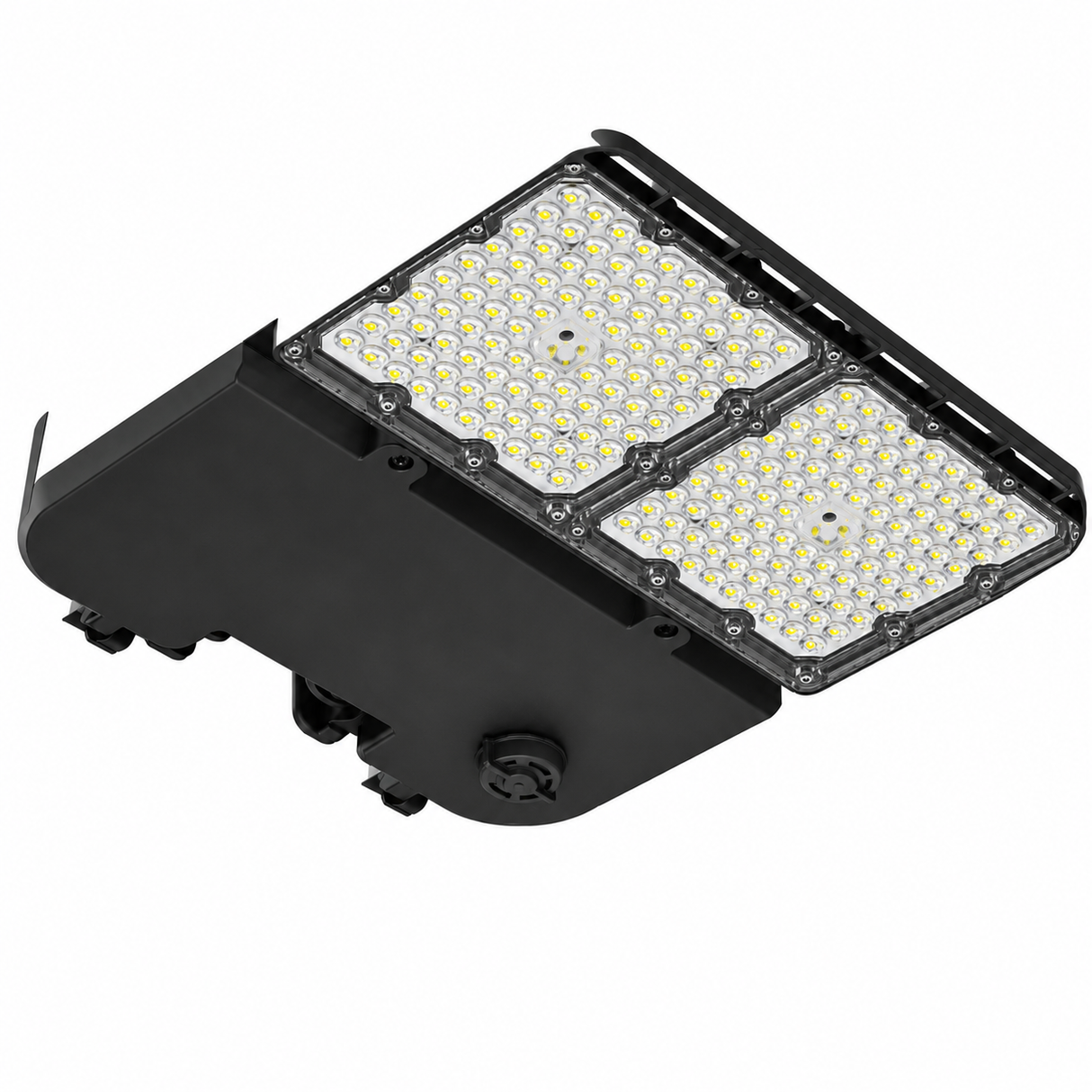

NATURALED 9681 SAL150S/T3/8C3/BK-Z10 90/120/150W LED Slim Area Light Black Finish 3000K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9681 SAL150S/T3/8C3/BK-Z10 90/120/150W LED Slim Area Light Black Finish 3000K/4000K/5000K 120-277V

The NaturaLED 9681 SAL150S/T3/8C3/BK-Z10 is a premium LED slim area light designed to provide efficient, high-output illumination for parking lots, roadways, pathways, perimeter lighting, commercial properties, campuses, building exteriors, security lighting, and sign lighting. Featuring field-selectable wattages of 90W, 120W, and 150W together with selectable color temperatures of 3000K, 4000K, and 5000K, this versatile fixture delivers selectable lumen outputs of 12,649, 16,800, or 21,118 lumens. The integrated Type III distribution provides excellent forward light projection for roadway and area lighting applications.

Constructed with a rugged die-cast aluminum housing finished in a durable black epoxy powder coat, the fixture is engineered for long-lasting outdoor performance. The UV-resistant polycarbonate lens, IP66 weatherproof rating, and integrated 20kV surge protection provide reliable operation in demanding environments. Operating on universal 120-277V input power, the fixture includes smooth 0-10V dimming, CRI greater than 80, a pre-installed Z10 receptacle for plug-and-play lighting controls, and supports optional photocells and motion sensors for additional energy savings. Multiple mounting options including pole mount arm, slip fitter, wall mount, and yoke mount provide exceptional installation flexibility.

Designed for demanding commercial and municipal lighting applications, the NaturaLED 9681 is DLC Premium qualified, ETL/cETL Listed, FCC compliant, RoHS compliant, and rated for over 100,000 hours (L70). Backed by a 7-year limited manufacturer's warranty, this high-efficiency LED area light delivers exceptional energy savings while significantly reducing maintenance costs compared to traditional HID lighting systems.

Technical Performance Specifications
