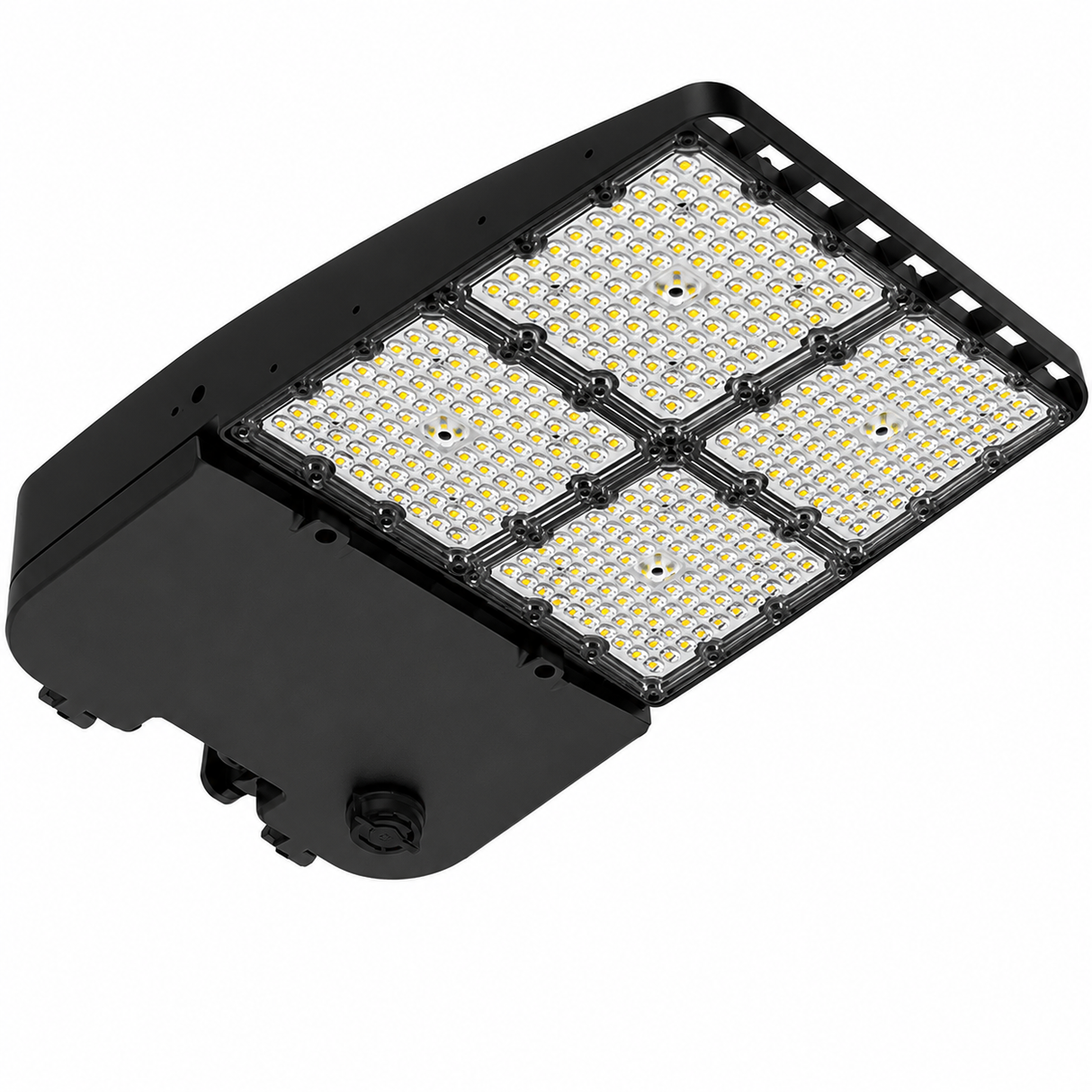

NATURALED 9682 SAL340S/T3/8C3/BK-Z10 200/270/340W LED Slim Area Light Black Finish 3000K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9682 SAL340S/T3/8C3/BK-Z10 200/270/340W LED Slim Area Light Black Finish 3000K/4000K/5000K 120-277V

The NaturaLED 9682 SAL340S/T3/8C3/BK-Z10 is a premium LED slim area light engineered to provide powerful, uniform illumination for parking lots, roadways, walkways, commercial properties, campuses, perimeter lighting, building exteriors, security lighting, and sign illumination. Featuring field-selectable wattages of 200W, 270W, and 340W together with selectable color temperatures of 3000K, 4000K, and 5000K, this high-output fixture delivers selectable lumen outputs of 28,000, 37,800, or 47,600 lumens. The integrated Type III optical distribution provides exceptional forward light projection for roadway and large area lighting applications.

Constructed with a rugged die-cast aluminum housing finished in a durable black epoxy powder coat, the fixture is engineered for reliable long-term outdoor performance. The UV-resistant polycarbonate lens, IP66 weatherproof rating, and integrated 20kV surge protection provide dependable operation in harsh environments. Operating on universal 120-277V input power, the fixture features smooth 0-10V dimming, CRI greater than 80, an AUX 12V output, and a factory-installed Z10 receptacle for plug-and-play photocells and motion sensors. Multiple mounting options including pole mount arm, slip fitter, wall mount, and yoke mount provide maximum installation flexibility.

Designed for demanding commercial and municipal lighting applications, the NaturaLED 9682 is DLC Premium qualified, ETL/cETL Listed, FCC compliant, RoHS compliant, and rated for over 100,000 hours (L70). Backed by a 7-year limited manufacturer's warranty, this high-efficiency LED area light delivers exceptional energy savings while significantly reducing maintenance costs compared to traditional HID area lighting systems.

Technical Performance Specifications
