NATURALED 9684 HBR10/150S/110/8C2/WH-Z10 100/125/150W LED Round Highbay White Finish 4000K/5000K 120-277V

$110.55
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 844366096846

Description

Identification & Application

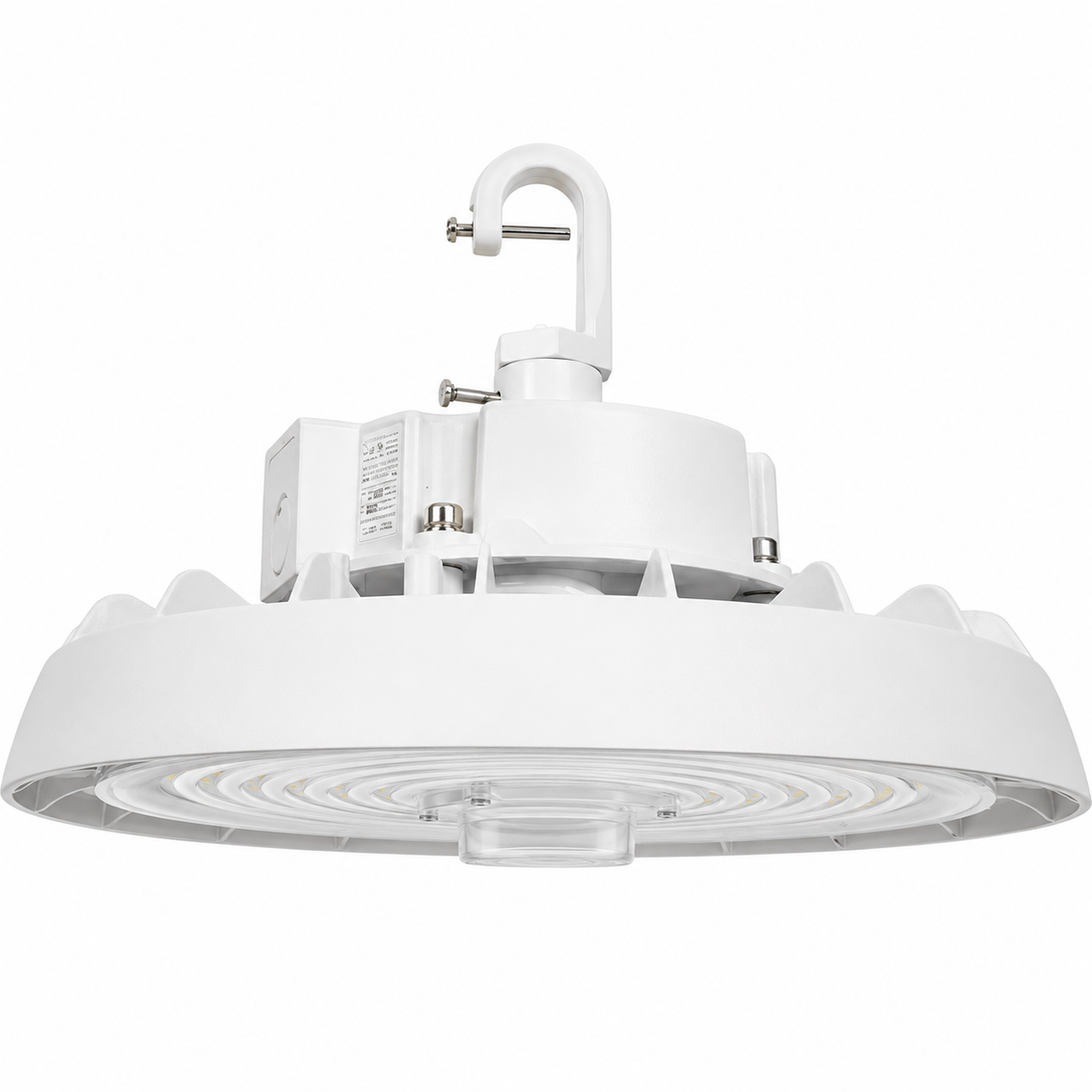

NaturaLED 9684 HBR10/150S/110/8C2/WH-Z10 100/125/150W LED Round Highbay White Finish 4000K/5000K 120-277V

The NaturaLED 9684 HBR10/150S/110/8C2/WH-Z10 is a premium commercial LED Round High Bay fixture engineered to provide powerful, energy-efficient illumination for warehouses, retail stores, gymnasiums, manufacturing facilities, distribution centers, and other high-ceiling commercial applications. Featuring field-selectable wattages of 100W, 125W, and 150W along with selectable color temperatures of 4000K and 5000K, this versatile fixture delivers selectable lumen outputs of 14,000, 18,513, or 20,830 lumens while replacing traditional 250W to 575W HID and fluorescent high bay fixtures. Its wide 110° beam angle and CRI greater than 80 provide bright, uniform light distribution with excellent visibility throughout large interior spaces.

Constructed from durable die-cast aluminum with a corrosion-resistant white powder-coated finish, this compact 10-inch high bay is IP66 rated for protection against dust and water while carrying ETL and ETL Sanitation listings for demanding commercial and industrial environments. The fixture operates on universal 120-277V input power and features smooth 0-10V dimming, integrated 6kV surge protection, a pre-installed Z10 receptacle for plug-and-play lighting controls, and a factory-installed 6-foot power cord with hanging hook for fast installation. The integrated Z10 receptacle allows future upgrades with compatible motion sensors and lighting controls without replacing the fixture.

Built for dependable long-term performance, the NaturaLED 9684 is DLC Premium qualified and rated for 50,000 hours of service life. Backed by a 5-year manufacturer's warranty, this LED round high bay provides outstanding energy savings, low maintenance requirements, and reliable illumination for commercial and industrial lighting applications.

Technical Performance Specifications

Brand NaturaLED
SKU / MPN 9684 / HBR10/150S/110/8C2/WH-Z10
Product Type LED Round High Bay
Electrical Selectable Wattages: 100W / 125W / 150W; Input Voltage: 120-277VAC; Frequency: 50/60Hz; 0-10V Dimmable; Power Factor >0.90; THD <20%; 6kV Surge Protection; Pre-installed Z10 Receptacle
Optical Selectable Color Temperatures: 4000K / 5000K; Selectable Lumens: 14,000 / 18,513 / 20,830 lm; CRI >80; Beam Angle: 110°
Equivalent Wattage 250-575W HID / Fluorescent High Bay Replacement
Mounting Hook Mount Included; Pendant Mount Compatible; Optional Polycarbonate Reflector
Mechanical Die-Cast Aluminum Housing; Corrosion-Resistant Powder-Coated White Finish; IP66 Rated; ETL Listed; ETL Sanitation Listed; DLC Premium Qualified
Dimensions 10.4 in. Diameter × 7.1 in. Height
Operating Temperature -40°F to 122°F (-40°C to 50°C)
Lifecycle Rated Life: 50,000 Hours; 5-Year Manufacturer Warranty
Applications Warehouses, Retail Stores, Gymnasiums, Industrial Facilities, Manufacturing Plants, Distribution Centers, Commercial Buildings, Architectural Lighting
Accessories P10376 Polycarbonate Reflector; P10569 Z10 PIR Motion Sensor; P10316 Remote Programmer; P10191 1/2 in. to 3/4 in. NPT Pendant Mount Adapter; 7344 Emergency Battery Backup Inverter; P10594 Emergency Test Remote
Power Cord 6-ft Factory-Installed Power Cord with Hanging Hook
Case Quantity 1 Fixture per Case
Documentation See spec sheet.
