NATURALED 9687 HBL150S/22FR/8C3-Z10 22-Inch 90/120/150W LED Linear Highbay 3500K/4000K/5000K 120-277V

Identification & Application

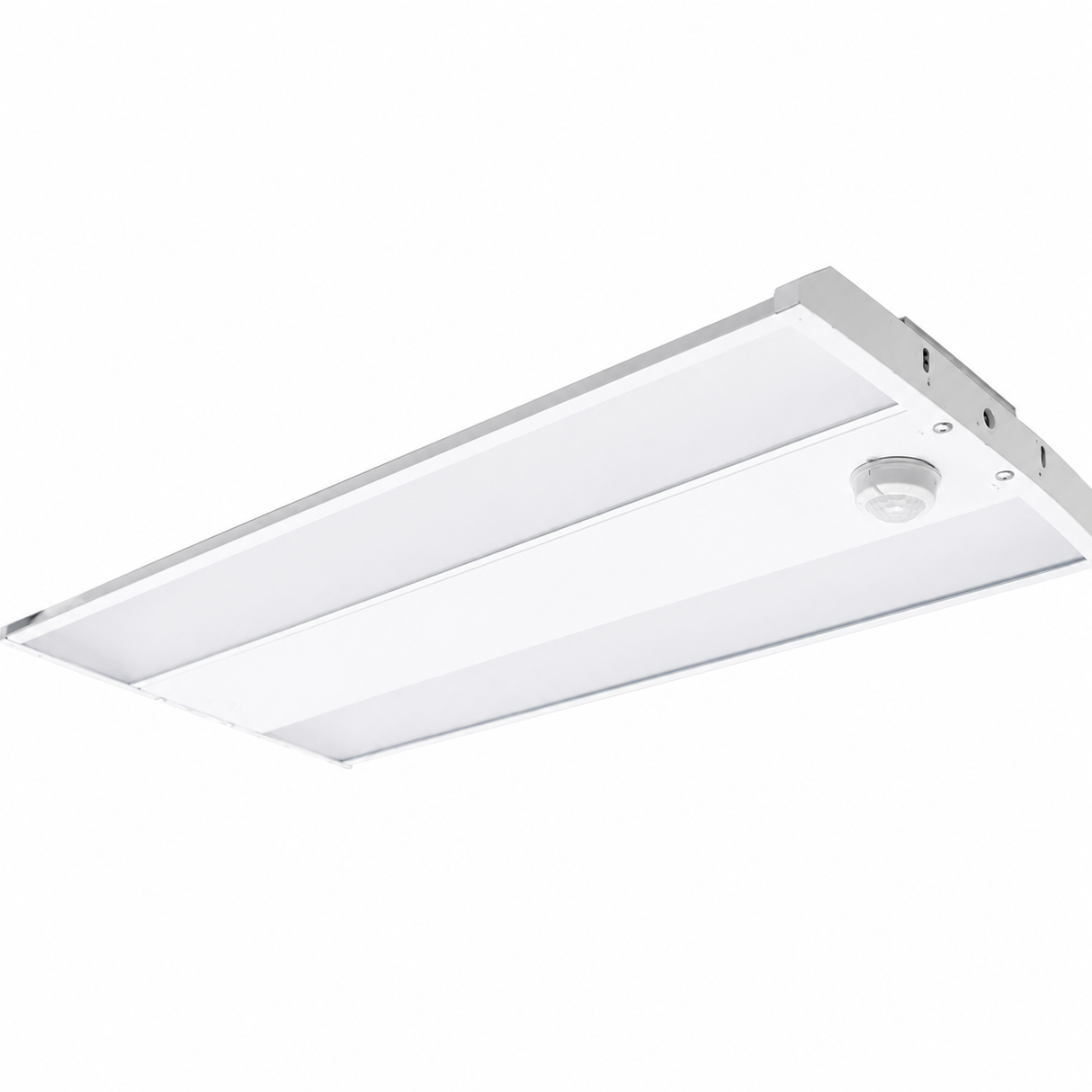

NaturaLED 9687 HBL150S/22FR/8C3-Z10 22-Inch 90/120/150W LED Linear Highbay 3500K/4000K/5000K 120-277V

The NaturaLED 9687 HBL150S/22FR/8C3-Z10 is a premium commercial LED Linear High Bay fixture engineered to provide powerful, energy-efficient illumination for warehouses, parking garages, factories, offices, hospitals, hotels, gymnasiums, schools, and other commercial or industrial facilities with high ceilings. Featuring field-selectable wattages of 90W, 120W, and 150W along with selectable color temperatures of 3500K, 4000K, and 5000K, this versatile fixture delivers selectable lumen outputs of 12,150, 16,200, or 20,250 lumens. Its advanced frosted polycarbonate semi-diffused lens produces a wide 100° beam angle that delivers bright, uniform illumination while minimizing glare for improved visual comfort and productivity.

Constructed with a durable die-formed steel housing finished in a white epoxy resin coating, the fixture is designed for dependable operation in demanding indoor environments. It operates on universal 120-277V input power and features smooth 0-10V dimming, integrated 6kV surge protection, and a factory-installed Z10 receptacle for plug-and-play field-installable controls including motion sensors, photocells, and Bluetooth controls. Two 3-foot hanging chains and a built-in bubble level are included for quick installation, while optional yoke mounts, pendant mounts, wire guards, emergency battery backup drivers, surge protectors, and remote-programmable sensors provide additional installation flexibility.

Designed for long-term commercial reliability, the NaturaLED 9687 is DLC Premium qualified, ETL/cETL Listed, and Damp Location rated. Rated for 50,000 hours of operation and backed by a 5-year limited manufacturer's warranty, this linear high bay delivers exceptional energy savings, low maintenance costs, and dependable illumination for both new construction and retrofit lighting projects.

Technical Performance Specifications
