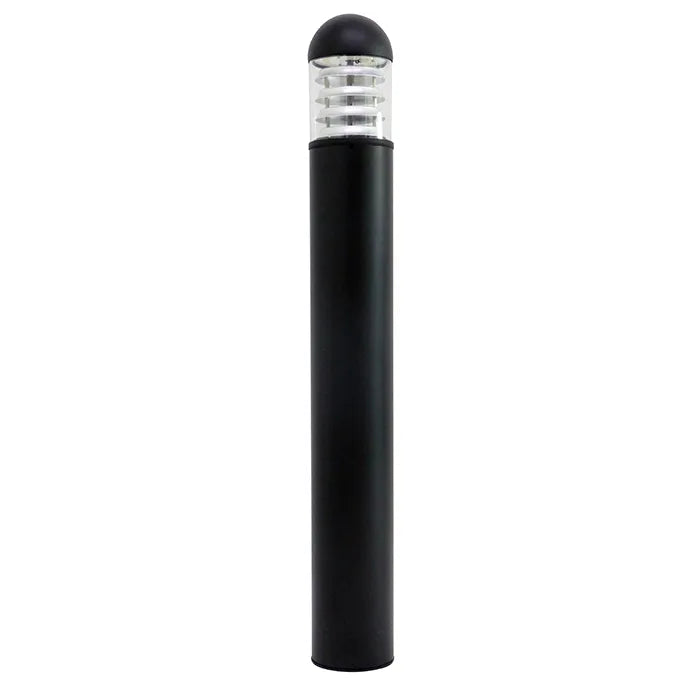

NATURALED 9700 FX5.5BLD18SW/32RLV/8CCT3/BK 10/15/18W 5.5x32-Inch Bollard Fixture Black Finish 3000K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9700 FX5.5BLD18SW/32RLV/8CCT3/BK 10/15/18W 5.5x32-Inch Bollard Fixture Black Finish 3000K/4000K/5000K 120-277V

The NaturaLED 9700 FX5.5BLD18SW/32RLV/8CCT3/BK is a premium commercial LED bollard fixture engineered to provide dependable, glare-controlled illumination for pathways, pedestrian walkways, parks, courtyards, campuses, building perimeters, entryways, landscape lighting, and security applications. Featuring field-selectable wattages of 10W, 15W, and 18W together with selectable color temperatures of 3000K, 4000K, and 5000K, this versatile bollard delivers selectable lumen outputs of 1,200, 1,800, or 2,160 lumens. The Round Louver Vertical (RLV) optical design provides uniform 360° illumination while minimizing glare for improved pedestrian comfort and visibility.

Constructed with a rugged die-cast aluminum housing finished in a corrosion-resistant black (RAL 9005) coating, the fixture is built for dependable long-term outdoor performance. The IP65-rated enclosure protects against dust and water intrusion while universal 120-277V operation, smooth 0-10V dimming, CRI greater than 80, and integrated 10kV surge protection ensure reliable operation in demanding environments. The 5.5-inch diameter housing makes it an ideal replacement for traditional bollard fixtures while providing up to 80% energy savings compared to metal halide systems.

Designed for commercial reliability, the NaturaLED 9700 is ETL/cETL Listed and IP65 rated. Rated for 50,000 hours of operation and backed by a 5-year manufacturer's warranty, this architectural bollard delivers outstanding energy savings, reduced maintenance costs, and dependable outdoor lighting performance for both retrofit and new construction applications.

Technical Performance Specifications
