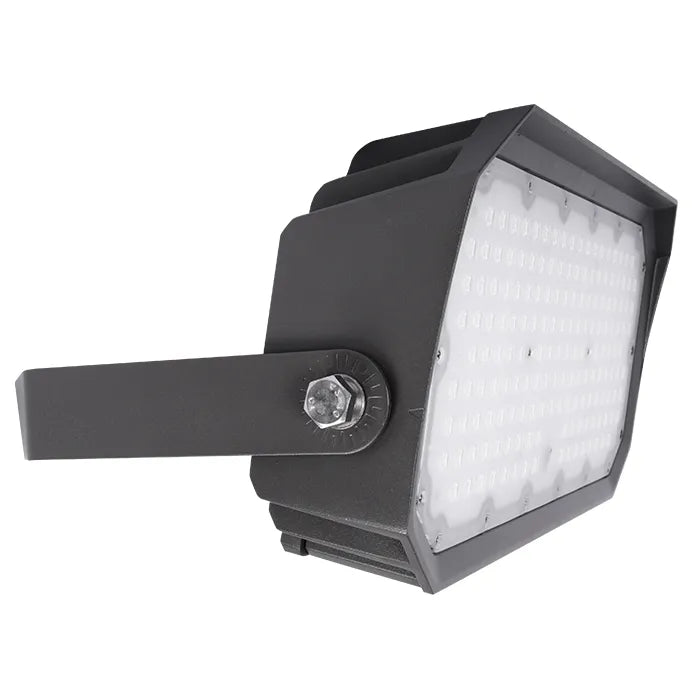

NATURALED 9701 FDL150S/76/8C3/BZ-YK 100/130/150W LED Flood Light Bronze Finish with Photocell and Yoke Mount 3000K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9701 FDL150S/76/8C3/BZ-YK 100/130/150W LED Flood Light Bronze Finish with Photocell and Yoke Mount 3000K/4000K/5000K 120-277V

The NaturaLED 9701 FDL150S/76/8C3/BZ-YK is a premium commercial LED flood light engineered to provide dependable, energy-efficient illumination for security lighting, architectural lighting, perimeter lighting, entryways, pathways, landscapes, retail centers, residential communities, parking areas, and building facades. Featuring field-selectable wattages of 100W, 130W, and 150W together with selectable color temperatures of 3000K, 4000K, and 5000K, this high-output fixture delivers selectable lumen outputs of 12,000, 16,900, or 19,205 lumens. Its NEMA 7x6 flood beam distribution provides broad, uniform illumination while replacing up to a 400W HID fixture.

Constructed with a rugged die-cast aluminum housing finished in a corrosion-resistant bronze (RAL 8019) coating, the fixture is built for long-term outdoor performance. The IP65-rated and IK10-rated enclosure provides excellent protection against dust, water, and impact. Operating on universal 120-277V input power, the fixture features smooth 0-10V dimming, CRI greater than 80, integrated 6kV surge protection, and a factory-installed 1/2-inch stainless steel threaded yoke mount for secure installation. An optional photocell kit, slip fitter mount, and surge protection accessories provide additional installation flexibility.

Designed for commercial reliability, the NaturaLED 9701 is DLC Premium qualified, UL/cUL Listed, FCC compliant, and RoHS compliant. Rated for 50,000 hours of operation and backed by a 5-year manufacturer's warranty, this high-performance LED flood light delivers exceptional energy savings, reduced maintenance costs, and dependable outdoor lighting performance for both retrofit and new construction applications.

Technical Performance Specifications
