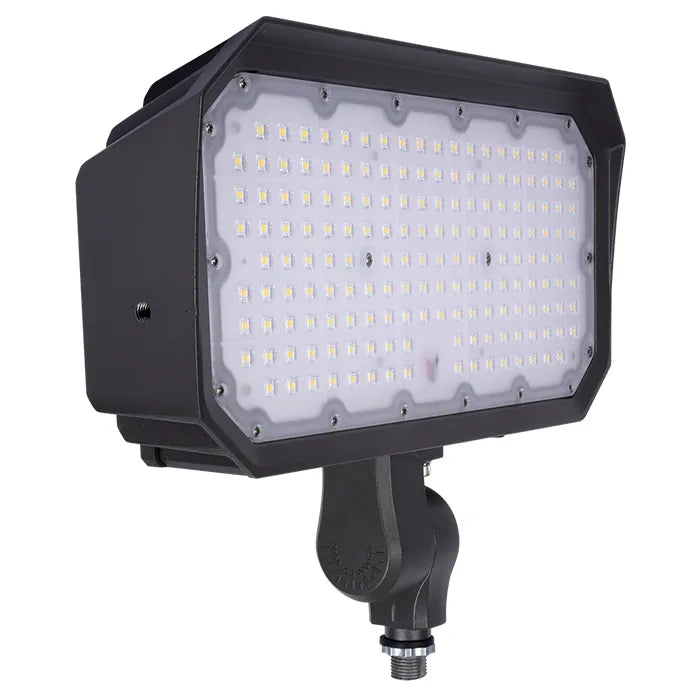

NATURALED 9702 FDL150S/76/8C3/BZ-KNC 100/130/150W LED Flood Light Bronze Finish with Photocell and 1/2-Inch Knuckle Mount 3000K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9702 FDL150S/76/8C3/BZ-KNC 100/130/150W LED Flood Light Bronze Finish with 1/2-Inch Knuckle Mount 3000K/4000K/5000K 120-277V

The NaturaLED 9702 FDL150S/76/8C3/BZ-KNC is a premium commercial LED flood light engineered to provide dependable, energy-efficient illumination for security lighting, architectural lighting, perimeter lighting, entryways, pathways, landscapes, retail centers, residential communities, parking areas, and building facades. Featuring field-selectable wattages of 100W, 130W, and 150W together with selectable color temperatures of 3000K, 4000K, and 5000K, this high-output fixture delivers selectable lumen outputs of 12,000, 16,900, or 19,205 lumens. Its NEMA 7x6 flood beam distribution provides broad, uniform illumination while replacing up to a 400W HID fixture.

Constructed with a rugged die-cast aluminum housing finished in a corrosion-resistant bronze (RAL 8019) coating, the fixture is built for long-term outdoor performance. The IP65-rated and IK10-rated enclosure provides excellent protection against dust, water, and impact. Operating on universal 120-277V input power, the fixture features smooth 0-10V dimming, CRI greater than 80, integrated 6kV surge protection, and a factory-installed 1/2-inch stainless steel threaded knuckle mount for secure installation. Optional accessories include a twist-lock photocell kit, slip fitter mount, and 10kV or 20kV surge protectors.

Designed for commercial reliability, the NaturaLED 9702 is DLC Premium qualified, UL/cUL Listed, FCC compliant, RoHS compliant, and IP65 rated. Rated for 50,000 hours of operation and backed by a 5-year manufacturer's warranty, this high-performance LED flood light delivers exceptional energy savings, reduced maintenance costs, and dependable outdoor lighting performance for both retrofit and new construction applications.

Technical Performance Specifications
