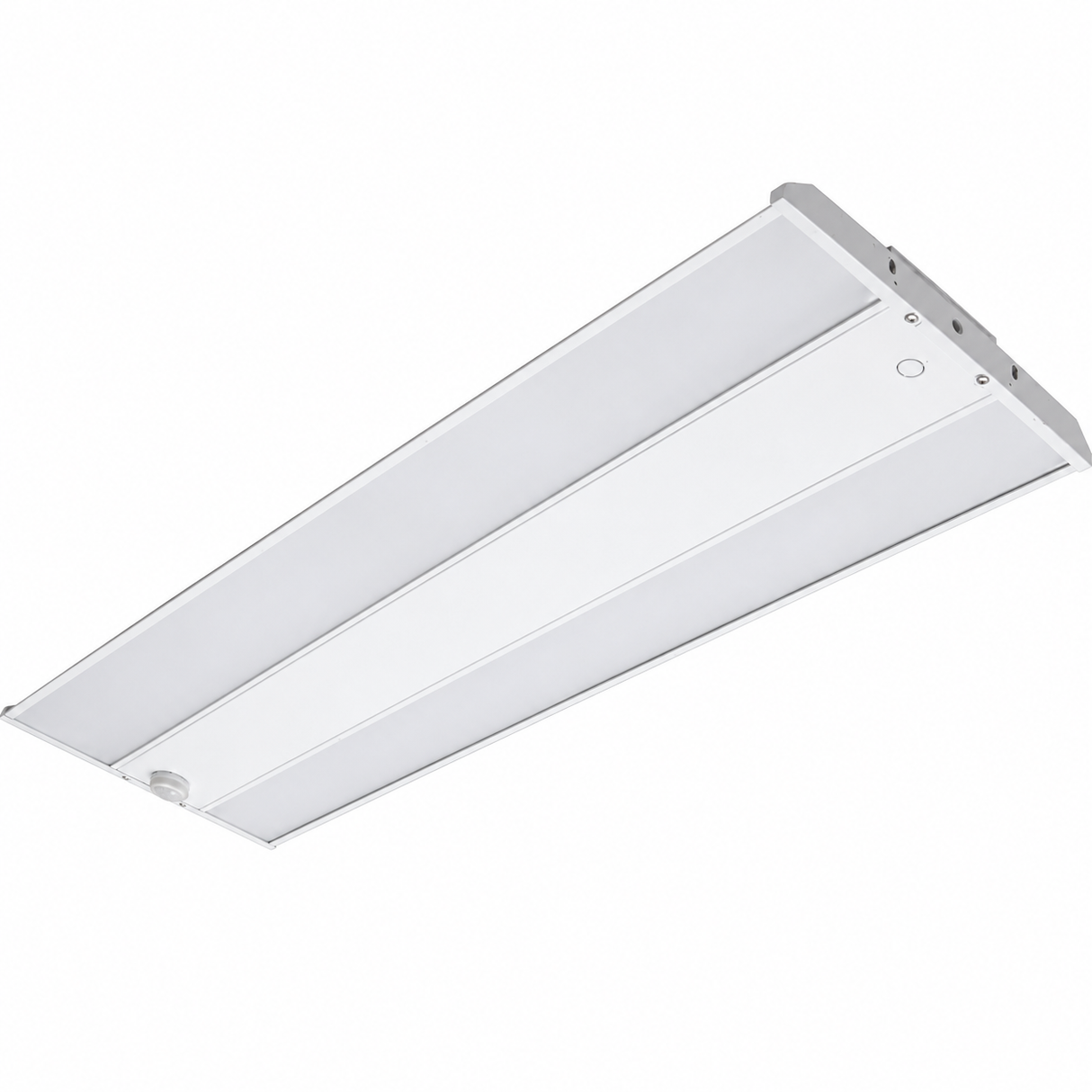

NATURALED 9704 HBL300S/44FR/8C3/480-Z10 44-Inch 150/240/300W LED Linear Highbay 3500K/4000K/5000K 277-480V

Identification & Application

NaturaLED 9704 HBL300S/44FR/8C3/480-Z10 44-Inch 150/240/300W LED Linear High Bay 3500K/4000K/5000K 277-480V

The NaturaLED 9704 HBL300S/44FR/8C3/480-Z10 is a premium commercial LED Linear High Bay fixture engineered to deliver powerful, energy-efficient illumination for warehouses, parking garages, factories, offices, hospitals, hotels, gymnasiums, schools, and other commercial or industrial facilities with high ceilings. Featuring field-selectable wattages of 150W, 240W, and 300W along with selectable color temperatures of 3500K, 4000K, and 5000K, this versatile fixture delivers selectable lumen outputs of 20,250, 32,400, or 40,500 lumens while replacing traditional 575W to 1000W HID high bay fixtures. Its advanced frosted polycarbonate semi-diffused lens produces a wide 100° beam angle that delivers bright, uniform illumination while minimizing glare for improved visual comfort and productivity.

Constructed with a durable die-formed steel housing finished in a white epoxy resin coating, the fixture is designed for dependable operation in demanding commercial and industrial environments. It operates on 277-480V input power and features smooth 0-10V dimming, integrated 6kV surge protection, a factory-installed Z10 receptacle for plug-and-play field-installable controls including motion sensors, photocells, and Bluetooth controls. Two 3-foot hanging chains and a built-in bubble level are included for quick installation, while optional yoke mounts, pendant mounts, wire guards, emergency battery backup drivers, surge protectors, and remote-programmable sensors provide exceptional installation flexibility for both new construction and retrofit projects.

Designed for long-term commercial reliability, the NaturaLED 9704 is DLC Premium qualified, ETL/cETL Listed, and Damp Location rated. Rated for 50,000 hours of operation and backed by a 5-year limited manufacturer's warranty, this linear high bay delivers outstanding energy savings, reduced maintenance costs, and dependable illumination for demanding commercial and industrial lighting applications.

Technical Performance Specifications
