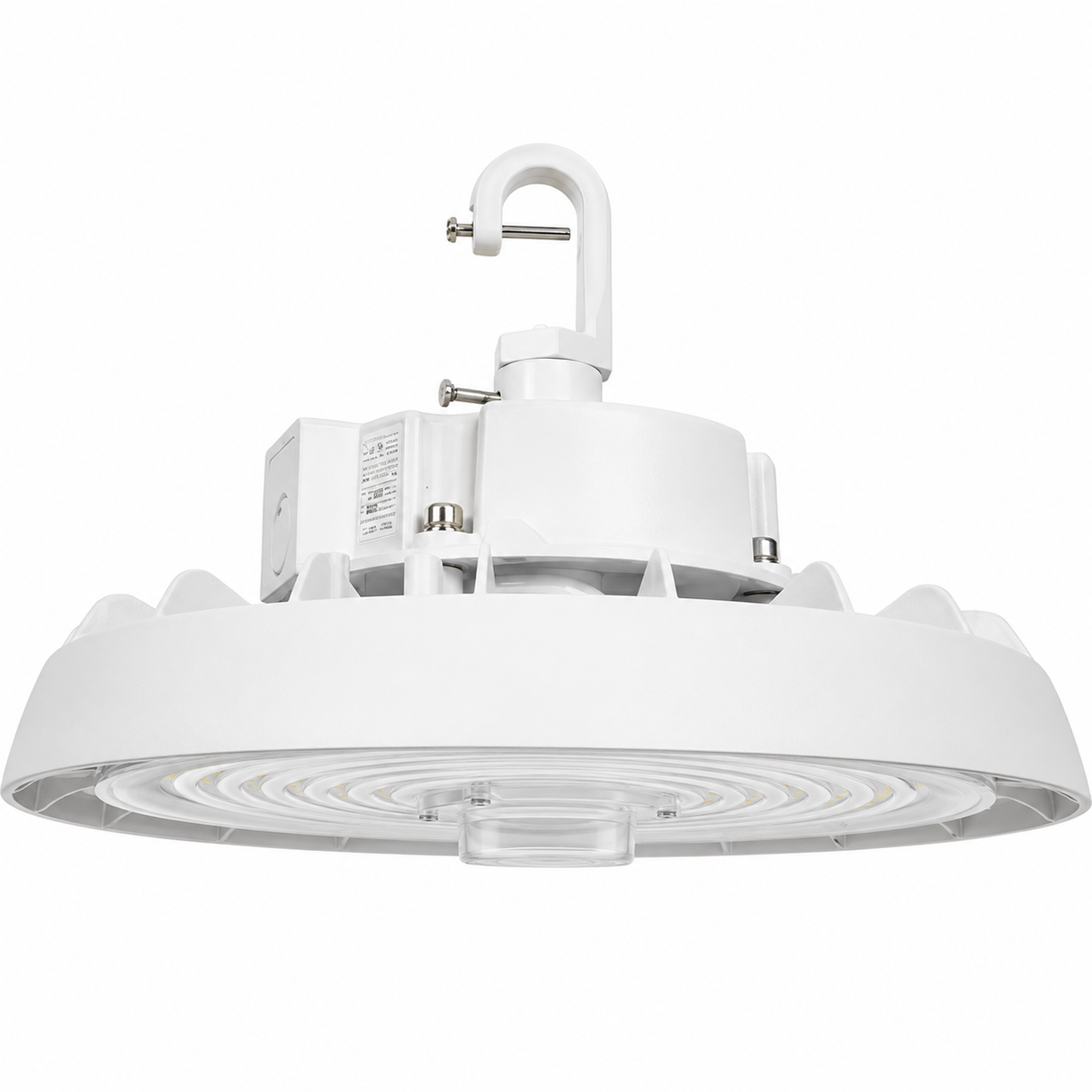

NATURALED 9705 HBR13/240S/110/8C2/WH-Z10 150/200/240W LED Round Highbay White Finish 4000K/5000K 120-277V

Identification & Application

NaturaLED 9705 HBR13/240S/110/8C2/WH-Z10 150/200/240W LED Round High Bay White Finish 4000K/5000K 120-277V

The NaturaLED 9705 HBR13/240S/110/8C2/WH-Z10 is a premium commercial LED Round High Bay fixture engineered to deliver powerful, energy-efficient illumination for warehouses, manufacturing facilities, distribution centers, gymnasiums, retail stores, and other high-ceiling commercial and industrial applications. Featuring field-selectable wattages of 150W, 200W, and 240W along with selectable color temperatures of 4000K and 5000K, this versatile fixture produces selectable lumen outputs of 21,000, 28,742, or 33,987 lumens while replacing traditional 575W to 1000W HID and fluorescent high bay fixtures. Its wide 110° beam angle and CRI greater than 80 provide bright, uniform illumination for improved visibility and productivity.

Constructed from durable die-cast aluminum with a corrosion-resistant white powder-coated finish, this 13-inch high bay is IP66 rated for protection against dust and water while carrying ETL, ETL Sanitation, and DLC Premium certifications for demanding commercial environments. The fixture operates on universal 120-277V input power and features smooth 0-10V dimming, integrated 6kV surge protection, a pre-installed Z10 receptacle for plug-and-play lighting controls, and a factory-installed 6-foot power cord with hanging hook for quick installation. The integrated Z10 receptacle allows future upgrades with compatible motion sensors, photocells, and other smart lighting controls without replacing the fixture.

Built for dependable long-term performance, the NaturaLED 9705 is rated for 50,000 hours of service life and backed by a 5-year manufacturer's warranty. Designed for mounting heights between 12 and 25 feet, this LED round high bay delivers outstanding energy savings, reduced maintenance costs, and reliable illumination for demanding commercial and industrial lighting applications.

Technical Performance Specifications
