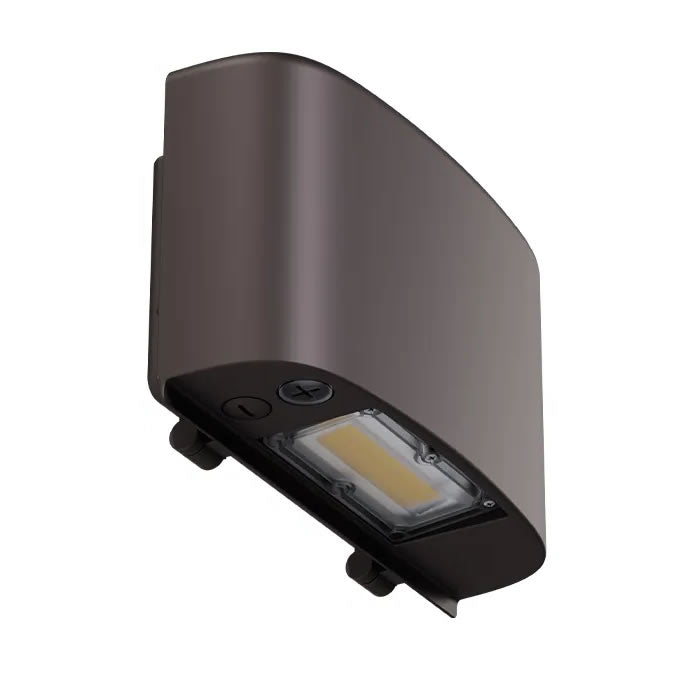

NATURALED 9706 CWX40S/8C3/BZ-PHO 15/28/40W LED Full Cut-Off Compact Wall Pack Bronze Finish with Photocell 3000K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9706 CWX40S/8C3/BZ-PHO 15/28/40W LED Full Cut-Off Compact Wall Pack Bronze Finish with Photocell 3000K/4000K/5000K 120-277V

The NaturaLED 9706 CWX40S/8C3/BZ-PHO is a premium commercial LED Full Cut-Off Compact Wall Pack engineered to provide dependable, energy-efficient outdoor illumination for security lighting, pathways, perimeter lighting, entryways, loading areas, parking lots, driveways, and building facades. Featuring field-selectable wattages of 15W, 28W, and 40W along with selectable color temperatures of 3000K, 4000K, and 5000K, this versatile fixture delivers selectable lumen outputs of 2,600, 3,640, or 5,200 lumens. Its full cut-off optical design minimizes uplight and glare while providing efficient downward illumination that complies with dark-sky friendly lighting practices.

Constructed with a rugged die-cast aluminum housing finished in a corrosion-resistant bronze powder coating, the fixture is built for dependable long-term outdoor performance. A durable borosilicate glass lens protects the LEDs while the IP65-rated enclosure provides excellent resistance against dust and water. The fixture operates on universal 120-277V input power and features smooth 0-10V dimming, integrated 4kV surge protection, a CRI greater than 80, and a built-in dusk-to-dawn photocell for automatic operation. Optional accessories include microwave motion sensors, Z10 receptacles, emergency backup drivers, remote programmers, and surge protection devices for expanded lighting control capabilities.

Designed for commercial reliability, the NaturaLED 9706 is DLC Premium qualified, ETL/cETL Listed, FCC compliant, and RoHS compliant. Rated for 50,000 hours of operation and backed by a 5-year manufacturer's warranty, this compact full cut-off wall pack provides exceptional energy savings, reduced maintenance costs, and dependable outdoor lighting performance for both retrofit and new construction applications.

Technical Performance Specifications
