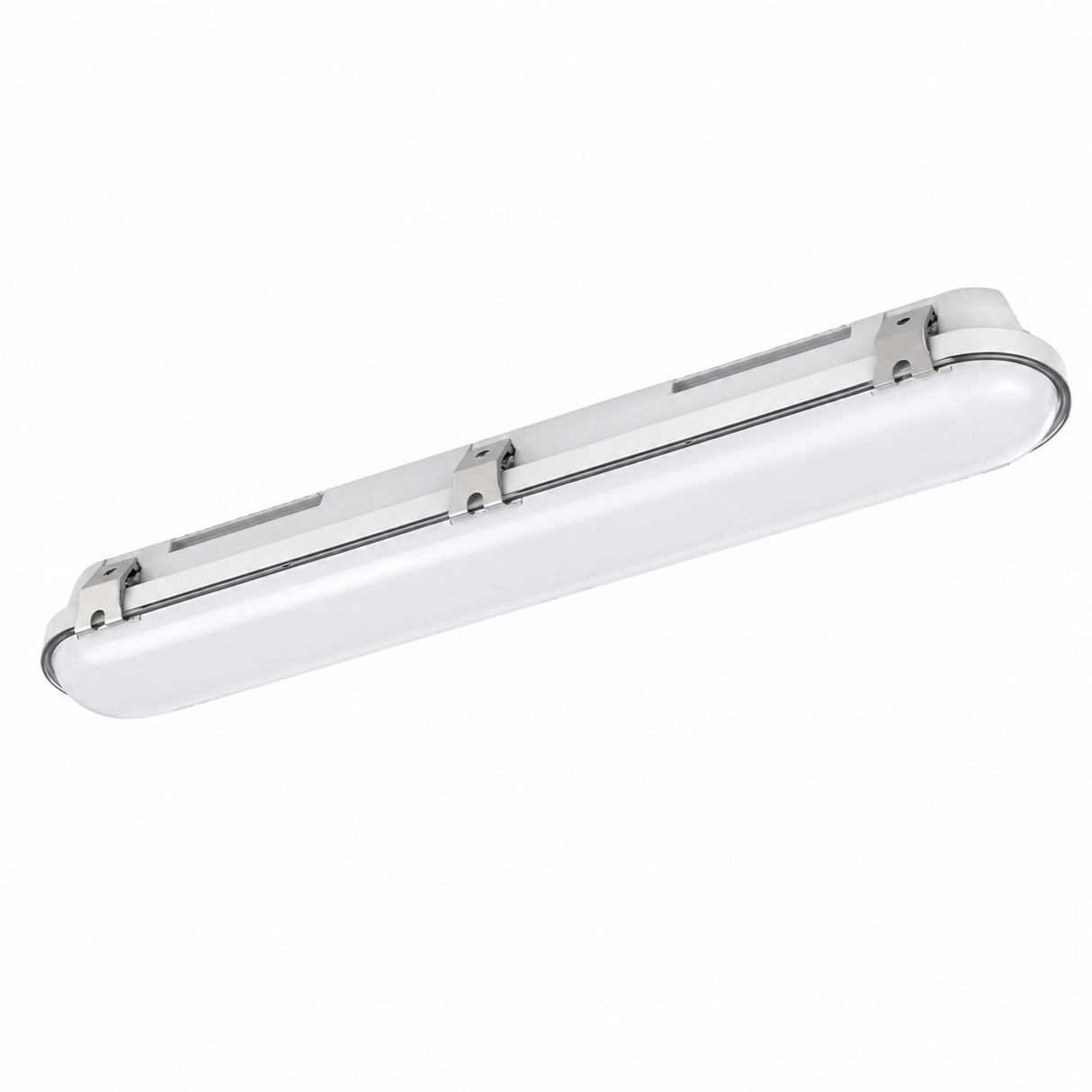

NATURALED 9709 VTL4/25S/24FR/8C3 15/20/25W LED 2ft Linear Vapor Tight Fixture 3500K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9709 VTL4/25S/24FR/8C3 15/20/25W LED 2ft Linear Vapor Tight Fixture 3500K/4000K/5000K 120-277V

The NaturaLED 9709 VTL4/25S/24FR/8C3 is a commercial-grade 2-foot LED linear vapor tight fixture featuring selectable wattages (15W, 20W, and 25W) and three selectable color temperatures (3500K, 4000K, and 5000K). Delivering up to 3,625 lumens with a CRI greater than 80, wide 120° beam angle, and IP65-rated construction, it provides reliable illumination for parking structures, warehouses, schools, healthcare facilities, tunnels, stairwells, car washes, storage facilities, and other demanding commercial environments.

Designed to operate on 120-277V, this vapor tight fixture features 0-10V dimming, integrated 4kV surge protection, and field-selectable wattage and color temperature settings for maximum installation flexibility. The lightweight polycarbonate housing incorporates a silicone perimeter gasket with stainless steel clips and hasps, providing NEMA 4X protection for dependable performance in wet, dusty, and corrosive environments.

Rated for 50,000 hours of service life, this fixture is ETL Listed, ETL Sanitation Listed, DLC Standard Listed, IP65 Rated, and backed by a 5-year warranty. Optional accessories include microwave motion sensors, emergency drivers, remote programmers, angle mounting brackets, and surge protectors for expanded installation flexibility.

Technical Performance Specifications
