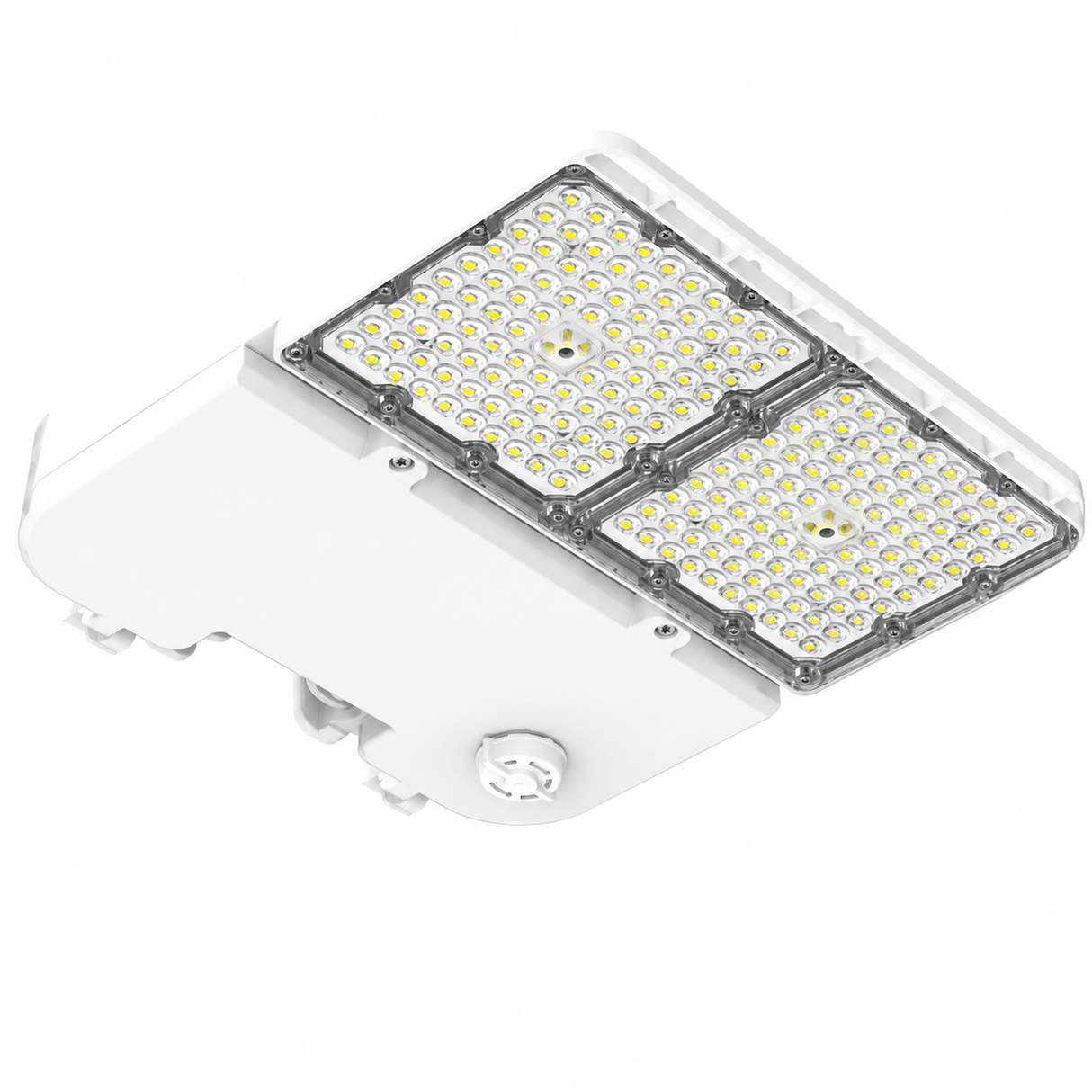

NATURALED 9716 SAL75S/T3/8C3/WH-Z10 25/42/50/75W LED Slim Area Light White Finish 3000K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9716 SAL75S/T3/8C3/WH-Z10 25/42/50/75W LED Slim Area Light White Finish 3000K/4000K/5000K 120-277V

The NaturaLED 9716 SAL75S/T3/8C3/WH-Z10 is a premium LED slim area light designed to provide efficient, uniform illumination for parking lots, roadways, pathways, perimeter lighting, security lighting, commercial properties, campuses, building exteriors, and sign lighting. Featuring field-selectable wattages of 25W, 42W, 50W, and 75W along with selectable color temperatures of 3000K, 4000K, and 5000K, this versatile fixture delivers selectable lumen outputs of 3,500, 5,880, 7,000, or 10,555 lumens. The integrated Type III distribution provides excellent forward light projection for area and roadway lighting applications.

Constructed with a rugged die-cast aluminum housing finished in a durable white powder coating, the fixture is engineered for long-lasting outdoor performance. The UV-resistant polycarbonate lens, IP66 weatherproof rating, and integrated 20kV surge protection provide reliable operation in harsh environments. Operating on universal 120-277V input power, the fixture includes smooth 0-10V dimming, CRI greater than 80, a pre-installed Z10 receptacle for plug-and-play lighting controls, and supports photocell and motion sensor accessories for additional energy savings. Multiple mounting options including pole mount, slip fitter, wall mount, and yoke mount provide exceptional installation flexibility.

Designed for demanding commercial and municipal lighting applications, the NaturaLED 9716 is DLC Premium qualified, ETL/cETL Listed, FCC compliant, RoHS compliant, and rated for over 100,000 hours (L70) of operation. Backed by a 7-year limited manufacturer's warranty, this high-efficiency LED area light delivers exceptional energy savings while significantly reducing maintenance costs compared to traditional HID lighting systems.

Technical Performance Specifications
