NATURALED 9736 CSL2/23S/24FR/8C3 15/19/23W 2ft LED Commercial Strip Light Fixture 3500K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9736 CSL2/23S/24FR/8C3 15/19/23W 2ft LED Commercial Strip Light Fixture 3500K/4000K/5000K 120-277V

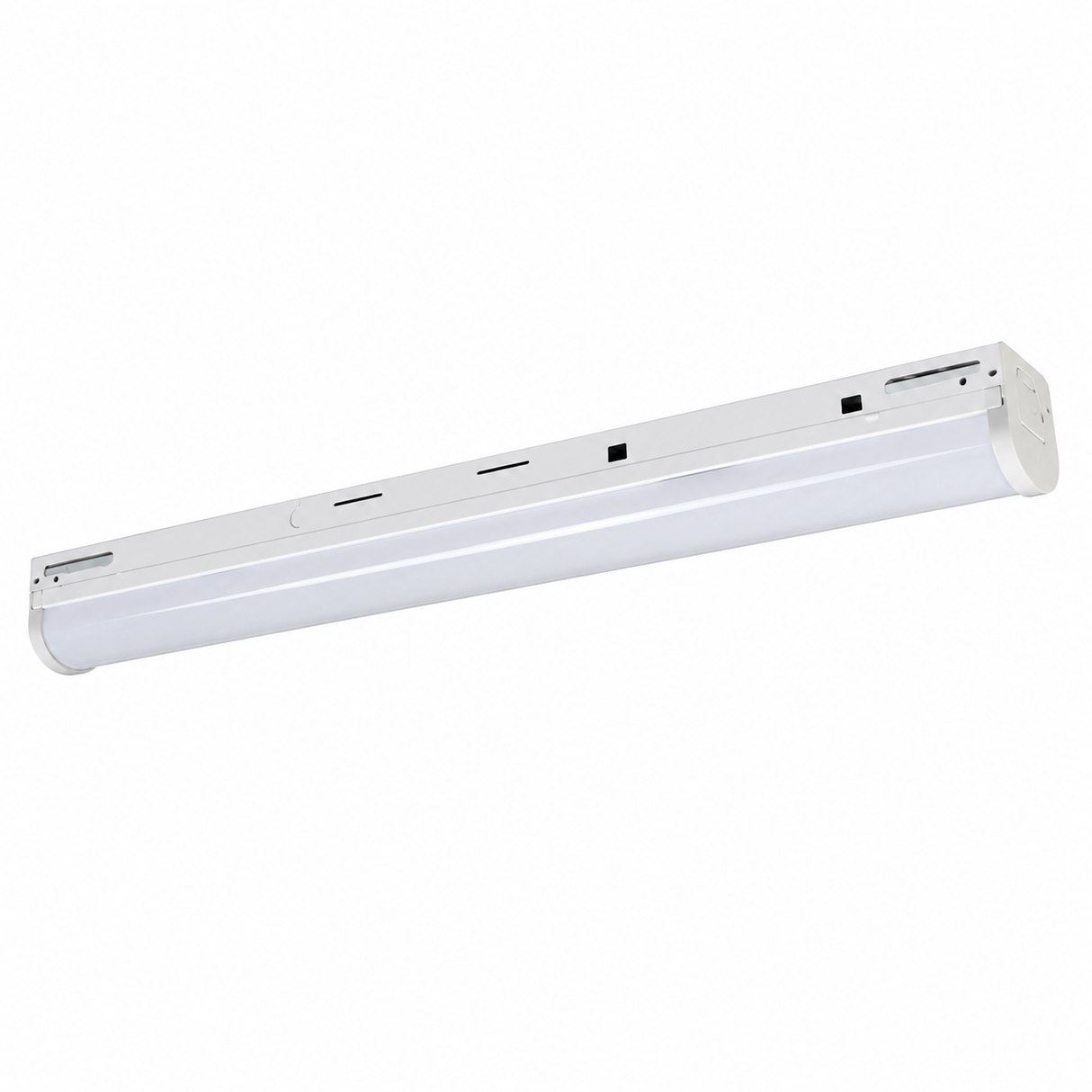

The NaturaLED 9736 CSL2/23S/24FR/8C3 is a commercial-grade 2-foot LED strip light fixture featuring selectable wattages (15W, 19W, and 23W) and three selectable color temperatures (3500K, 4000K, and 5000K). Delivering up to 2,990 lumens with a CRI greater than 80 and a wide 120° beam angle, it provides bright, uniform illumination for warehouses, retail stores, parking garages, stairwells, hallways, storage areas, utility spaces, and commercial facilities.

Designed to operate on 120-277V, this LED strip fixture features 0-10V dimming, integrated 2kV surge protection, and convenient wattage and color temperature selection for maximum installation flexibility. The durable steel housing is finished with a white epoxy resin coating and paired with a diffused polycarbonate lens that provides glare-free light distribution. It includes a surface mount J-box cover plate and supports optional suspended cable mounting. The standard model is compatible with an optional microwave occupancy sensor.

Rated for L70 >100,000 hours, this fixture is ETL/cETL Listed, DLC Standard Listed, suitable for damp locations, and backed by a 5-year limited warranty. Optional accessories include emergency battery backup drivers, microwave motion sensors, remote programmers, hanging kits, wire guards, and surge protectors for expanded installation flexibility.

Technical Performance Specifications
