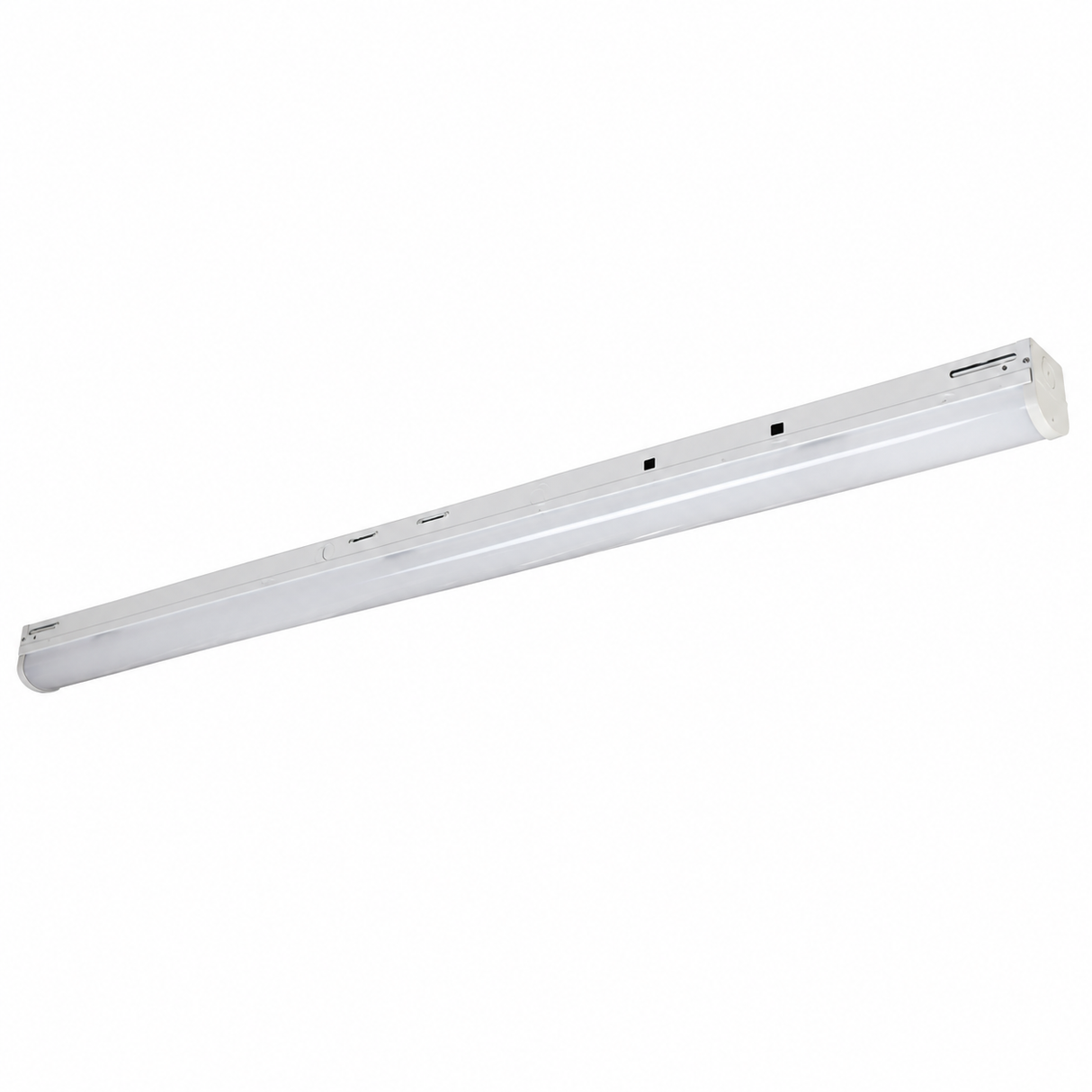

NATURALED 9740 CSL2/40S/48FR/8C3-PIC1 28/34/40W 4ft LED Commercial Strip Light Fixture 3500K/4000K/5000K Sensor Ready 120-277V

Identification & Application

NaturaLED 9740 CSL2/40S/48FR/8C3-PIC1 28/34/40W 4ft LED Commercial Strip Light Fixture 3500K/4000K/5000K Sensor Ready 120-277V

The NaturaLED 9740 CSL2/40S/48FR/8C3-PIC1 is a commercial-grade 4-foot LED strip light fixture featuring selectable wattages (28W, 34W, and 40W), three selectable color temperatures (3500K, 4000K, and 5000K), and an integrated PIC (Plug-In Connector) sensor-ready design for fast installation of an optional PIR occupancy sensor. Delivering up to 5,400 lumens with a CRI greater than 80 and a wide 120° beam angle, it provides bright, uniform illumination for warehouses, retail stores, parking garages, stairwells, offices, hallways, storage rooms, utility spaces, and other commercial or industrial applications.

Designed to operate on 120-277V, this fixture features 0-10V dimming, integrated 2kV surge protection, and convenient field-selectable wattage and color temperature switches for maximum installation flexibility. The durable sheet steel housing is finished with a white epoxy resin coating and paired with a diffused polycarbonate lens that provides smooth, glare-free illumination. A surface mount J-box cover plate is included, while optional suspended cable mounting is also supported. The factory-installed PIC connector allows quick installation of the optional P10616 PIR motion sensor without requiring fixture disassembly.

Rated for 50,000 hours of service life (L70 >100,000 hours), this fixture is ETL/cETL Listed, DLC Standard Listed, suitable for damp locations, and backed by a 5-year limited warranty. Optional accessories include emergency battery backup drivers, PIR motion sensors, remote programmers, hanging kits, wire guards, and surge protectors for expanded installation flexibility.

Technical Performance Specifications
