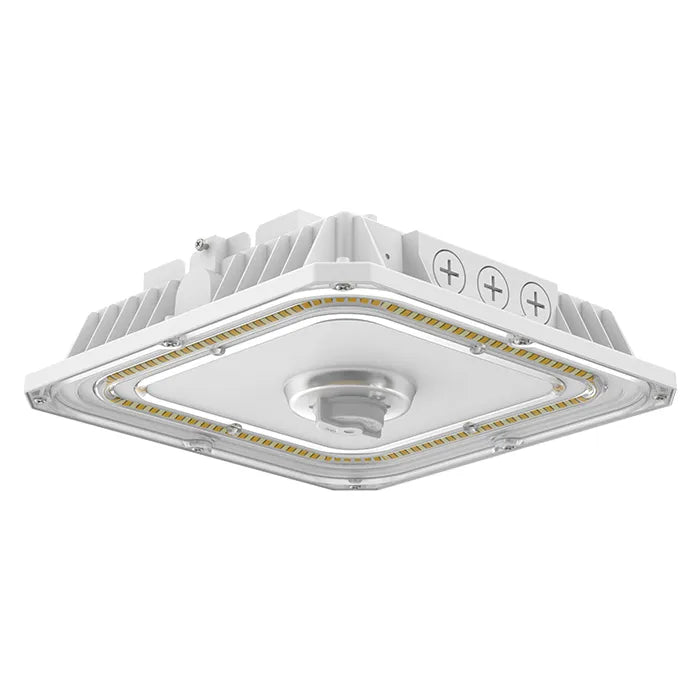

NATURALED 9743 SCM10/100S/8C3/WH-Z10 40-60-80-100W 10-Inch LED Slim Canopy Fixture White Finish 3000K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9743 SCM10/100S/8C3/WH-Z10 40-60-80-100W 10-Inch LED Slim Canopy Fixture White Finish 3000K/4000K/5000K 120-277V

The NaturaLED 9743 SCM10/100S/8C3/WH-Z10 is a field-selectable 10-inch LED slim canopy fixture designed for parking garages, parking canopies, warehouses, offices, factories, hospitals, hotels, and other commercial lighting applications. It features selectable wattages of 40W, 60W, 80W, or 100W, selectable color temperatures of 3000K, 4000K, or 5000K, and Z10 sensor-ready controls for easy integration with optional motion and photocell sensors.

Built with a rugged die-cast aluminum housing and shatter-resistant polycarbonate prismatic lens, this slim canopy fixture offers excellent durability while maintaining a low-profile appearance. The fixture supports direct surface or pendant mounting, includes integrated uplight, provides 0-10V dimming, 6kV surge protection, and delivers reliable performance in demanding indoor and outdoor environments.

Producing up to 15,754 lumens while replacing up to a 400W HID fixture, this canopy operates on 120-277V power, is DLC Premium qualified, IP65 rated, ETL/cETL listed, and backed by a 5-year limited warranty.

Technical Performance Specifications
