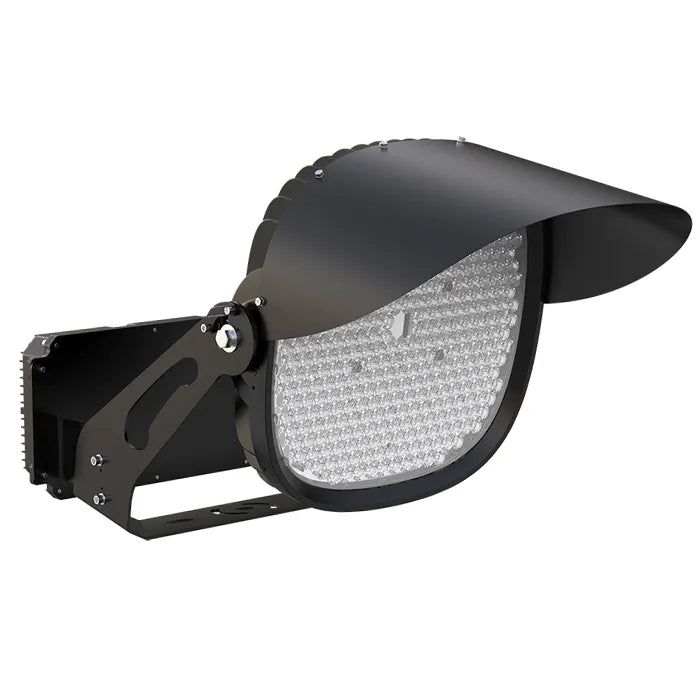

NATURALED 9745 SPL17/800S/33/750/BK 600/700/800W LED Stadium Light Fixture Nema 3x3 Lens Beam Angle Black Finish 5000K 120-277V

Identification & Application

NaturaLED 9745 SPL17/800S/33/750/BK 600/700/800W LED Stadium Light Fixture NEMA 3x3 Beam Angle Black Finish 5000K 120-277V

The NaturaLED 9745 SPL17/800S/33/750/BK is a premium high-output LED stadium light engineered to provide powerful, uniform illumination for stadiums, athletic fields, parks, universities, recreation centers, municipal facilities, and other large outdoor sports venues. Featuring field-selectable wattages of 600W, 700W, and 800W with a fixed 5000K daylight color temperature, this advanced sports lighting fixture delivers selectable lumen outputs of 90,000, 105,000, or 120,000 lumens. The precision-engineered NEMA 3x3 beam pattern provides exceptional long-distance light distribution for high-mast sports lighting installations.

Constructed with a rugged die-cast aluminum housing finished in a durable black powder coating, the fixture features a polycarbonate diffused lens, IP66 weatherproof protection, and IK08 impact resistance for reliable performance in demanding outdoor environments. Operating on universal 120-277V input power, the fixture includes smooth 0-10V dimming, CRI greater than 70, integrated 10kV surge protection, and comes complete with a mounting arm and glare shield. Designed for installation heights between 40 and 70 feet, the fixture provides superior illumination while minimizing glare for athletes and spectators.

Designed for professional sports lighting applications, the NaturaLED 9745 is DLC Premium qualified, UL Listed, FCC compliant, and RoHS compliant. Rated for 50,000 hours of operation and backed by a 5-year limited manufacturer's warranty, this high-performance LED stadium light delivers outstanding energy savings, reduced maintenance costs, and dependable lighting performance for both new construction and retrofit sports lighting projects.

Technical Performance Specifications
