NATURALED 9754 FXPNL40SW/2x2/8CCT3 20/30/40W 2x2ft LED Back-Lit Flat Panel Light 3500K/4000K/5000K 120-277V

$44.25
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 844366097546

Description

Identification & Application

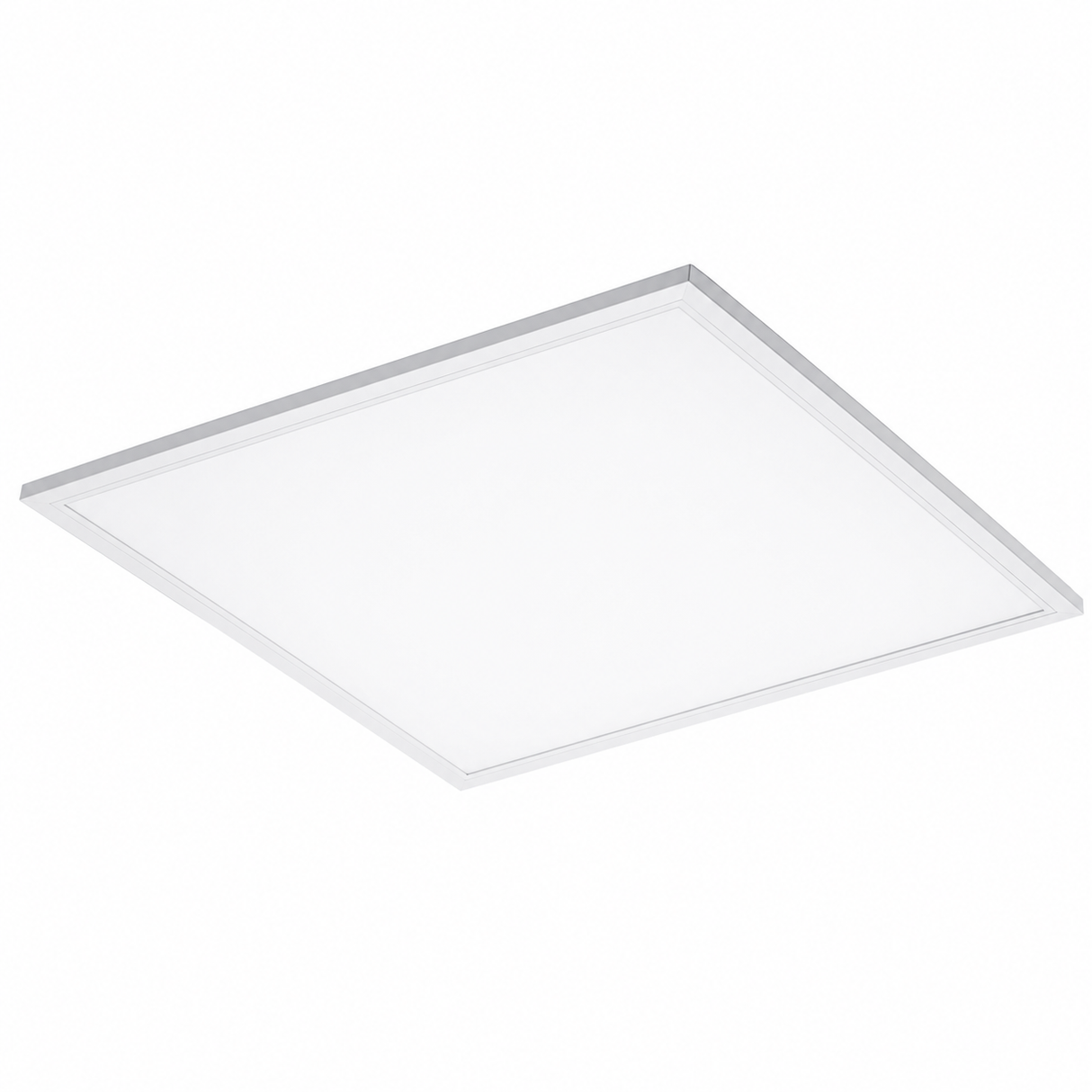

NaturaLED 9754 FXPNL40SW/2x2/8CCT3 20/30/40W 2x2ft LED Back-Lit Flat Panel Light 3500K/4000K/5000K 120-277V

The NaturaLED 9754 FXPNL40SW/2X2/8CCT3 is a premium 2x2ft LED back-lit flat panel light featuring selectable wattages (20W, 30W, and 40W) and three selectable color temperatures (3500K, 4000K, and 5000K). Delivering up to 4,400 lumens with a CRI greater than 80 and a wide 115° beam angle, it provides smooth, uniform edge-to-edge illumination for offices, conference rooms, meeting rooms, schools, hospitals, healthcare facilities, and other commercial interiors.

Designed to operate on 120-277V, this back-lit LED panel features 0-10V dimming with a 12V AUX output, integrated 2.5kV surge protection, and field-selectable wattage and color temperature switches that allow installers to customize light output on-site. The lightweight, low-profile housing installs easily into standard 2x2 T-bar grid ceilings and is compatible with optional surface mount boxes and flange mounting kits for additional installation flexibility.

Rated for 50,000 hours of service life, this flat panel is ETL/cETL Listed, DLC Standard Listed, suitable for damp locations, and backed by a 5-year warranty. Optional accessories include surface mount kits, flange mount kits, emergency drivers, battery backup inverters, and pre-installed earthquake hooks for expanded installation flexibility.

Technical Performance Specifications

Brand NaturaLED
SKU / MPN 9754 / FXPNL40SW/2X2/8CCT3
Product Type 2x2ft LED Back-Lit Flat Panel Light
Electrical Selectable 20W / 30W / 40W • 120-277V • 50/60Hz • 0-10V Dimmable with 12V AUX • Power Factor >0.9 • 2.5kV Surge Protection
Optical 2,200 / 3,300 / 4,400 Lumens • 3500K / 4000K / 5000K Selectable • CRI >80 • 115° Beam Angle • Up to 110 lm/W
Equivalent Wattage Replaces 90W–100W Fluorescent Flat Panel Fixtures
Mounting Recessed T-Bar/Grid Ceiling • Optional Surface Mount Box • Optional Flange Mount Kit
Mechanical Low-Profile Lightweight Housing • Uniform Edge-to-Edge Illumination • ETL/cETL Listed • DLC Standard Listed • Damp Location Rated
Dimensions 23.7 in. Length × 23.7 in. Width × 1.40 in. Height
Operating Temperature -4°F to 104°F
Lifecycle 50,000 Hours • 5-Year Warranty
Applications Conference rooms, meeting rooms, offices, schools, hospitals, healthcare facilities, educational buildings, commercial offices, retail stores, and hospitality environments.
Accessories Compatible with 2x2 Surface Mount Boxes (P10335, P10417, P10588), 2x2 Flange Mount Kit (P10228), 8W Emergency Driver (7346 BAEM8-PNL-50BC/MV-A), Emergency Driver Mount Kit (K7338332 FXPNL-BAEM-MT2FT-BLP-PK2), and Pre-installed Earthquake Hooks.
Case Quantity 2
Documentation See spec sheet.
