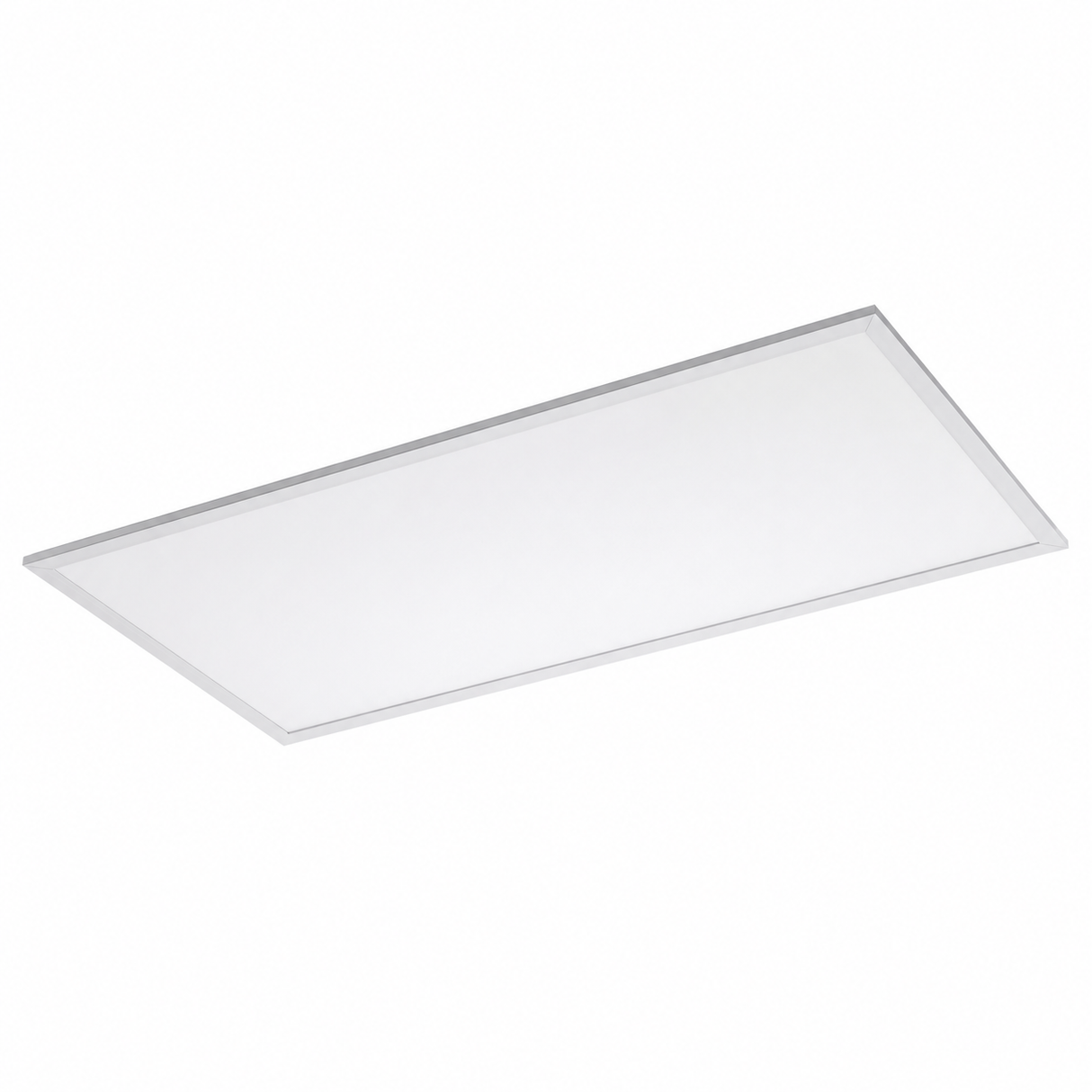

NATURALED 9755 FXPNL50SW/2X4/8CCT3 30/40/50W 2x4ft LED Back-Lit Flat Panel Light 3500K/4000K/5000K 120-277V

$58.45
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 844366097553

Description

Identification & Application

NaturaLED 9755 FXPNL50SW/2X4/8CCT3 30/40/50W 2x4ft LED Back-Lit Flat Panel Light 3500K/4000K/5000K 120-277V

The NaturaLED 9755 FXPNL50SW/2X4/8CCT3 is a premium 2x4ft LED back-lit flat panel light featuring selectable wattages (30W, 40W, and 50W) and three selectable color temperatures (3500K, 4000K, and 5000K). Delivering up to 5,500 lumens with a CRI greater than 80 and a wide 115° beam angle, it provides smooth, uniform edge-to-edge illumination for offices, conference rooms, schools, hospitals, healthcare facilities, retail spaces, and other commercial interiors.

Designed to operate on 120-277V, this back-lit LED panel features 0-10V dimming with a 12V AUX output, integrated 2.5kV surge protection, and field-selectable wattage and color temperature switches for maximum installation flexibility. The lightweight, low-profile housing installs easily into standard 2x4 T-bar grid ceilings and is also compatible with optional surface mount boxes and flange mounting kits for additional installation options.

Rated for 50,000 hours of service life, this flat panel is ETL/cETL Listed, DLC Standard Listed, suitable for damp locations, and backed by a 5-year warranty. Optional accessories include surface mount boxes, flange mount kits, emergency drivers, battery backup inverters, and pre-installed earthquake hooks for expanded installation flexibility.

Technical Performance Specifications

Brand NaturaLED
SKU / MPN 9755 / FXPNL50SW/2X4/8CCT3
Product Type 2x4ft LED Back-Lit Flat Panel Light
Electrical Selectable 30W / 40W / 50W • 120-277V • 50/60Hz • 0-10V Dimmable with 12V AUX • Power Factor >0.9 • 2.5kV Surge Protection
Optical 3,300 / 4,400 / 5,500 Lumens • 3500K / 4000K / 5000K Selectable • CRI >80 • 115° Beam Angle • Up to 110 lm/W
Equivalent Wattage Replaces 128W Fluorescent Flat Panel Fixtures
Mounting Recessed T-Bar/Grid Ceiling • Optional Surface Mount Box • Optional Flange Mount Kit
Mechanical Low-Profile Lightweight Housing • Uniform Edge-to-Edge Illumination • ETL/cETL Listed • DLC Standard Listed • Damp Location Rated
Dimensions 47.7 in. Length × 23.7 in. Width × 1.40 in. Height
Operating Temperature -4°F to 104°F
Lifecycle 50,000 Hours • 5-Year Warranty
Applications Commercial offices, conference rooms, schools, hospitals, healthcare facilities, educational buildings, retail stores, hospitality environments, and other commercial indoor applications.
Accessories Compatible with 2x4 Surface Mount Boxes (P10336, P10418, P10589), 2x4 Flange Mount Kit (P10229), 8W Emergency Driver (7346 BAEM8-PNL-50BC/MV-A), Emergency Driver Mount Kit (K7338332 FXPNL-BAEM-MT2FT-BLP-PK2), and Pre-installed Earthquake Hooks.
Case Quantity 2
Documentation See spec sheet.
