NATURALED 9819 CWP40S/BS/8C3/WH-PHO 25-30-40W LED Full Cut-Off Wall Pack White Finish + Photocell 3000K/4000K/5000K 120-277V

Identification & Application

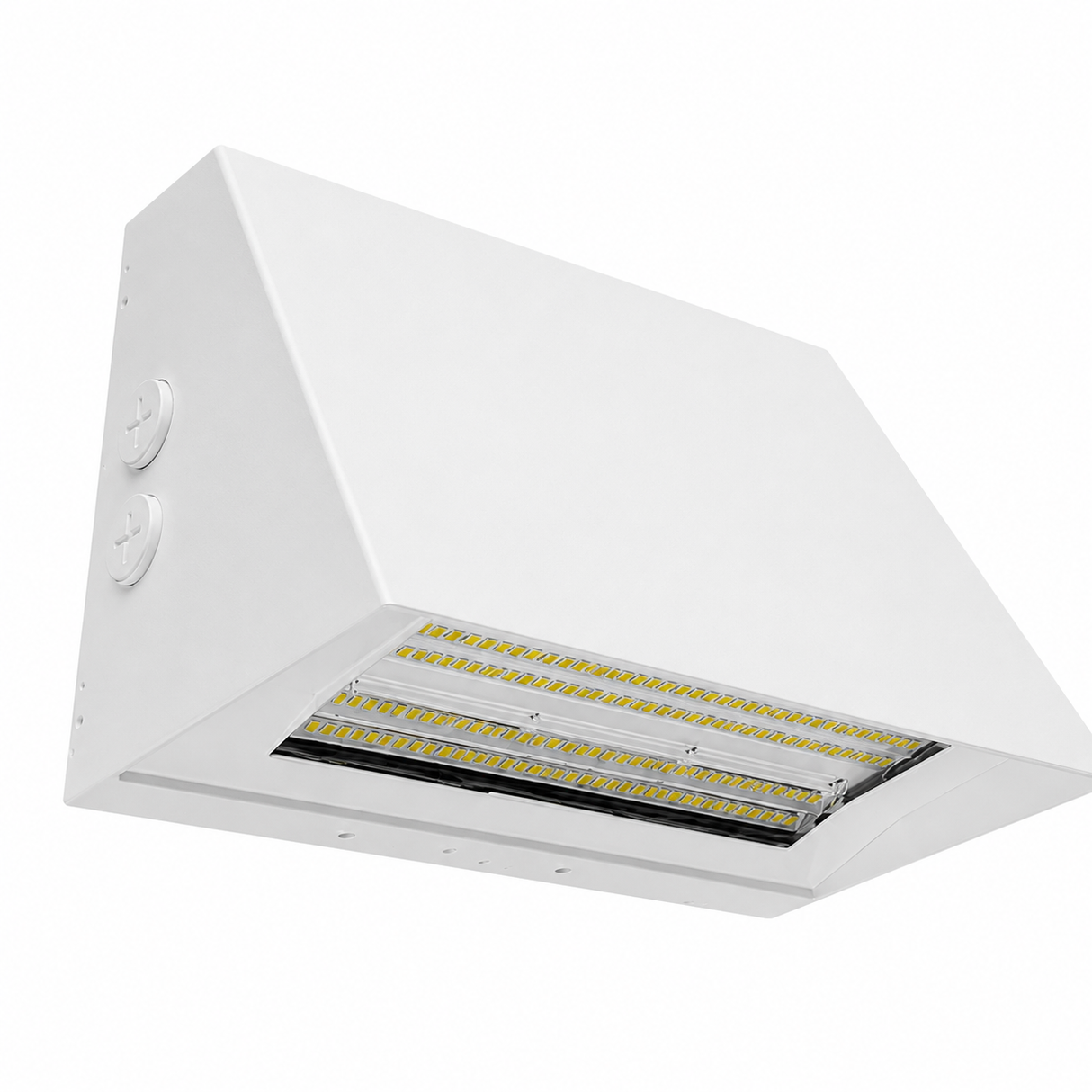

NaturaLED 9819 CWP40S/BS/8C3/WH-PHO 25-30-40W LED Full Cut-Off Wall Pack White Finish + Photocell 3000K/4000K/5000K 120-277V

The NaturaLED 9819 CWP40S/BS/8C3/WH-PHO is a field-selectable LED full cut-off wall pack designed for security, perimeter, entryway, pathway, area lighting, and building façade applications. It features selectable wattages of 25W, 30W, or 40W, selectable color temperatures of 3000K, 4000K, or 5000K, and an integrated dusk-to-dawn photocell for automatic operation.

Constructed with a rugged die-cast aluminum housing and durable white finish, this fixture is engineered for long-lasting outdoor performance. Adjustable beam angle settings (Short, Medium, and Long) provide flexible light distribution, while 0-10V dimming, DLC Premium qualification, IP65 weather resistance, IK08 impact protection, and 4kV surge protection make it ideal for demanding commercial and industrial environments.

Producing up to 5,600 lumens while replacing up to a 200W metal halide fixture, this wall pack operates on 120-277V power, includes a pre-installed AUX receptacle for an optional motion sensor, and is backed by a 5-year limited warranty.

Technical Performance Specifications
