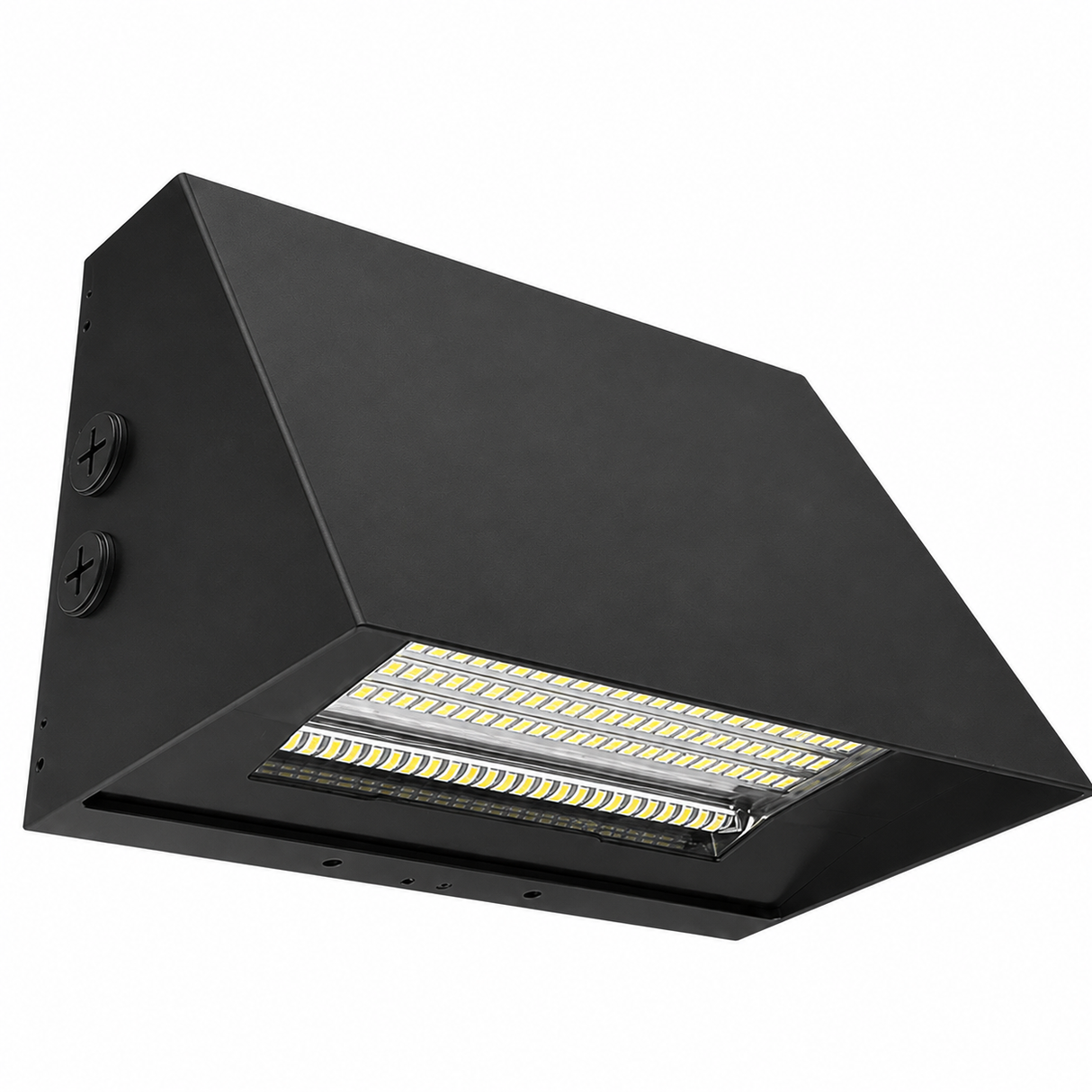

NATURALED 9823 CWP100S/BS/8C3/BK-PHO 60-80-100W LED Full Cut-Off Wall Pack Black Finish + Photocell 3000K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9823 CWP100S/BS/8C3/BK-PHO 60-80-100W LED Full Cut-Off Wall Pack Black Finish + Photocell 3000K/4000K/5000K 120-277V

The NaturaLED 9823 CWP100S/BS/8C3/BK-PHO is a field-selectable LED full cut-off wall pack designed for security, perimeter, entryway, pathway, area lighting, and building façade applications. It features selectable wattages of 60W, 80W, or 100W, selectable color temperatures of 3000K, 4000K, or 5000K, and an integrated dusk-to-dawn photocell for automatic operation.

Constructed with a rugged die-cast aluminum housing and durable black finish, this fixture is engineered for long-lasting outdoor performance. Adjustable beam angle settings (Short, Medium, and Long) provide flexible light distribution, while 0-10V dimming, DLC Premium qualification, IP65 weather resistance, IK08 impact protection, and 4kV surge protection make it ideal for demanding commercial and industrial environments.

Producing up to 14,000 lumens while replacing up to a 500W metal halide fixture, this wall pack operates on 120-277V power, includes a pre-installed AUX receptacle for an optional motion sensor, and is backed by a 5-year limited warranty.

Technical Performance Specifications
