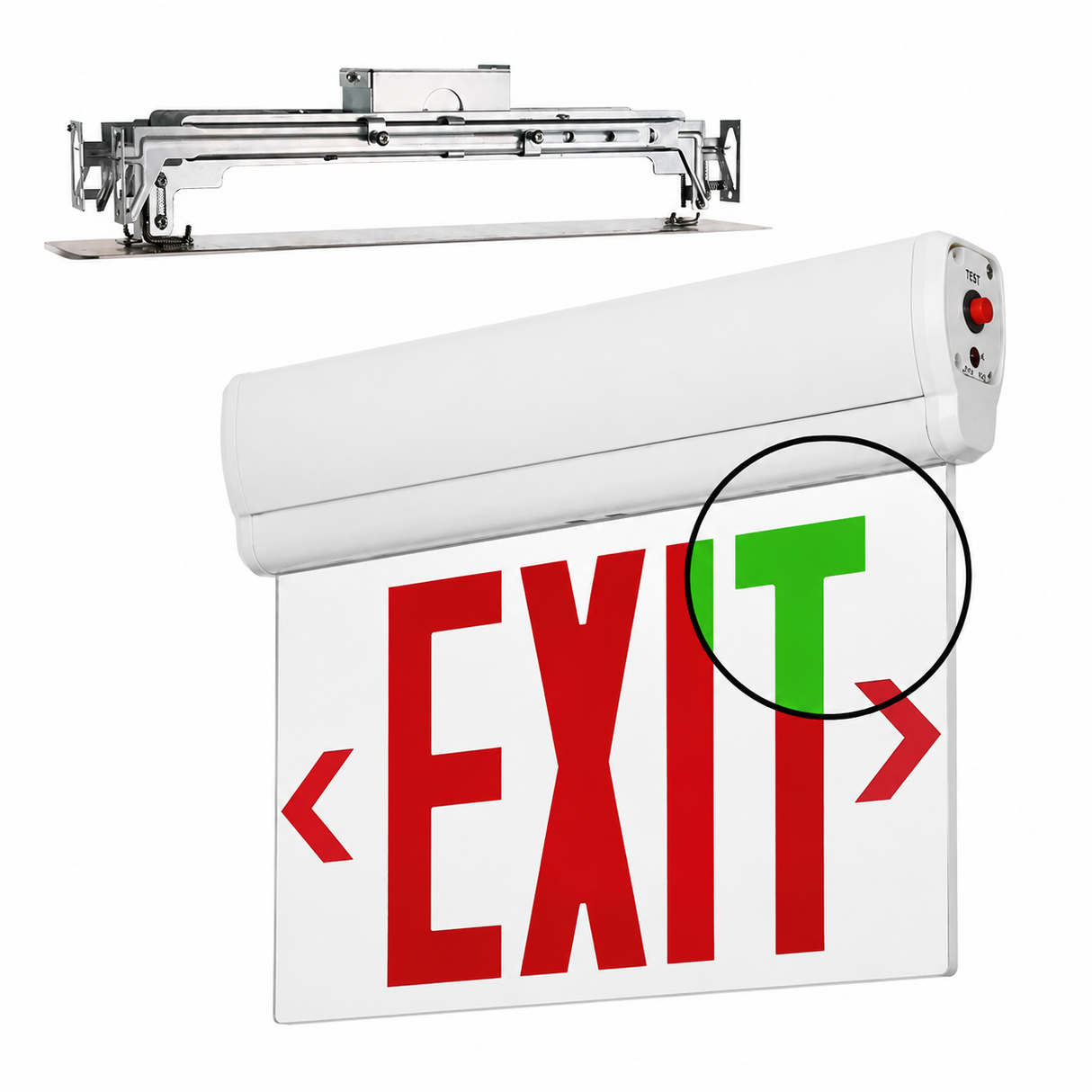

NATURALED 9825 LEDEX-EL/SM-GRN/RED-WH 1W LED Edge Lit Dual-Color Emergency Exit Sign 120-277V

Identification & Application

NaturaLED 9825 LEDEX-EL/SM-GRN/RED-WH 1W LED Edge Lit Dual-Color Emergency Exit Sign 120-277V

The NaturaLED 9825 LEDEX-EL/SM-GRN/RED-WH is a premium LED Edge-Lit Emergency Exit Sign engineered to provide dependable emergency egress illumination for commercial, institutional, and public buildings. Designed with a sleek single-face clear acrylic panel, the fixture features field-switchable red or green LED illumination, allowing installers to select the desired exit sign color during installation. Operating on universal 120-277V input power while consuming only 2 watts, this energy-efficient emergency exit sign is ideal for offices, schools, hospitals, retail stores, hotels, warehouses, and other indoor emergency lighting applications.

Constructed with a flame-retardant, high-impact thermoplastic housing and a durable clear acrylic panel, the fixture offers exceptional durability while maintaining a modern architectural appearance. Universal mounting hardware supports wall, ceiling, and side mounting configurations, while an optional T-Bar mounting kit allows installation in suspended ceilings. The integrated 3.6V 500mAh Ni-MH rechargeable battery provides a minimum emergency runtime exceeding 90 minutes during power outages. Additional features include a built-in test switch, LED charging indicator, maximum 24-hour recharge time, IP22 indoor rating, and reliable operation in ambient temperatures from 32°F to 104°F.

Designed for dependable long-term performance, the NaturaLED 9825 is UL 924 Listed, FCC compliant, and rated for 50,000 hours of service life. Backed by a 2-year limited manufacturer's warranty, this dual-color LED exit sign provides dependable emergency operation, simplified installation, and long-lasting reliability for code-compliant emergency lighting systems.

Technical Performance Specifications
