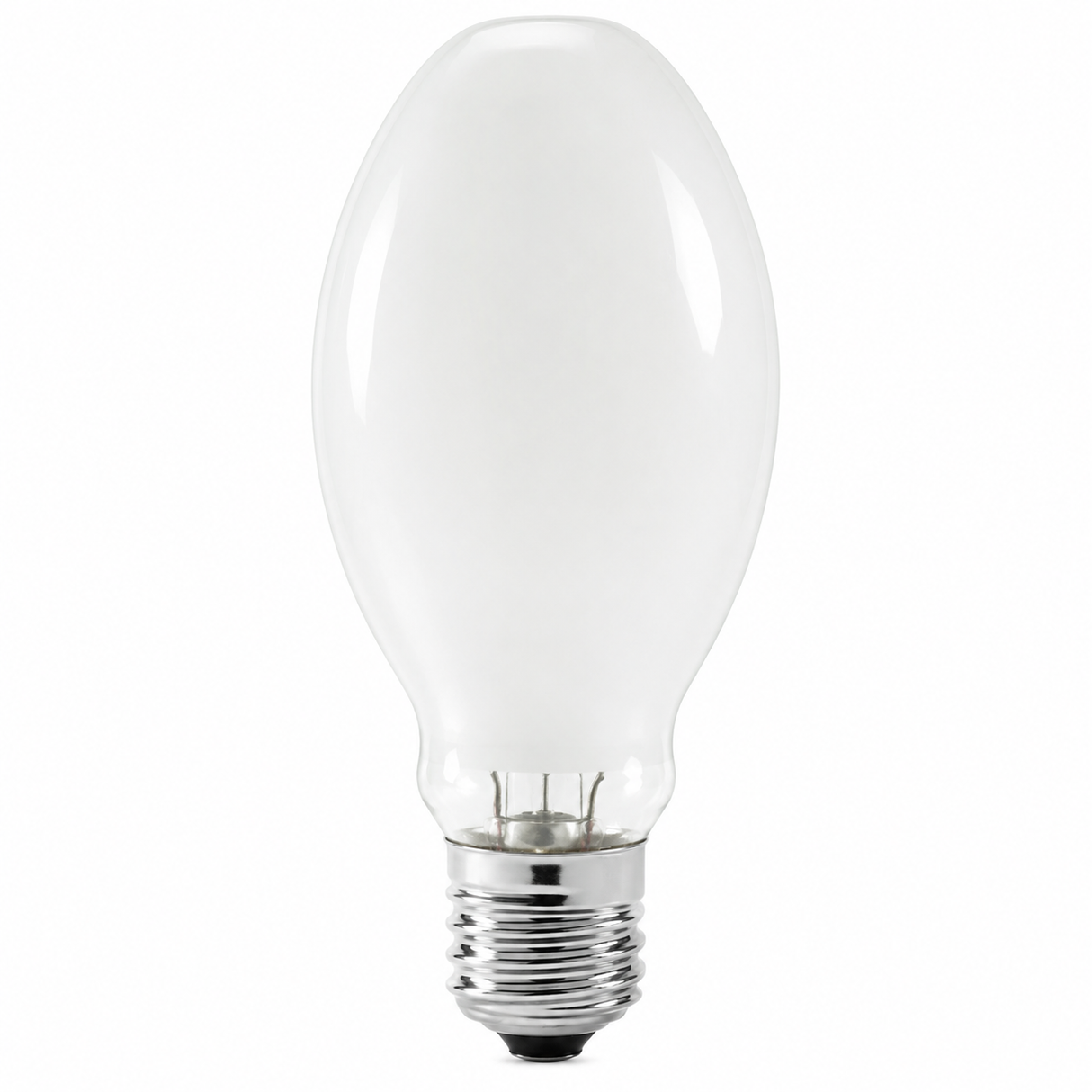

PLUSRITE 1015 MH175/ED28/C/U/4K 175W Metal Halide Enclosed Rated Coated ED28 E39 Base 3800K

Identification & Application

Plusrite 1015 MH175/ED28/C/U/4K 175W Metal Halide Enclosed Rated Coated ED28 E39 Base 3800K

The Plusrite 1015 MH175/ED28/C/U/4K 175W Metal Halide Enclosed Rated Coated ED28 E39 Base 3800K is a Plusrite 175w metal halide enclosed rated coated ed28 e39 base 3800k identified by 1015 / MH175/ED28/C/U/4K. The 2024 Plusrite catalog lists wattage of 175W, initial lumens of 13600 lm, mean lumens of 8800 lm, color temperature of 3800K, cri of 70. It is intended for compatible commercial, industrial, institutional, retail, hospitality, maintenance, retrofit, and replacement lighting systems.

Construction and operation are defined by the exact catalog item number rather than by a similar product family. Bulb Shape: ED28; Base: E39; ANSI Code: M57/E; Finish / Operating Position: - 12 Coated Universal; Operation: Requires a compatible HID ballast matched to the listed wattage and ANSI code. The matching lamp shape, socket, voltage, ballast type, ANSI code, and installation requirements should be verified before replacement.

The catalog record provides the SKU-specific performance and physical data shown in the specification grid below. Rated Life: 10000 hours; Dimensions: 8.31 in. maximum overall length × 5.00 in. light-center length; UPC: 844366010156. Use the product only in equipment designed for the stated electrical, thermal, enclosure, burn-position, lamp, and ballast compatibility requirements.

Technical Performance Specifications
