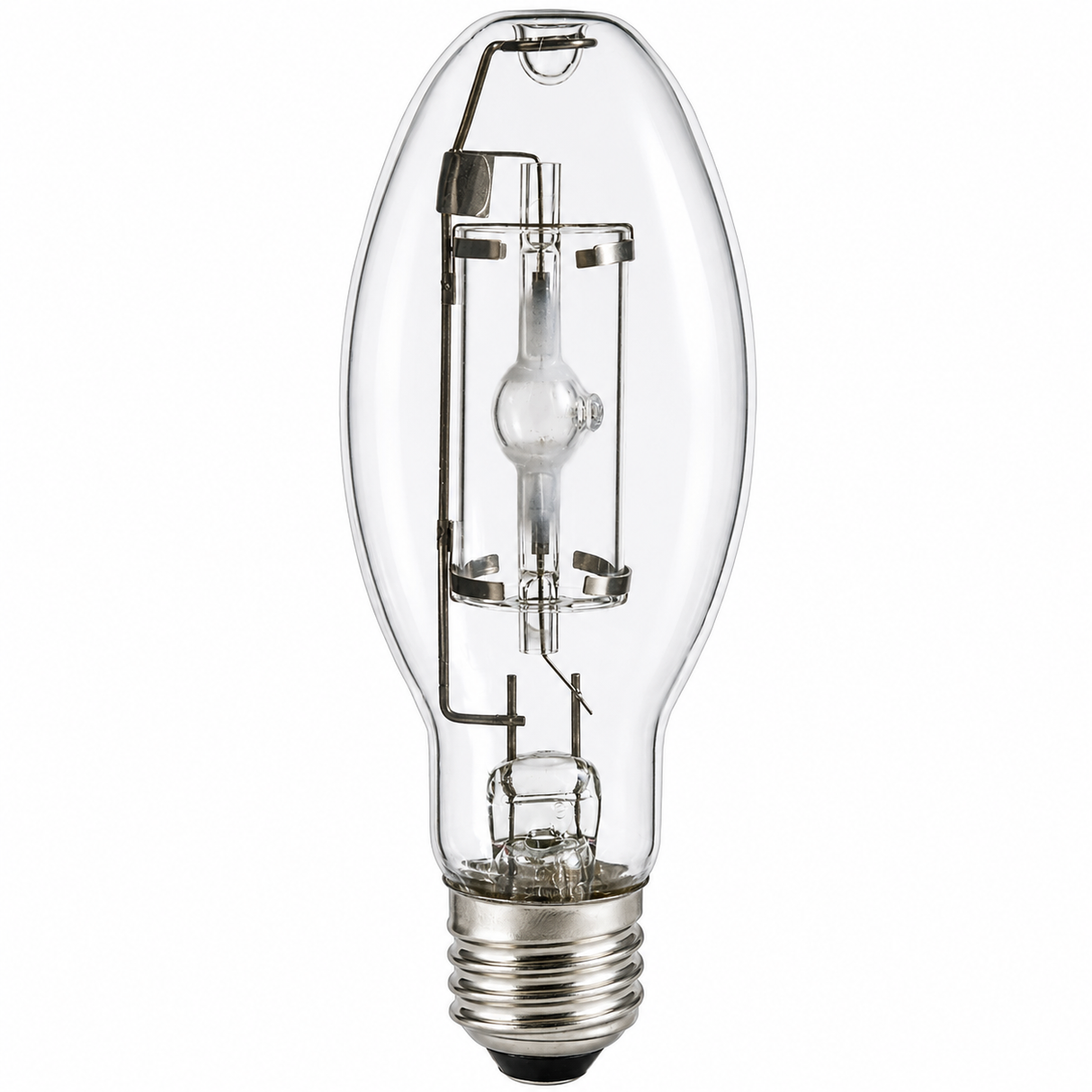

PLUSRITE 1031 MP50/ED17/U/4K 50W Metal Halide Open/Closed Rated ED17 E26 Base 4200K

Identification & Application

Plusrite 1031 MP50/ED17/U/4K 50W Metal Halide Open/Closed Rated ED17 E26 Base 4200K

The Plusrite 1031 MP50/ED17/U/4K 50W Metal Halide Open/Closed Rated ED17 E26 Base 4200K is a Plusrite 50w metal halide open/closed rated ed17 e26 base 4200k identified by 1031 / MP50/ED17/U/4K. The 2024 Plusrite catalog lists wattage of 50W, initial lumens of 11400 lm, mean lumens of 8000 lm, color temperature of 4200K, cri of 65. It is intended for compatible commercial, industrial, institutional, retail, hospitality, maintenance, retrofit, and replacement lighting systems.

Construction and operation are defined by the exact catalog item number rather than by a similar product family. Bulb Shape: EDX17; Base: E26; ANSI Code: M110/O; Finish / Operating Position: Clear Universal 5.43 3.39 3200 2100 15000 4200 60 844366010316 125 ED28 EX39 1643 MP125/ED28/PS/V/4K M150/O - 12 Clear VER ±15°; Fixture Rating: Open or enclosed fixture rated; Operation: Requires a compatible HID ballast matched to the listed wattage and ANSI code. The matching lamp shape, socket, voltage, ballast type, ANSI code, and installation requirements should be verified before replacement.

The catalog record provides the SKU-specific performance and physical data shown in the specification grid below. Rated Life: 15000 hours; Dimensions: 8.31 in. maximum overall length × 5.00 in. light-center length; Case Quantity: 12; UPC: 844366016431. Use the product only in equipment designed for the stated electrical, thermal, enclosure, burn-position, lamp, and ballast compatibility requirements.

Technical Performance Specifications
