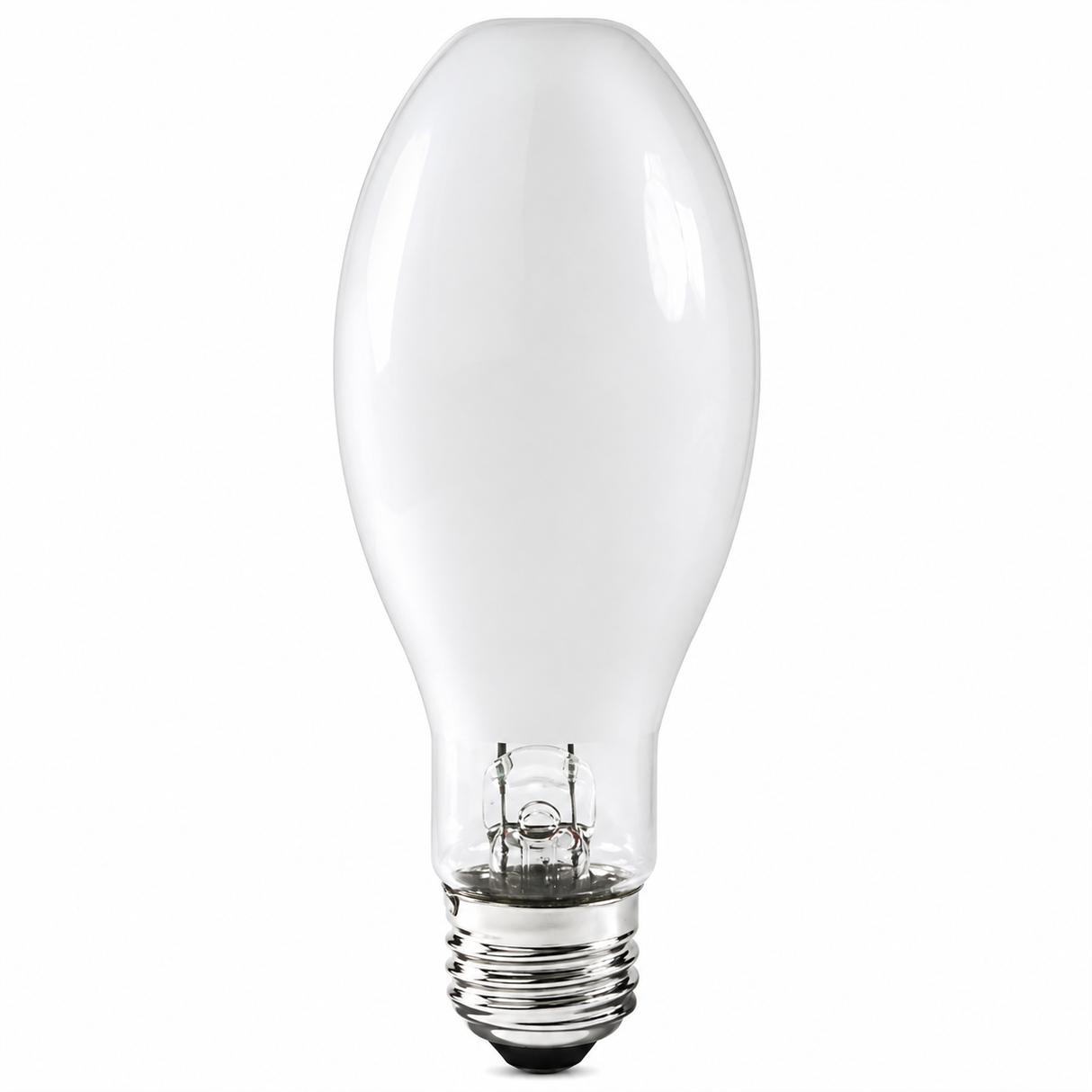

PLUSRITE 1034 MP70/ED17/C/U/4K 70W Metal Halide Open/Closed Rated Coated ED17 E26 Base 3900K

Identification & Application

Plusrite 1034 MP70/ED17/C/U/4K 70W Metal Halide Open/Closed Rated Coated ED17 E26 Base 3900K

The Plusrite 1034 MP70/ED17/C/U/4K 70W Metal Halide Open/Closed Rated Coated ED17 E26 Base 3900K is a Plusrite 70w metal halide open/closed rated coated ed17 e26 base 3900k identified by 1034 / MP70/ED17/C/U/4K. The 2024 Plusrite catalog lists wattage of 70W, initial lumens of 16000 lm, mean lumens of 12000 lm, color temperature of 3800K, cri of 70. It is intended for compatible commercial, industrial, institutional, retail, hospitality, maintenance, retrofit, and replacement lighting systems.

Construction and operation are defined by the exact catalog item number rather than by a similar product family. Bulb Shape: EDX17; Base: E26; ANSI Code: M98/O; Finish / Operating Position: Coated Universal 5.43 3.39 5000 3300 15000 3800 70 844366010347 175 ED28 EX39 1608 MP175/ED28/C/PS/BU/4K M152/O - 12 Coated BU ±15°; Fixture Rating: Open or enclosed fixture rated; Operation: Requires a compatible HID ballast matched to the listed wattage and ANSI code. The matching lamp shape, socket, voltage, ballast type, ANSI code, and installation requirements should be verified before replacement.

The catalog record provides the SKU-specific performance and physical data shown in the specification grid below. Rated Life: 15000 hours; Dimensions: 8.31 in. maximum overall length × 5.00 in. light-center length; Case Quantity: 12; UPC: 844366016080. Use the product only in equipment designed for the stated electrical, thermal, enclosure, burn-position, lamp, and ballast compatibility requirements.

Technical Performance Specifications
