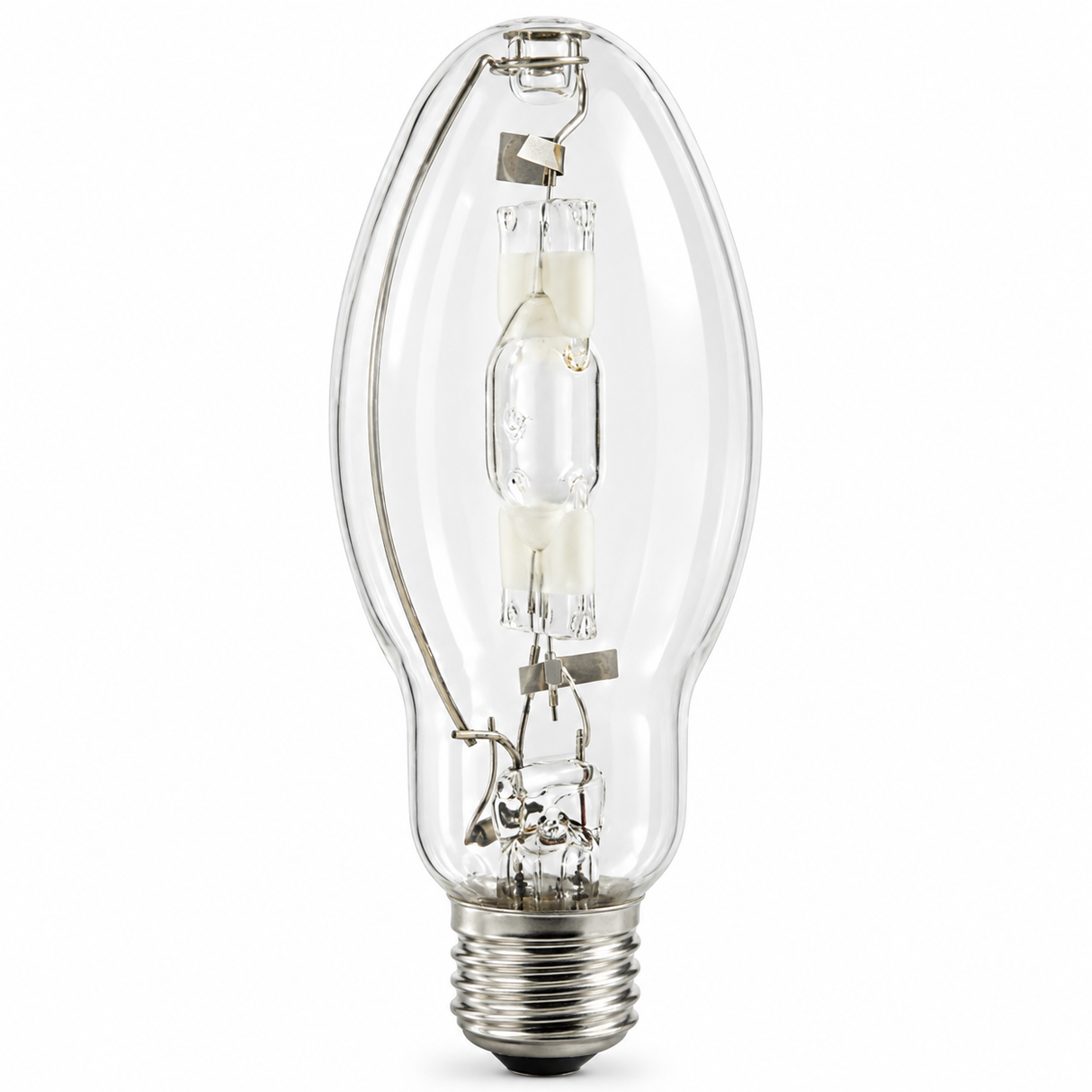

PLUSRITE 1669 MS200/ED17/PS/U/4K 200W Pulse Start Metal Halide Enclosed Rated ED17 E26 Base 4200K

Identification & Application

Plusrite 1669 MS200/ED17/PS/U/4K 200W Pulse Start Metal Halide Enclosed Rated ED17 E26 Base 4200K

The Plusrite 1669 MS200/ED17/PS/U/4K 200W Pulse Start Metal Halide Enclosed Rated ED17 E26 Base 4200K is a Plusrite 200w pulse start metal halide enclosed rated ed17 e26 base 4200k identified by 1669 / MS200/ED17/PS/U/4K. The 2024 Plusrite catalog lists wattage of 200W, initial lumens of 19000 lm, mean lumens of 13500 lm, color temperature of 4200K, cri of 65. It is intended for compatible commercial, industrial, institutional, retail, hospitality, maintenance, retrofit, and replacement lighting systems.

Construction and operation are defined by the exact catalog item number rather than by a similar product family. Bulb Shape: ED17; Base: E26; ANSI Code: M136/E; Finish / Operating Position: Clear Universal; Operation: Requires a compatible HID ballast matched to the listed wattage and ANSI code. The matching lamp shape, socket, voltage, ballast type, ANSI code, and installation requirements should be verified before replacement.

The catalog record provides the SKU-specific performance and physical data shown in the specification grid below. Rated Life: 15000 hours; Dimensions: 5.43 in. maximum overall length × 3.39 in. light-center length; Case Quantity: 12; UPC: 844366016691. Use the product only in equipment designed for the stated electrical, thermal, enclosure, burn-position, lamp, and ballast compatibility requirements.

Technical Performance Specifications
