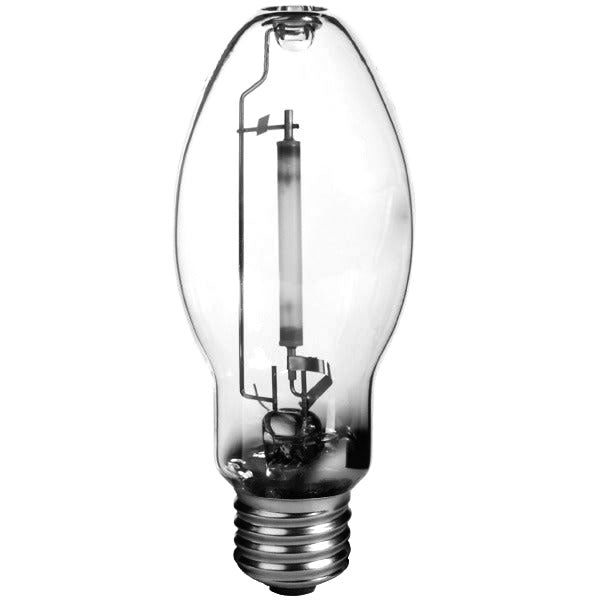

PLUSRITE 2001 LU50/ED17/MED 50W High Pressure Sodium ED17 E26 Base 2000K

Identification & Application

Plusrite 2001 LU50/ED17/MED 50W High Pressure Sodium ED17 E26 Base 2000K

The Plusrite 2001 LU50/ED17/MED 50W High Pressure Sodium ED17 E26 Base 2000K is a Plusrite 50w high pressure sodium ed17 e26 base 2000k identified by 2001 / LU50/ED17/MED. The 2024 Plusrite catalog lists wattage of 50W, initial lumens of 6300 lm, mean lumens of 5500 lm, color temperature of 2000K, cri of 22. It is intended for compatible commercial, industrial, institutional, retail, hospitality, maintenance, retrofit, and replacement lighting systems.

Construction and operation are defined by the exact catalog item number rather than by a similar product family. Bulb Shape: ED17; Base: E26; ANSI Code: S68; Finish / Operating Position: Clear 5.43 3.43 4000 3600 24000+ 2000 22 844366020018 70 ED23.5 E39 2005 LU70/ED23.5 S62 12 Clear; Operation: Requires a compatible HID ballast matched to the listed wattage and ANSI code. The matching lamp shape, socket, voltage, ballast type, ANSI code, and installation requirements should be verified before replacement.

The catalog record provides the SKU-specific performance and physical data shown in the specification grid below. Rated Life: 24000+ hours; Dimensions: 7.75 in. maximum overall length × 5.00 in. light-center length; Case Quantity: 12; UPC: 844366020056. Use the product only in equipment designed for the stated electrical, thermal, enclosure, burn-position, lamp, and ballast compatibility requirements.

Technical Performance Specifications
