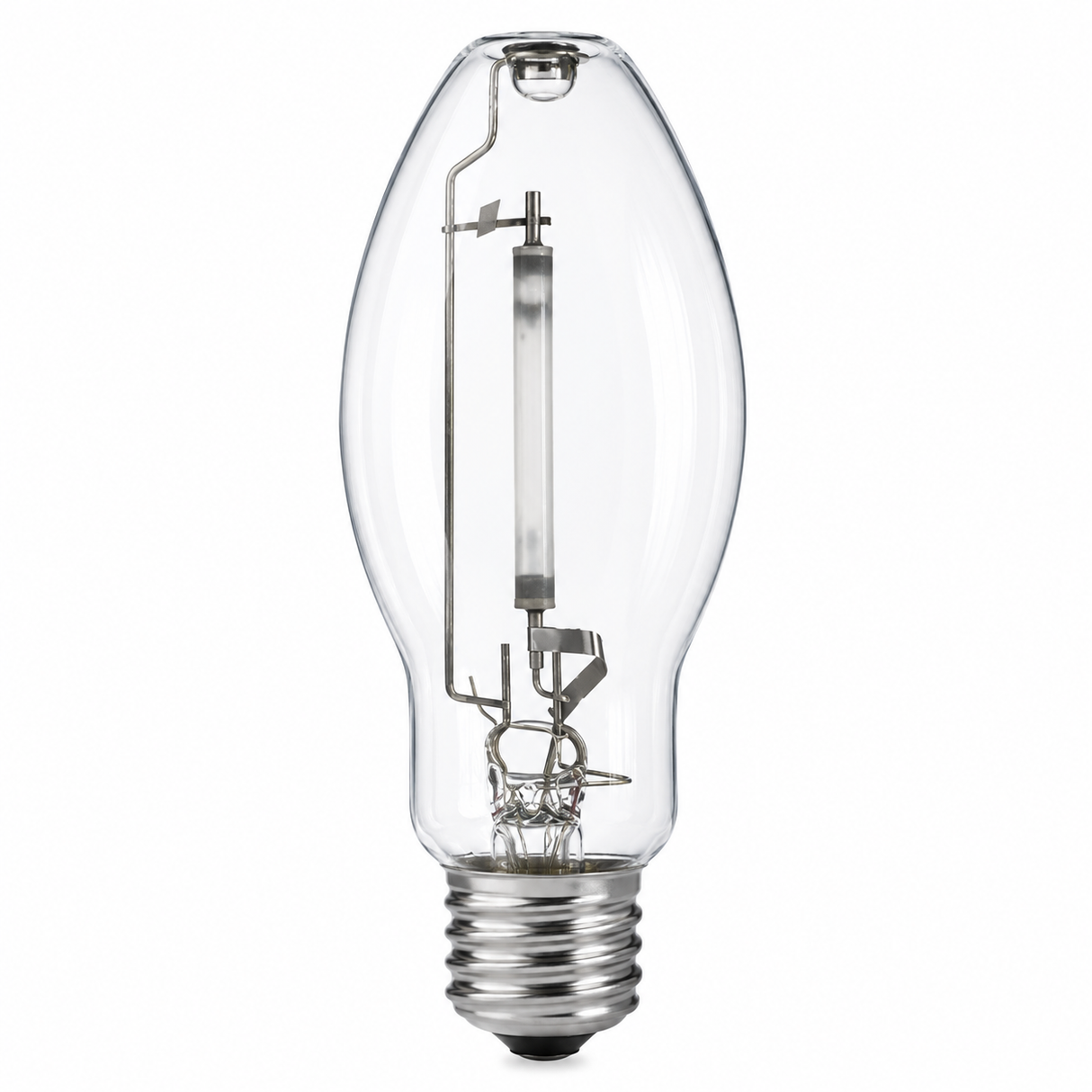

PLUSRITE 2004 LU150/ED17/MED 150W High Pressure Sodium ED17 E26 Base 2000K

Identification & Application

Plusrite 2004 LU150/ED17/MED 150W High Pressure Sodium ED17 E26 Base 2000K

The Plusrite 2004 LU150/ED17/MED 150W High Pressure Sodium ED17 E26 Base 2000K is a Plusrite 150w high pressure sodium ed17 e26 base 2000k identified by 2004 / LU150/ED17/MED. The 2024 Plusrite catalog lists wattage of 150W, initial lumens of 15700 lm, mean lumens of 14100 lm, color temperature of 2000K, cri of 22. It is intended for compatible commercial, industrial, institutional, retail, hospitality, maintenance, retrofit, and replacement lighting systems.

Construction and operation are defined by the exact catalog item number rather than by a similar product family. Bulb Shape: ED17; Base: E26; ANSI Code: S55; Finish / Operating Position: Clear 5.43 3.43 15800 13400 24000+ 2000 22 844366020049 150 ED28 E39 2026 LU150/100/ED28 S56 12 Clear; Operation: Requires a compatible HID ballast matched to the listed wattage and ANSI code. The matching lamp shape, socket, voltage, ballast type, ANSI code, and installation requirements should be verified before replacement.

The catalog record provides the SKU-specific performance and physical data shown in the specification grid below. Rated Life: 24000+ hours; Dimensions: 8.31 in. maximum overall length × 5.00 in. light-center length; Case Quantity: 12; UPC: 844366020261. Use the product only in equipment designed for the stated electrical, thermal, enclosure, burn-position, lamp, and ballast compatibility requirements.

Technical Performance Specifications
