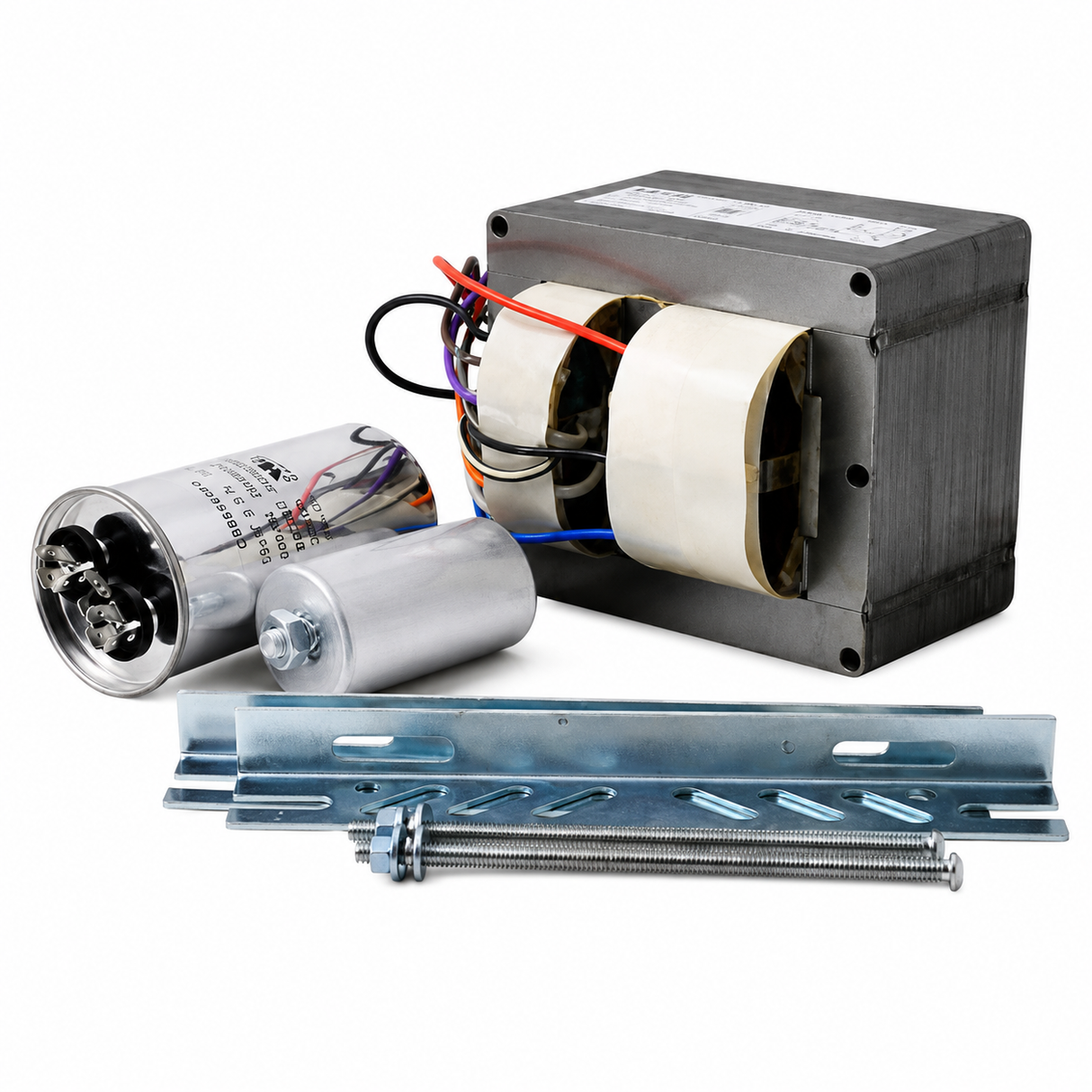

PLUSRITE 7202 BAPS70-HX/V4 70W HID Magnetic Pulse Start Metal Halide Ballast Kit 120/208/240/277V

Identification & Application

Plusrite 7202 BAPS70-HX/V4 70W HID Magnetic Pulse Start Metal Halide Ballast Kit 120/208/240/277V

The Plusrite 7202 BAPS70-HX/V4 70W HID Magnetic Pulse Start Metal Halide Ballast Kit 120/208/240/277V is a Plusrite 70w hid magnetic pulse start metal halide ballast kit 120/208/240/277v identified by 7202 / BAPS70-HX/V4. The 2024 Plusrite catalog lists wattage of 70W, input voltage of 120/208/240/277V. It is intended for compatible commercial, industrial, institutional, retail, hospitality, maintenance, retrofit, and replacement lighting systems.

Construction and operation are defined by the exact catalog item number rather than by a similar product family. ANSI Lamp Code: M98; Circuit Type: HX-HPF. The matching lamp shape, socket, voltage, ballast type, ANSI code, and installation requirements should be verified before replacement.

The catalog record provides the SKU-specific performance and physical data shown in the specification grid below. Ballast Dimensions: 1.45 in. A × 2.85 in. B; Weight: 4.6 lb; Case Quantity: 1; Wiring Diagram: F-V4; Capacitor Requirement: 8 µF / 280V; UPC: 844366072789. Use the product only in equipment designed for the stated electrical, thermal, enclosure, burn-position, lamp, and ballast compatibility requirements.

Technical Performance Specifications
