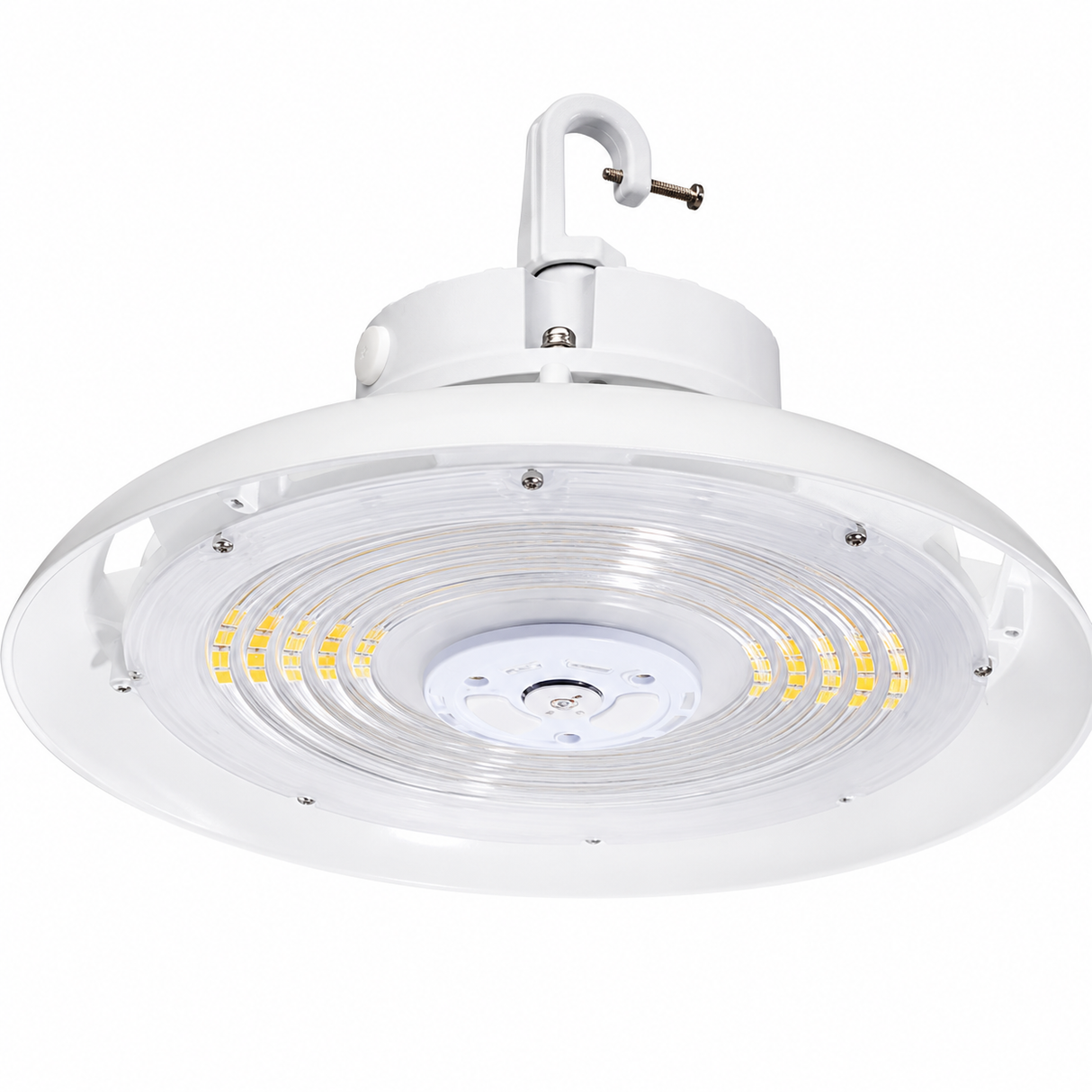

TOPAZ HBC-200W-PCTS-WH 150-180-200W LED Round Highbay 4000K/5000K 22900-27900-30500lm 120-277V

Identification & Application

Topaz HBC-200W-PCTS-WH LED Round High Bay, 150W/180W/200W, 4000K/5000K Selectable, 22,900-27,900-30,500 Lumens, 120-277V

The Topaz HBC-200W-PCTS-WH LED Round High Bay combines field-selectable wattage and color temperature in a single versatile fixture, allowing installers to configure the ideal light output for warehouses, manufacturing facilities, gymnasiums, retail stores, and other commercial or industrial environments while minimizing inventory requirements.

The fixture features selectable 150W, 180W, and 200W power settings with selectable 4000K neutral white and 5000K daylight color temperatures. Depending on the selected wattage, it delivers between 22,900 and 30,500 lumens with efficacy up to 155 lumens per watt.

Constructed with a rugged aluminum alloy housing finished in white and an IK08 impact-rated polycarbonate lens, the fixture is designed for long-lasting performance in demanding applications. A 90° optical lens minimizes glare while providing uniform illumination for high-ceiling spaces.

The fixture includes a J-hook, 3-foot safety cable, and 6-foot power and dimming cord for quick installation. Optional accessories include a plug-and-play microwave motion sensor, J-Box kit, and emergency battery backup for enhanced functionality.

Designed for dependable operation, the fixture features IP65 wet-location protection, 0-10V dimming capability, and a universal 120-277V driver suitable for a wide variety of commercial and industrial lighting projects.

Technical Performance Specifications
