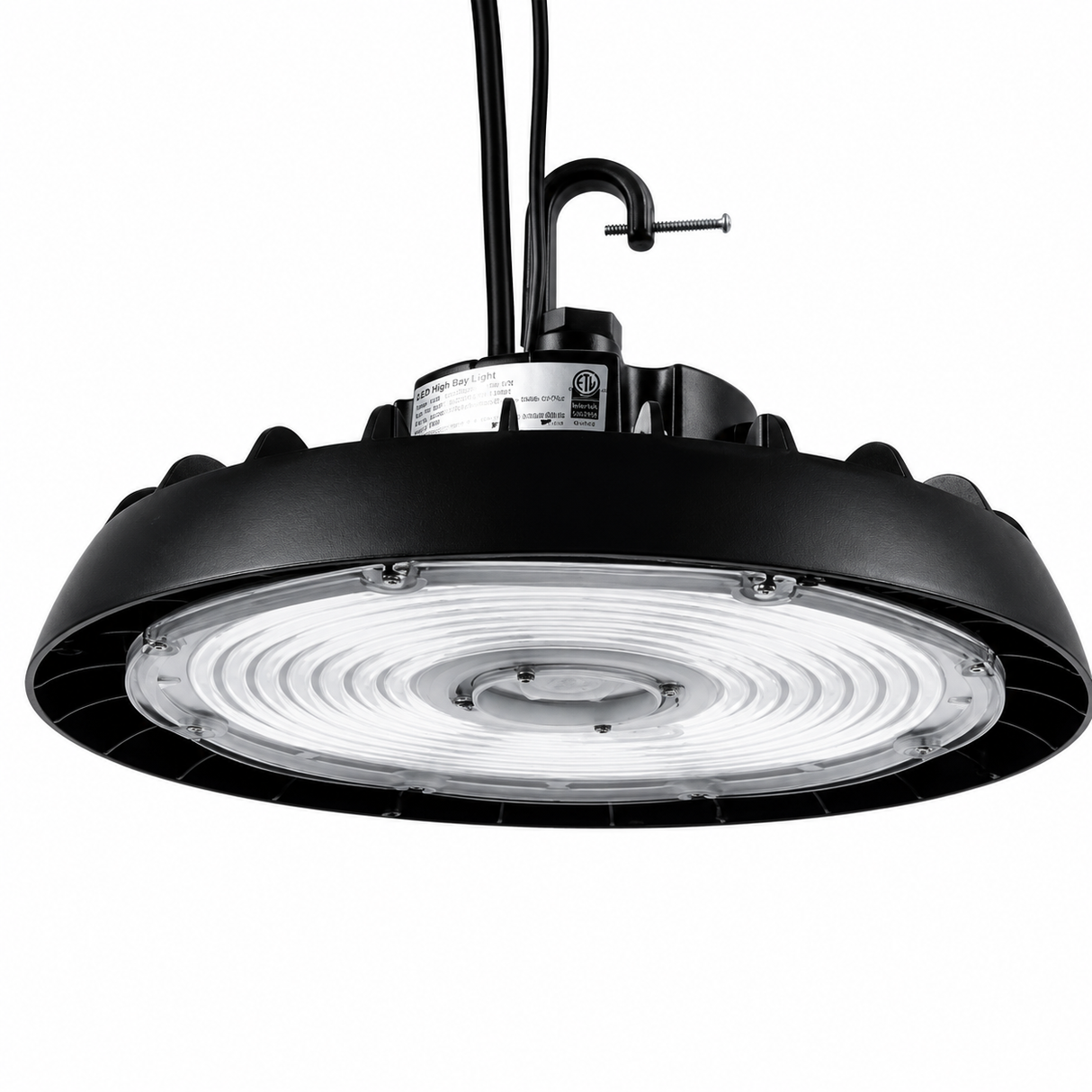

TOPAZ HBC-30L-50K-PS 125-150-200W LED Round Highbay 5000K 19375-23250-30000lm 120-277V

Identification & Application

Topaz HBC-30L-50K-PS LED Round High Bay, 125W/150W/200W, 5000K, 19,375-23,250-30,000 Lumens, 120-277V

The Topaz HBC-30L-50K-PS LED Round High Bay is a power-selectable high-performance luminaire designed to replace multi-lamp fluorescent and HID high bay fixtures in commercial and industrial applications. Field-selectable wattage allows installers to optimize light output while reducing inventory requirements.

The fixture features selectable 125W, 150W, and 200W power settings with a fixed 5000K daylight color temperature. Depending on the selected wattage, light output ranges from 19,375 to 30,000 lumens with efficacies up to 155 lumens per watt.

Constructed with a rugged die-cast aluminum housing finished in durable black powder coating and an IK10 impact-rated lens, the fixture is built to withstand demanding industrial environments. The integrated low-voltage sensor receptacle supports optional plug-and-play occupancy sensors and Bluetooth-enabled controls.

A universal 120-277V driver includes standard 0-10V dimming capability with 6kV surge protection. Each fixture includes a J-hook, 6-foot power and dimming cable with leads, and a 1.7-foot safety cable for fast installation.

Ideal applications include warehouses, manufacturing facilities, gymnasiums, distribution centers, big-box retail stores, and commercial buildings requiring dependable, energy-efficient LED high bay lighting.

Technical Performance Specifications
