TOPAZ HBC-40L-50K-PS 175-200-240W LED Round Highbay 5000K 29750-34000-40080lm 120-277V

Identification & Application

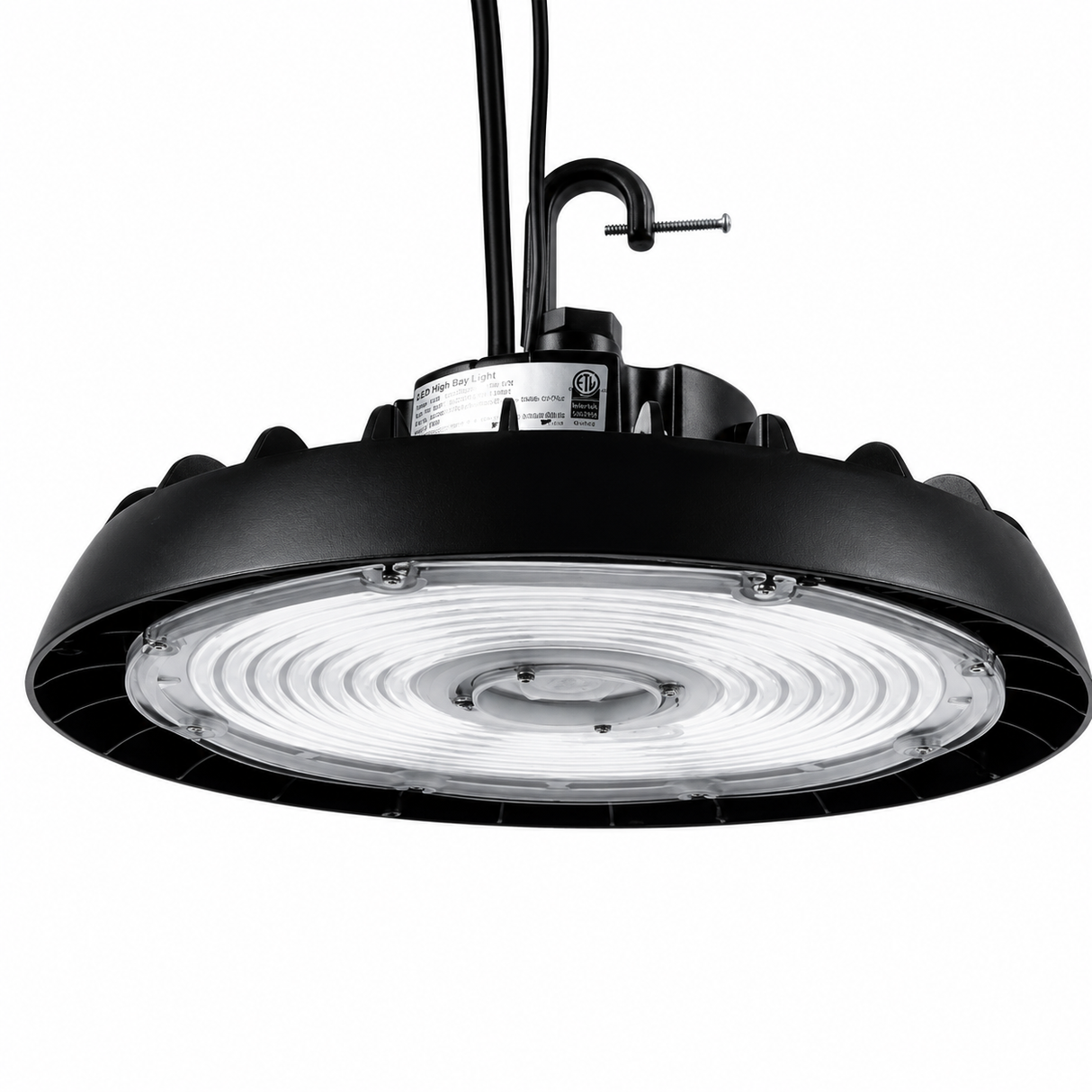

Topaz HBC-40L-50K-PS LED Round High Bay, 175W/200W/240W, 5000K, 29,750-34,000-40,080 Lumens, 120-277V

The Topaz HBC-40L-50K-PS LED Round High Bay is a power-selectable, high-performance luminaire engineered to replace multi-lamp fluorescent and HID high bay fixtures in demanding commercial and industrial applications. Field-selectable wattage allows installers to match light output to application requirements while minimizing inventory.

The fixture features selectable 175W, 200W, and 240W power settings with a fixed 5000K daylight color temperature. Depending on the selected wattage, light output ranges from 29,750 to 40,080 lumens while delivering efficacies up to 170 lumens per watt.

Constructed with a rugged die-cast aluminum housing finished in durable black powder coating and an IK10 impact-rated lens, the fixture is designed for long-term reliability in warehouses, manufacturing facilities, and other harsh environments. An integrated low-voltage sensor receptacle supports optional plug-and-play occupancy sensors and Bluetooth-enabled controls.

A universal 120-277V driver includes standard 0-10V dimming capability with 6kV surge protection. Each fixture includes a J-hook, 6-foot power and dimming cable with leads, and a 1.7-foot safety cable for quick installation.

Ideal applications include warehouses, distribution centers, manufacturing facilities, gymnasiums, commercial buildings, and big-box retail spaces requiring high-output, energy-efficient LED lighting.

Technical Performance Specifications
