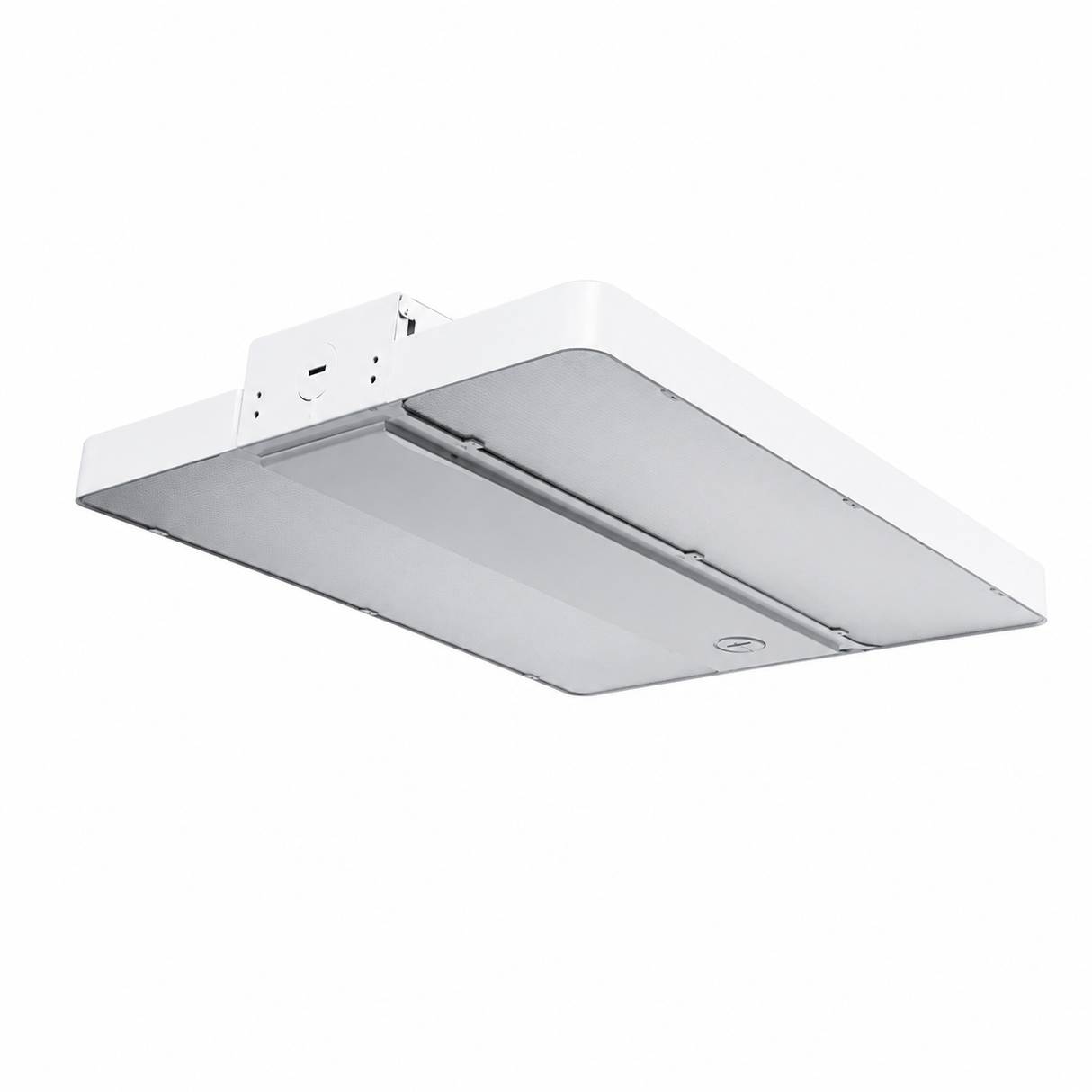

TOPAZ LHB-15L-W-PCS-U 60-80-100W LED Linear Highbay 30-40-50K Controls Ready for PIR Sensor Dimmable 9500-15000lm 120-277V

Identification & Application

Topaz LHB-15L-W-PCS-U Power & CCT Selectable LED Linear High Bay, 60W/80W/100W, 3500K/4000K/5000K, 9,500-15,000 Lumens, 120-277V

The Topaz LHB-15L-W-PCS-U LED Linear High Bay features field-selectable wattage and color temperature, allowing installers to choose the ideal light output and color during installation. It is designed for commercial and industrial applications including warehouses, manufacturing facilities, gymnasiums, retail environments, and other high-ceiling spaces.

This versatile fixture offers selectable 60W, 80W, or 100W operation with selectable 3500K, 4000K, or 5000K color temperatures. Depending on the selected wattage and CCT, the fixture produces between 9,500 and 15,000 lumens while delivering high efficiency and uniform illumination.

The luminaire features a die-cast aluminum housing with a center-mounted driver compartment for durability and superior thermal management. A white powder-coated finish and optically enhanced diffused lens provide long-lasting performance with reduced glare and excellent visual comfort.

A universal 120-277V driver includes standard 0-10V dimming capability. The integrated low-voltage sensor receptacle is ready for optional plug-in PIR occupancy sensors and lighting controls for improved energy savings.

Standard suspension mounting hardware including V-hook and chain is provided. Optional surface mount brackets, pendant mount brackets, wire guards, occupancy sensors, and emergency battery backup accessories are available separately to accommodate a wide variety of installation requirements.

Technical Performance Specifications
