TOPAZ LHB-24L-W-50K-U 160W LED Linear Highbay 5000K Controls Ready Dimmable 24000lm 120-277V

Identification & Application

TOPAZ LHB-24L-W-50K-U 160W LED Linear Highbay 5000K Controls Ready Dimmable 24000lm 120-277V

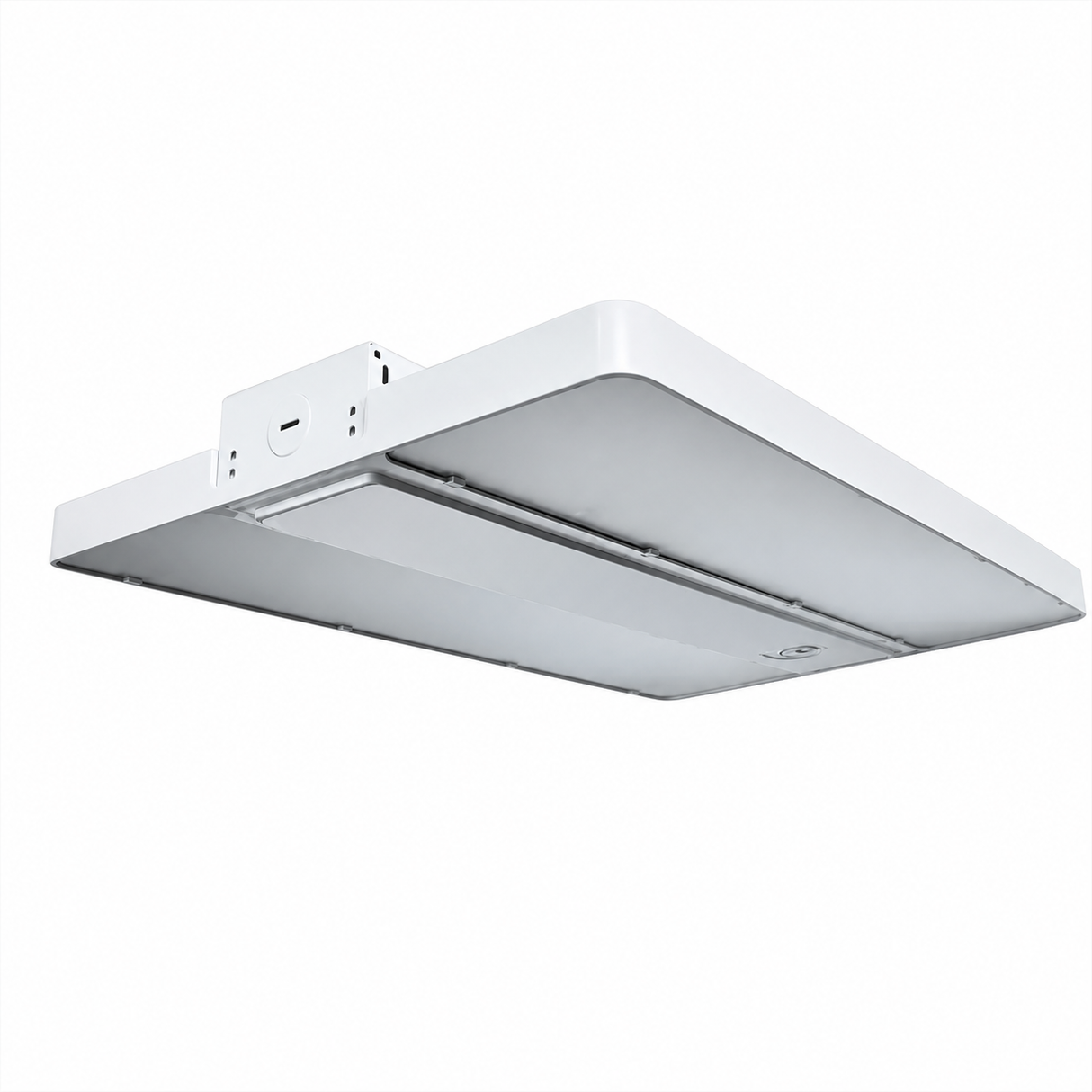

The TOPAZ LHB-24L-W-50K-U LED Linear High Bay is a 160 watt commercial and industrial luminaire designed for high ceiling applications including warehouses, manufacturing facilities, gymnasiums, and big box retail environments. The fixture utilizes a die-cast aluminum housing with an integrated center driver compartment for durability and thermal management.

This fixture delivers 24,000 lumens at a 5000K color temperature with an efficacy of 150 lumens per watt. The wide beam optical system incorporates an enhanced lens design for glare control and broad light distribution suitable for open-area lighting applications.

The luminaire operates on 120-277V systems and includes standard 0-10V dimming capability. An integrated low-voltage sensor receptacle allows plug-and-play installation of compatible occupancy sensors and lighting controls.

Visible specifications confirm damp location suitability, a power factor greater than 0.9, 6kV surge protection, operating temperatures from -40°F to 131°F, and a rated life exceeding 50,000 hours. Suspension mounting hardware is included, with optional surface mount, pendant mount, and wire guard accessories available separately.

Technical Performance Specifications
