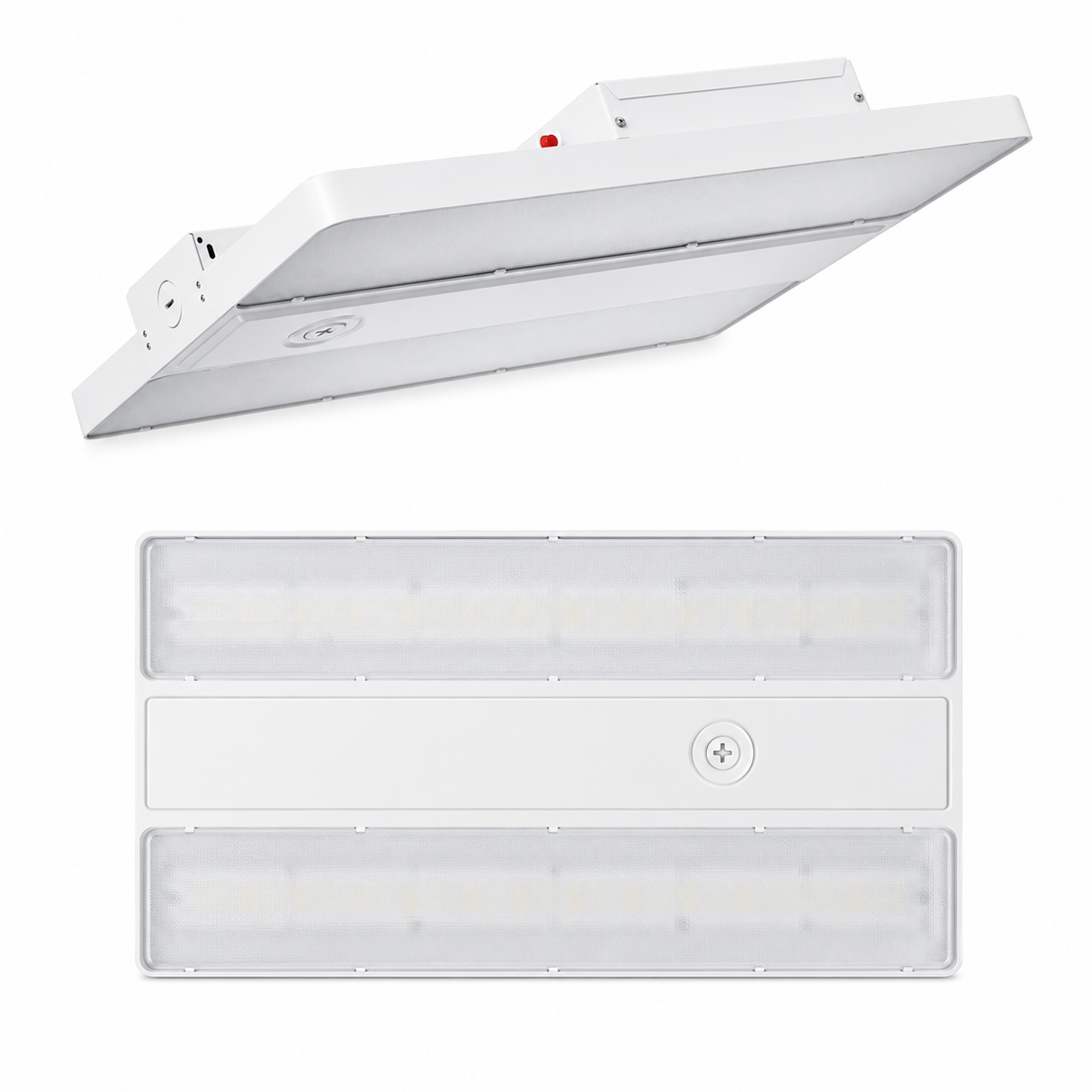

TOPAZ LHB-30L-W-40K-U 200W LED Linear Highbay 4000K Controls Ready Dimmable 30000lm 120-277V

Identification & Application

Topaz LHB-30L-W-40K-U LED Linear High Bay, 200W, 4000K, 30000 Lumens, 120-277V

The Topaz LHB-30L-W-40K-U LED Linear High Bay is designed for commercial and industrial facilities requiring high-output illumination in large open spaces. Typical applications include warehouses, manufacturing facilities, distribution centers, gymnasiums, and retail environments with elevated ceiling heights.

This fixture delivers 30,000 lumens of 4000K neutral white illumination while operating at 200 watts. The optically enhanced wide-beam lens provides broad light distribution and glare control, supporting consistent illumination across workspaces and storage areas.

The luminaire utilizes a die-cast aluminum housing with a center-mounted driver compartment engineered for durability and thermal management. The white powder-coated finish and damp-location construction support long-term operation in demanding indoor environments.

A universal voltage driver accepts 120-277V input power and includes standard 0-10V dimming capability. The integrated low-voltage sensor receptacle supports compatibility with occupancy sensors and lighting controls for enhanced energy management.

Suspension mounting hardware including V-hook and chain is included for installation. Optional surface mount brackets, pendant mount brackets, and wire guards are available separately. The fixture is intended for mounting heights between 25 and 35 feet and serves as a replacement for traditional HID and fluorescent high bay systems.

Technical Performance Specifications
