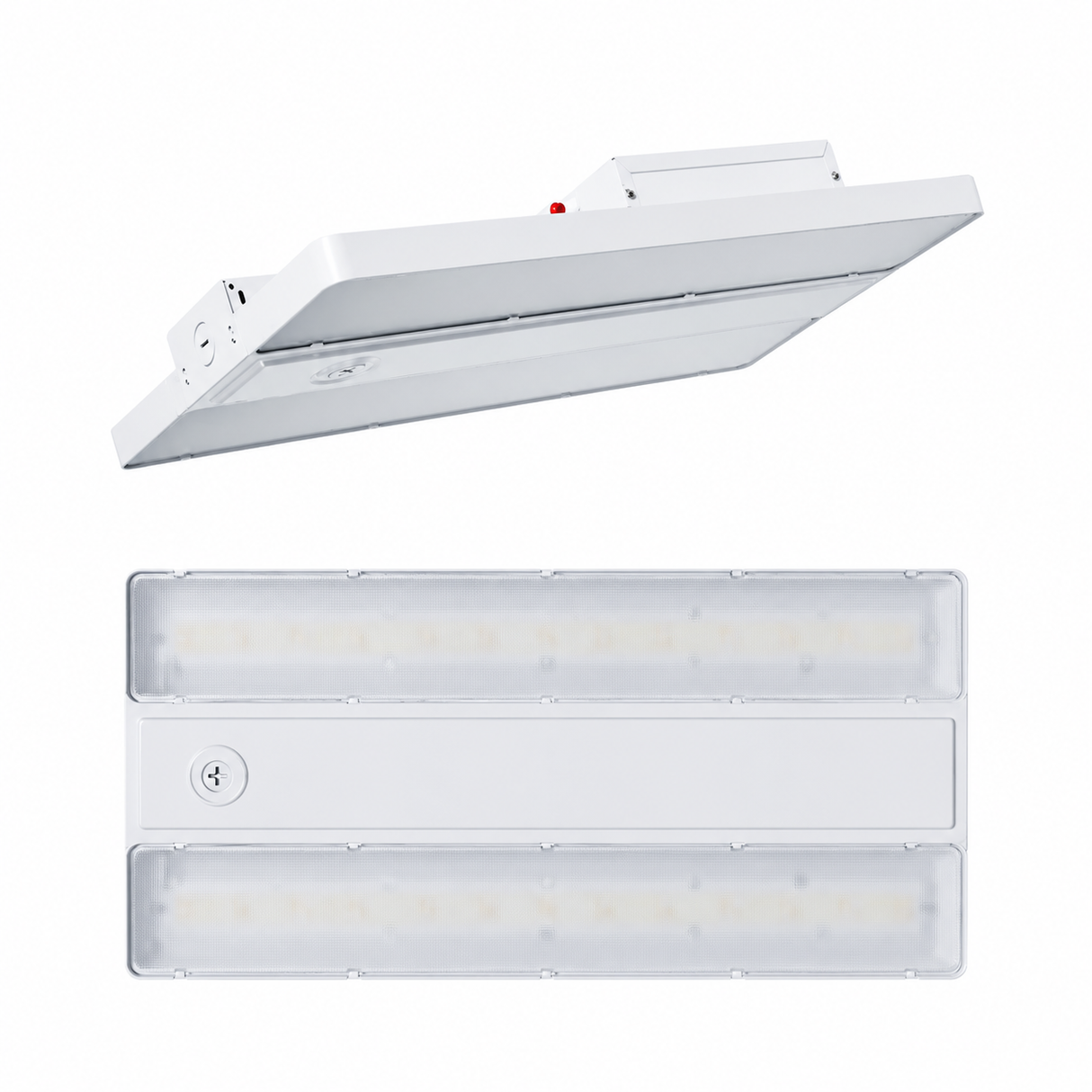

TOPAZ LHB-30L-W-PCS-U 120-160-200W LED Linear Highbay 30-40-50K Controls Ready for PIR Sensor Dimmable 18600-30000lm 120-277V

Identification & Application

Topaz LHB-30L-W-PCS-U Power & CCT Selectable LED Linear High Bay, 120W/160W/200W, 3500K/4000K/5000K, 18,600-30,000 Lumens, 120-277V

The Topaz LHB-30L-W-PCS-U LED Linear High Bay features field-selectable wattage and color temperature, allowing installers to optimize light output and color during installation. It is ideal for commercial and industrial applications including warehouses, manufacturing facilities, distribution centers, gymnasiums, and large retail environments.

This versatile fixture offers selectable 120W, 160W, or 200W operation with selectable 3500K, 4000K, or 5000K color temperatures. Depending on the selected settings, the fixture produces between 18,600 and 30,000 lumens while delivering excellent energy efficiency and uniform illumination.

The luminaire utilizes a die-cast aluminum housing with a center-mounted driver compartment for superior durability and thermal management. A white powder-coated finish and optically enhanced diffused lens provide excellent glare control and visual comfort.

A universal 120-277V driver includes standard 0-10V dimming capability. The integrated low-voltage sensor receptacle is ready for optional plug-in PIR occupancy sensors and lighting controls to maximize energy savings.

Standard suspension mounting hardware including V-hook and chain is included. Optional surface mount brackets, pendant mount brackets, wire guards, occupancy sensors, remote controls, and emergency battery backup accessories are available separately for maximum installation flexibility.

Technical Performance Specifications
