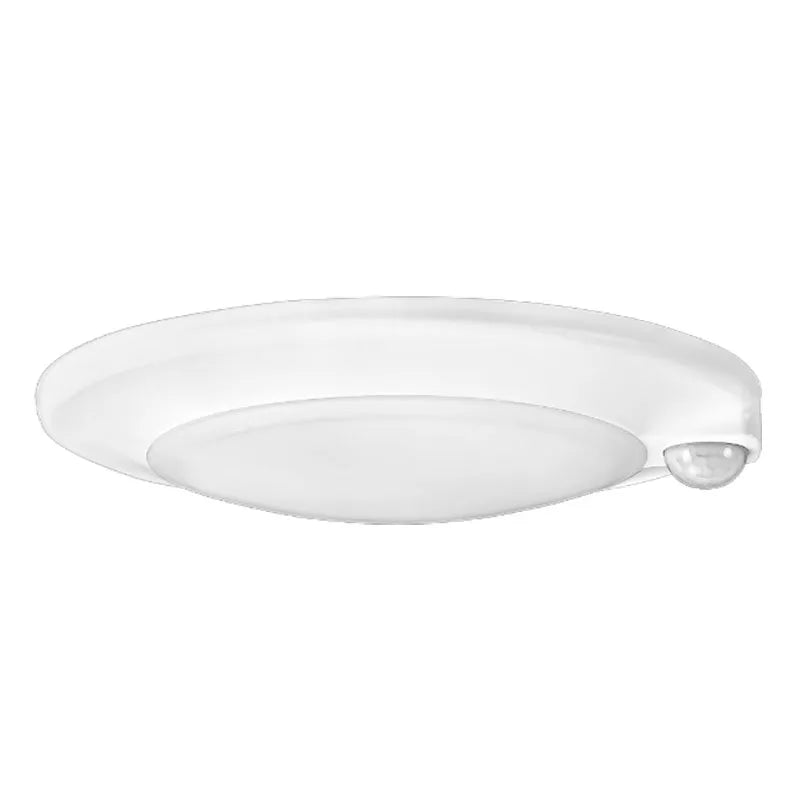

WESTGATE DLSE4-MCT5-PIR 10W 4" LED Round Economy Disc Light Fixture PIR Sensor White Finish 27K/30K/35K/40K/50K 120V

Name: WESTGATE DLSE4-MCT5-PIR 10W 4" LED Round Economy Disc Light Fixture PIR Sensor White Finish 27K/30K/35K/40K/50K 120V
Brand: WESTGATE
SKU: DLSE4-MCT5-PIR
Price: 16.74 USD
Availability: InStock

$16.74

Shipping calculated at checkout.

Specifications & Downloads

View Spec Sheet

Barcode: 840378321785

Description

Identification & Application

WESTGATE DLSE4-MCT5-PIR 10W 4" LED Round Economy Disc Light Fixture PIR Sensor White Finish 27K/30K/35K/40K/50K 120V

The WESTGATE DLSE4-MCT5-PIR 10W 4" LED Round Economy Disc Light Fixture PIR Sensor White Finish 27K/30K/35K/40K/50K 120V is a Westgate Architectural Fixture designed for for retrofit and new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications; Damp Location; closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications.

This model is part of the DLSE SERIES Residential Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): DLSE4-MCT5-PIR

Series: DLSE SERIES Residential Lighting

Product Type: Architectural Fixture

Power / Wattage: 10W

Input Voltage: 120V AC

Voltage: 120V

Color Temperature / Color: 27K/30K/35K/40K/50K, MCT5

Color Temperature: 2700/3000/3500/4000/5000K

Lumens: 630LM

Efficacy: 63 LPW

CRI: CRI ≥ 90

Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)

Power Factor: >0.90

Rated Life: 50,000 hrs

Finish: White

Sensor: MODEL NO.

Ambient Temperature: 104°F

Specification Sheet Features: LED Dimmers); MCT: The Switch is On The LED Board Under The; LED: Unique DOB (Driver On Board) LED Board; BUILDER SERIES LED ECONOMY DISK LIGHT WITH PIR MOTION SENSOR; Unique DOB (Driver On Board) LED Board Enclosed in; MCT: The Switch is On The LED Board Under The Lens; Disk lights have been designed to be a flexible lighting solution; for retrofit and new construction applications, Ideal for closets

Applications: for retrofit and new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications; Damp Location; closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications

Documentation: See manufacturer specification sheet.
