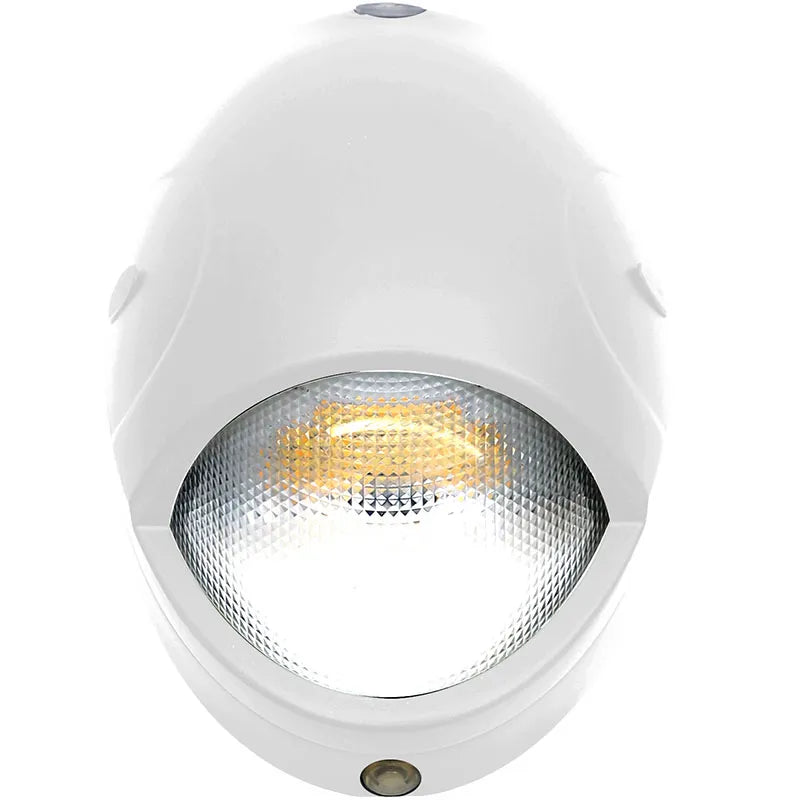

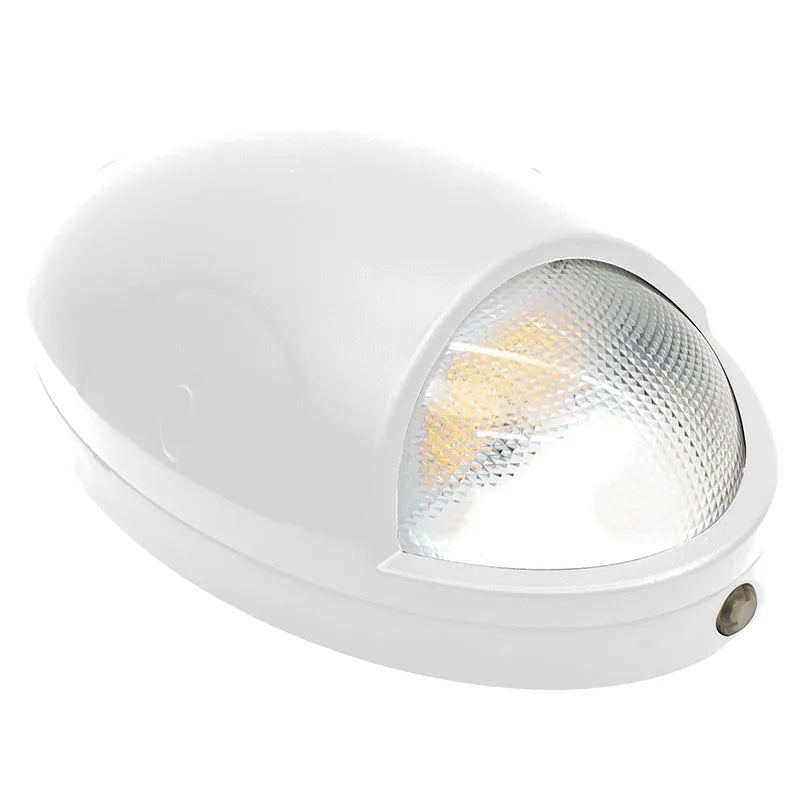

WESTGATE DLW-15W-MCT-WH 15W LED Modern Wall Pack White Finish Photocell 35K/40K/50K 120-277V

Name: WESTGATE DLW-15W-MCT-WH 15W LED Modern Wall Pack White Finish Photocell 35K/40K/50K 120-277V
Brand: WESTGATE
SKU: DLW-15W-MCT-WH
Price: 54.74 USD
Availability: InStock

$54.74

Shipping calculated at checkout.

Product Information

SKU

DLW-15W-MCT-WH

Barcode 840378310796

PRODUCT SPEC SHEET DOWNLOAD

View Spec Sheet

Description

Identification & Application

WESTGATE DLW-15W-MCT-WH 15W LED Modern Wall Pack White Finish Photocell 35K/40K/50K 120-277V

The WESTGATE DLW-15W-MCT-WH 15W LED Modern Wall Pack White Finish Photocell 35K/40K/50K 120-277V is an LED wall pack fixture designed for general site and perimeter lighting with an integrated photocell; IP65, Suitable for Wet Location.

This model is part of the DLW SERIES Outdoor Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): DLW-15W-MCT-WH

Series: DLW SERIES Outdoor Lighting

Product Type: Wall Pack Fixture

Power / Wattage: 15W

Input Voltage: 120-277V AC 50/ 60Hz

Voltage: 120-277V

Color Temperature / Color: 35K/40K/50K, MCT

Color Temperature: 3500K/4000K/5000K

Lumens: 1800LM

Efficacy: 120LPW

CRI: CRI ≥ 80

Dimming: 0-10V Dimming

Power Factor: >0.90

Beam Angle: 100°

Rated Life: 70,000 Hrs

Finish: White

Housing / Material: Back View Back View Front View

Operating Temperature: 31°F to 113°F

Specification Sheet Features: Other Models: DLW SERIES Outdoor Lighting; LED Non-Cutoff Wall Pack with Photocell is ideal for general site; Multi-CCT (The switch is inside the fixture); DLW SERIES Outdoor Lighting; lighting, loading docks, doorway, pathway and parking areas.; Polycarbonate Housing & Lens; 7-Year Warranty; Back plate: Die-cast aluminum

Applications: LED Non-Cutoff Wall Pack with Photocell is ideal for general site; IP65, Suitable for Wet Location

Documentation: See manufacturer specification sheet.
