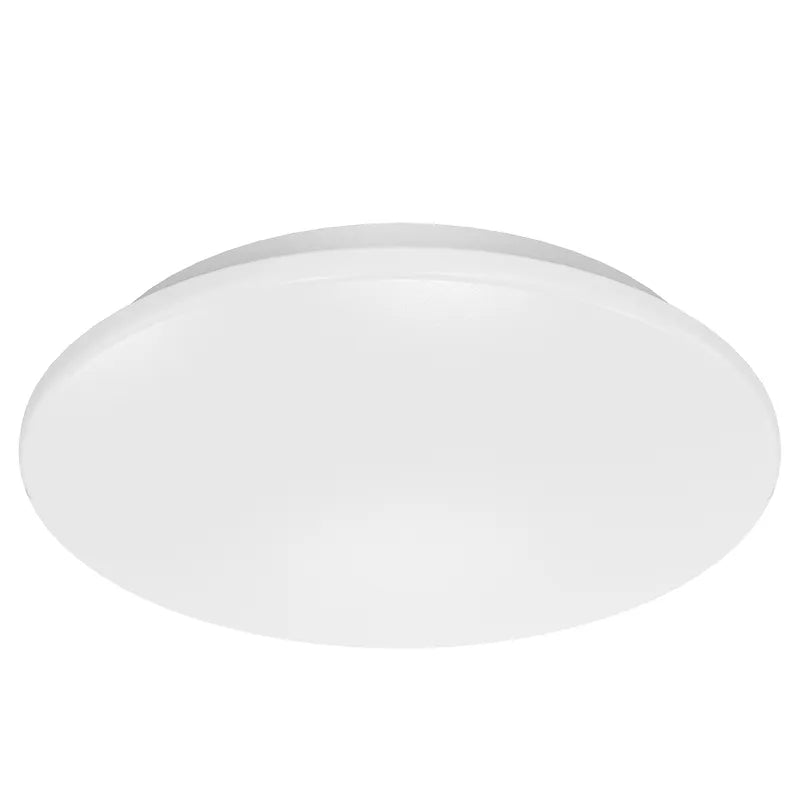

WESTGATE FCRB-11HL-MCT5 20W 11" LED Cloud Flush Mount Fixture White Finish 27K/30K/35K/40K/50K 120V

Name: WESTGATE FCRB-11HL-MCT5 20W 11" LED Cloud Flush Mount Fixture White Finish 27K/30K/35K/40K/50K 120V
Brand: WESTGATE
SKU: FCRB-11HL-MCT5
Price: 23.74 USD
Availability: InStock

$23.74

Shipping calculated at checkout.

Specifications & Downloads

View Spec Sheet

Barcode: 845060090765

Description

Identification & Application

WESTGATE FCRB-11HL-MCT5 20W 11" LED Cloud Flush Mount Fixture White Finish 27K/30K/35K/40K/50K 120V

The WESTGATE FCRB-11HL-MCT5 20W 11" LED Cloud Flush Mount Fixture White Finish 27K/30K/35K/40K/50K 120V is a Westgate Architectural Fixture designed for damp Locations When Gasket is Used; box ideal for Residential and commercial applications; deep dish junction box ideal for Residential and commercial.

This model is part of the FCRB SERIES Residential Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, environmental rating, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): FCRB-11HL-MCT5

Series: FCRB SERIES Residential Lighting

Product Type: Architectural Fixture

Power / Wattage: 20W

Input Voltage: 120 VAC 60Hz

Voltage: 120V

Color Temperature / Color: 27K/30K/35K/40K/50K, MCT5

Color Temperature: 2700K/3000K/3500K/4000K/5000K

Lumens: 1500LM

Efficacy: 75 LPW

CRI: CRI ≥ 80

Power Factor: >0.9

Finish: White

Housing / Material: Spun aluminum Steel (Brushed Nickel

IP Rating: IP20

Specification Sheet Features: The LED Flush Mount Surface Fixture is a low; applications. Driver on Board (DOB) technology, with; no driver or transformer needed. These flush mount; Multi-CCT (selectable with switch is on the LED Board; LED 5CCT CLOUD FIXTURES; Multi Color Temperature (Selectable); The LED Flush Mount Surface Fixture is a low profile downlight; Suitable for Damp Locations When Gasket is Used

Applications: Damp Locations When Gasket is Used; box ideal for Residential and commercial applications; deep dish junction box ideal for Residential and commercial

Documentation: See manufacturer specification sheet.
