WESTGATE LF4MAX-LG-75-150W-MCTPB-P 75W/100W/150W LED Round-Back Flood Light 30K/40K/50K with Photocell 120-277V

$170.74
Shipping calculated at checkout.
Fixture Finish Color
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Product Information

SKU
LF4MAX-LG-75-150W-MCTPB-P
Barcode 840378320566

PRODUCT SPEC SHEET DOWNLOAD

Spec Sheet View Spec Sheet

Description

Identification & Application

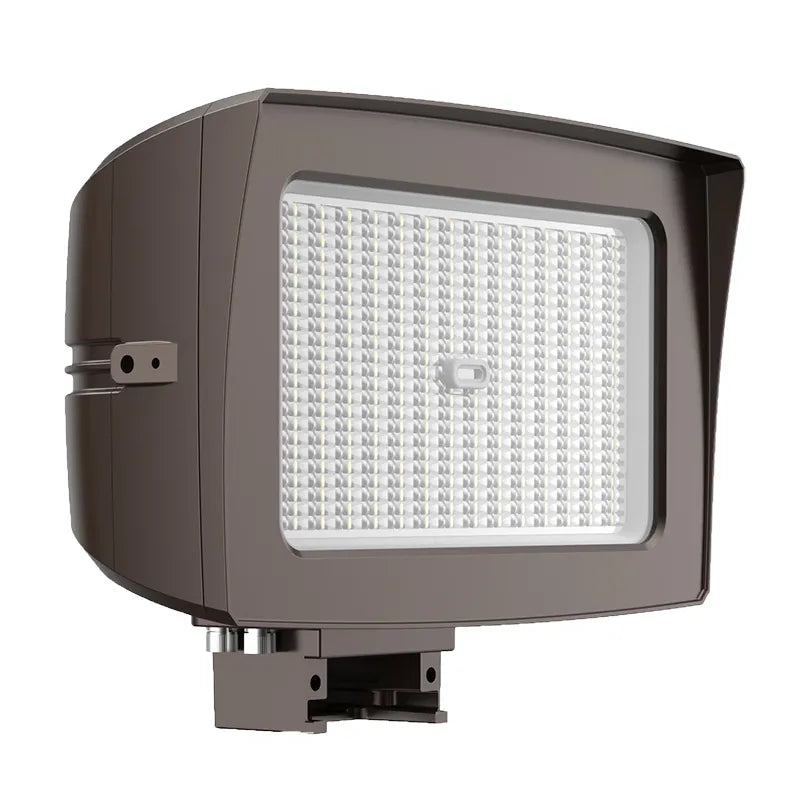

WESTGATE LF4MAX-LG-75-150W-MCTPB-P 75W/100W/150W LED Round-Back Flood Light 30K/40K/50K with Photocell 120-277V

The WESTGATE LF4MAX-LG-75-150W-MCTPB-P is a high-output, power-adjustable, color-selectable LED round-back flood light engineered to deliver dependable illumination for commercial, industrial, municipal, and security lighting applications. Its versatile design provides broad, uniform light distribution while allowing installers to optimize light output and color temperature for a wide variety of outdoor lighting projects.

Part of the LF4MAX Series, this fixture combines field-selectable wattage and color temperature with a durable die-cast aluminum housing, integrated photocell with disconnect switch, high-performance LED optics, and a heavy-duty U-bracket that provides flexible beam angle adjustment. Built for demanding outdoor environments, it offers long service life, reduced maintenance, and reliable performance for both new construction and retrofit installations.

Ideal for general site lighting, alleys, loading docks, building entrances, doorways, walkways, pathways, parking areas, and security lighting, the LF4MAX Series delivers energy-efficient illumination with professional-grade construction and multiple selectable operating modes. Complete electrical, optical, mechanical, and installation specifications are provided below.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): LF4MAX-LG-75-150W-MCTPB-P
Series: LF4MAX Series
Product Type: LED Round-Back Flood Light
Input Voltage: 120-277VAC, 50/60Hz
Selectable Wattage: 75W / 100W / 150W
Selectable Color Temperature: 3000K / 4000K / 5000K
Total Lumens: 10,500 / 14,000 / 21,000 Lumens
Efficacy: 140 LPW
Power Factor: >0.90
CRI: ≥70
Dimming: 0-10V Dimmable
Adjustable Beam Angles: 135° × 125°, 120° × 120°, or 90° × 90°
Housing: Die-Cast Aluminum Housing with Durable Powder-Coat Finish
Photocell: Integrated Photocell with Disconnect Switch
Surge Protection: 6kV Lightning Surge Protection
Cord: 6 ft. SJTW 18/3 AWG Cable
Dimensions: 12.51 in. W × 9.48 in. H × 5.51 in. D
Operating Temperature: -40°F to 104°F
Environmental Rating: IP65 Wet Location Rated
BUG Rating: B4-U0-G1
Effective Projected Area (EPA): Front: 0.38 sq. ft.; Side: 0.30 sq. ft.; Face: 1.05 sq. ft.

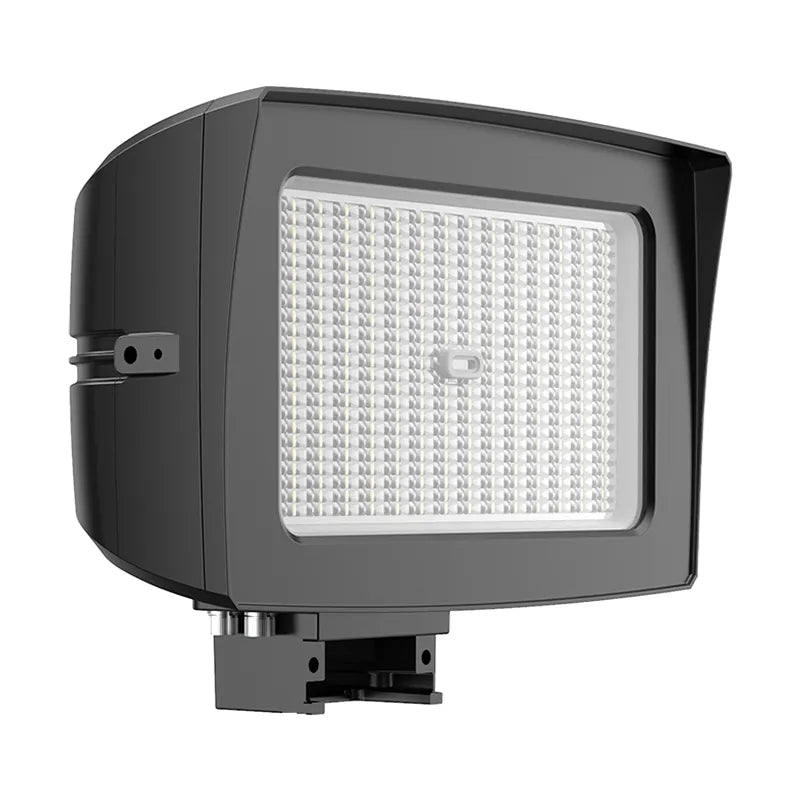

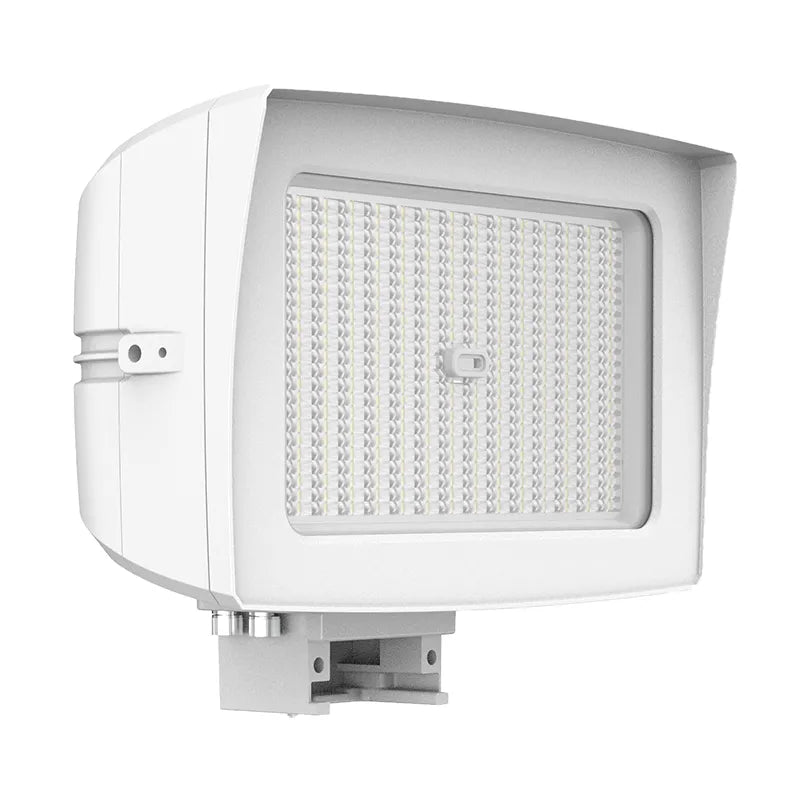

Available Finishes: Bronze, Black, White
Specification Sheet Features: Field-selectable wattage and color temperature; switches conveniently located on the bottom of the fixture; adjustable beam angles; integrated photocell with disconnect switch; die-cast aluminum housing with powder-coated finish; 6kV surge protection; U-bracket for beam angle adjustment; IP65 wet location rated; designed for long-lasting commercial outdoor performance.
Recommended Applications: General site lighting, alleys, loading docks, doorways, pathways, parking areas, security lighting, and replacement of existing HID flood lights and wall packs.
Optional Mounting Accessories: Slip Fitter, Yoke Mount, Straight Arm, Adjustable Straight Arm, Adjustable Wall Junction Box, and Pole Adapter for Slip Fitter (available in Bronze, Black, and White).
Rated Life: 70,000 Hours
Warranty: 7 Year Limited Warranty
Documentation: See manufacturer specification sheet.
