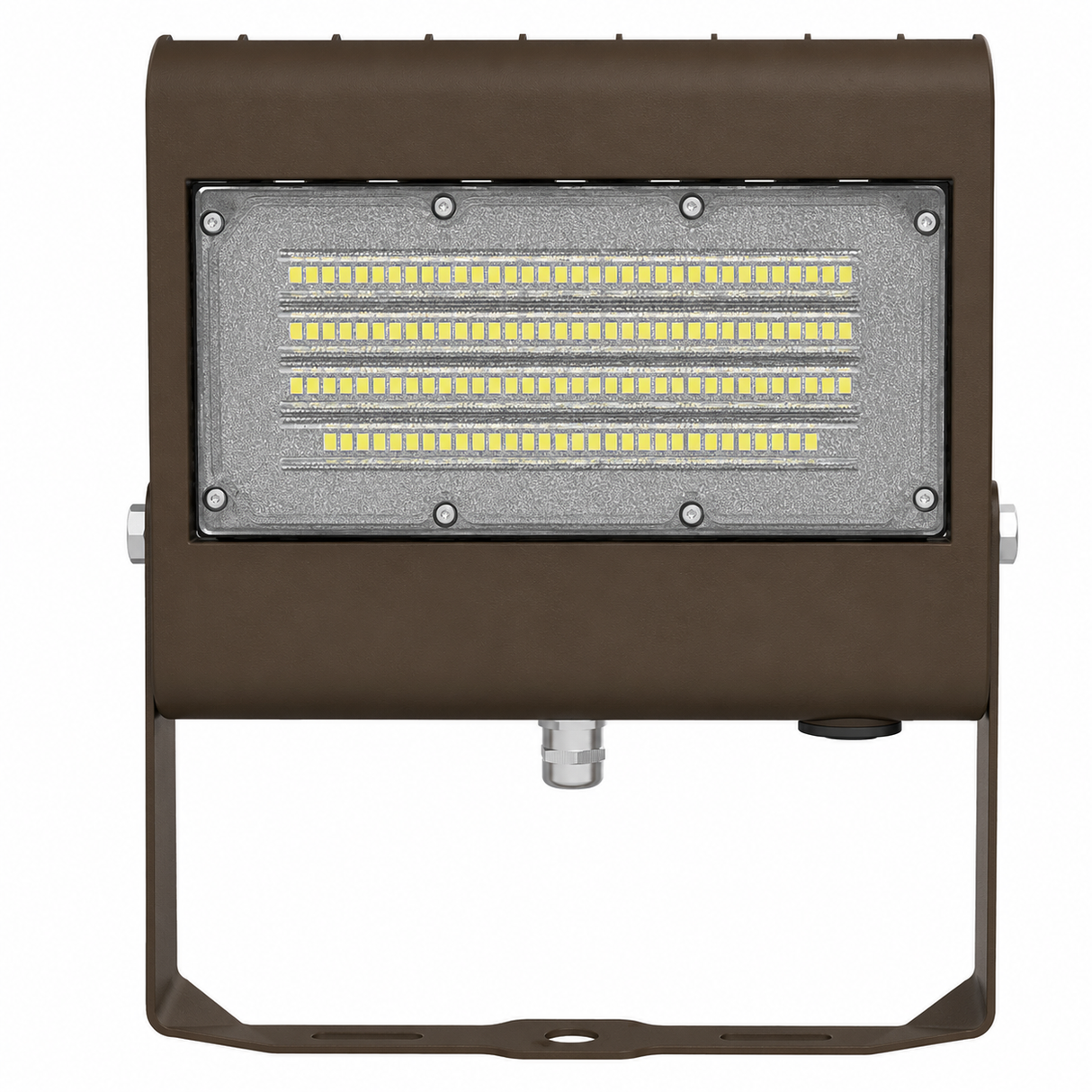

WESTGATE LFX-MD-30-50W-MCTP-TR-P 30/40/50W LED Small Flood Light 3000K/4000K/5000K with Photocell Dimmable U-Bracket Mount 120-277V

Identification & Application

WESTGATE LFX-MD-30-50W-MCTP-TR-P 30/40/50W LED Small Flood Light 3000K/4000K/5000K with Photocell Dimmable U-Bracket Mount 120-277V

The WESTGATE LFX-MD-30-50W-MCTP-TR-P is a versatile LED small flood light engineered for commercial, industrial, and outdoor security lighting applications. Featuring field-selectable wattages of 30W, 40W, and 50W together with selectable color temperatures of 3000K, 4000K, and 5000K, this fixture delivers up to 6,500 lumens while providing exceptional flexibility for a wide range of lighting projects. The pre-installed photocell automatically provides dusk-to-dawn operation, making it ideal for parking lots, building perimeters, loading docks, pathways, alleys, doorways, and general site lighting.

Constructed with a rugged die-cast aluminum housing finished in dark bronze and a high-performance Type III optical lens, the fixture is designed for reliable outdoor operation in demanding environments. Operating on universal 120-277VAC input power, it features smooth 0-10V dimming, high-efficiency Lumileds Luxeon 2835 LEDs, 130 lumens per watt efficacy, a 120° × 90° beam distribution, and a fully adjustable 270° U-bracket mount for precise aiming. Its IP65-rated enclosure provides dependable protection against dust and moisture for long-lasting outdoor performance.

Designed for years of maintenance-free service, the WESTGATE LFX-MD Series is DLC Premium listed, suitable for wet locations, and rated for 70,000 hours of operation. Backed by a 7-year manufacturer's warranty, this high-performance flood light offers outstanding energy savings, dependable illumination, and flexible field-selectable performance for new construction and retrofit lighting applications.

Technical Performance Specifications
