WESTGATE LFX-XXL-300-600W-50K-480V 300/400/500/600W LED Power Adjustable Flood Light 5000K Bronze Finish 480V


$983.85
Shipping calculated at checkout.

% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF

Specifications & Downloads


Barcode: 845060050363

Description

Identification & Application

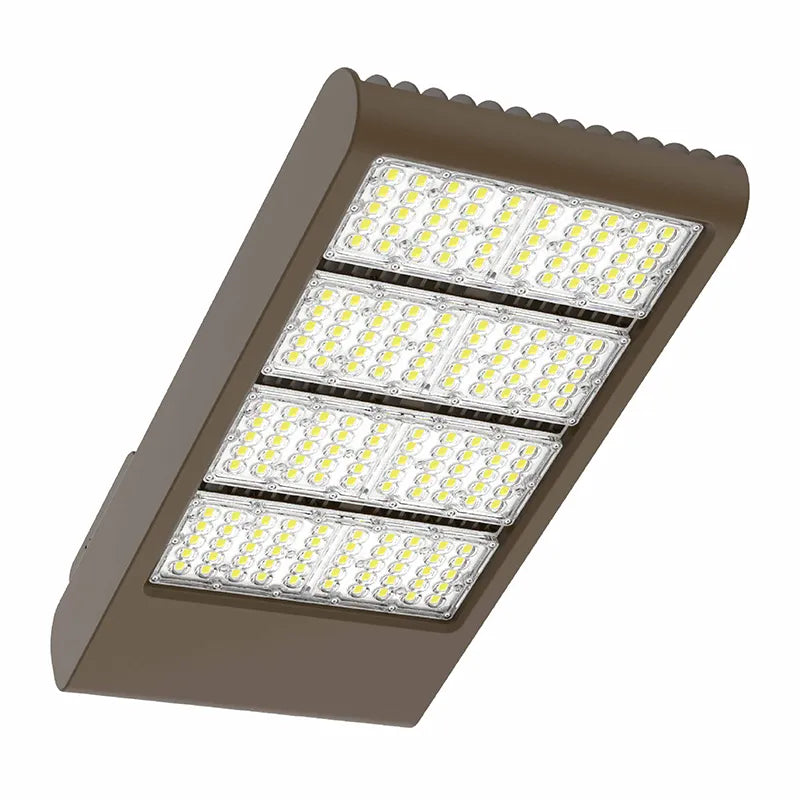

WESTGATE LFX-XXL-300-600W-50K-480V 300/400/500/600W LED Power Adjustable Flood Light 5000K Bronze Finish 480V

The WESTGATE LFX-XXL-300-600W-50K-480V 300/400/500/600W LED Power Adjustable Flood Light 5000K Bronze Finish 480V is an LED flood light fixture designed for General Site Lighting, alleys, loading docks, doorway, pathway and parking areas.

This model is part of the LFX-XXL SERIES Outdoor Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, environmental rating, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): LFX-XXL-300-600W-50K-480V
Series: LFX-XXL SERIES Outdoor Lighting
Product Type: Flood Light Fixture
Power / Wattage: 300W/ 400W/ 500W/ 600W
Input Voltage: 480V
Voltage: 480V
Color Temperature / Color: 50K, 5000K
Color Temperature: 3000K/ 4000K/ 5000K
Lumens: 84000LM Max.
Efficacy: 140 LPW
CRI: ≥ 82
Dimming: 0~10V dimmable
Power Factor: >0.9
Beam Angle: 120°X 90°
Rated Life: Operating Temperature: -104°F to 122°F
Finish: Bronze
Housing / Material: ADC12 Aluminum heat sink, outdoor powder
Sensor: WEC-8RC Remote control
Operating Temperature: -104°F to 122°F
IP Rating: IP65
Specification Sheet Features: LED: LUMILEDS 2835 /5050 LED; NEMA Twist-Lock Shorting Cap Included. Photocell Sold; Aluminum LED board: High conductive, waterproof, aging; 70,000 Hours Rated Life; 7-Year Warranty; Multi-Power - The Switch is On the Bottom of the; Full-Glare Shroud; Default color
Applications: General Site Lighting, alleys, loading docks, doorway, pathway and parking areas
Documentation: See manufacturer specification sheet.
