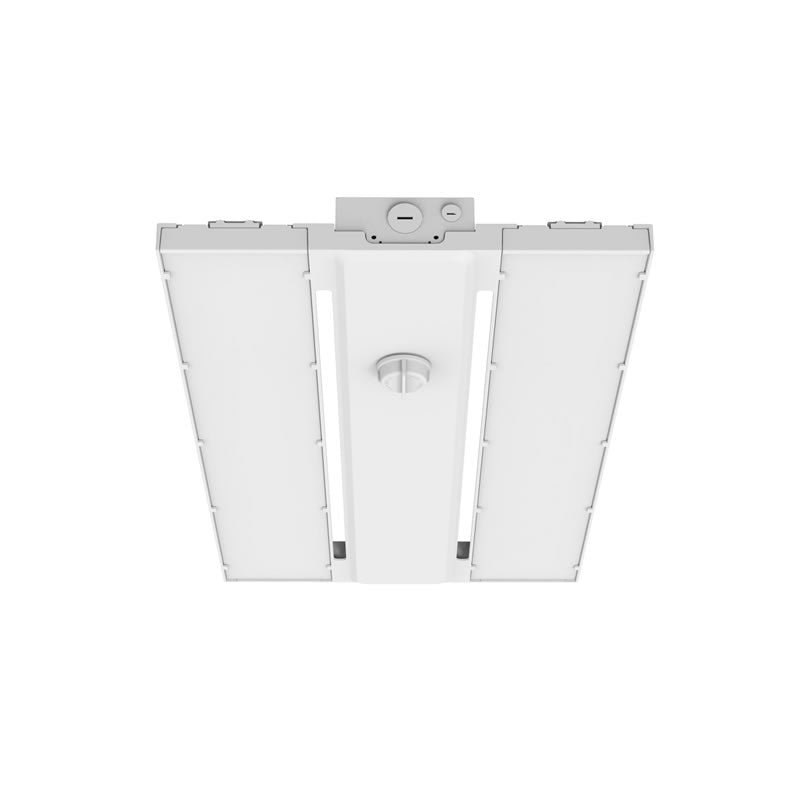

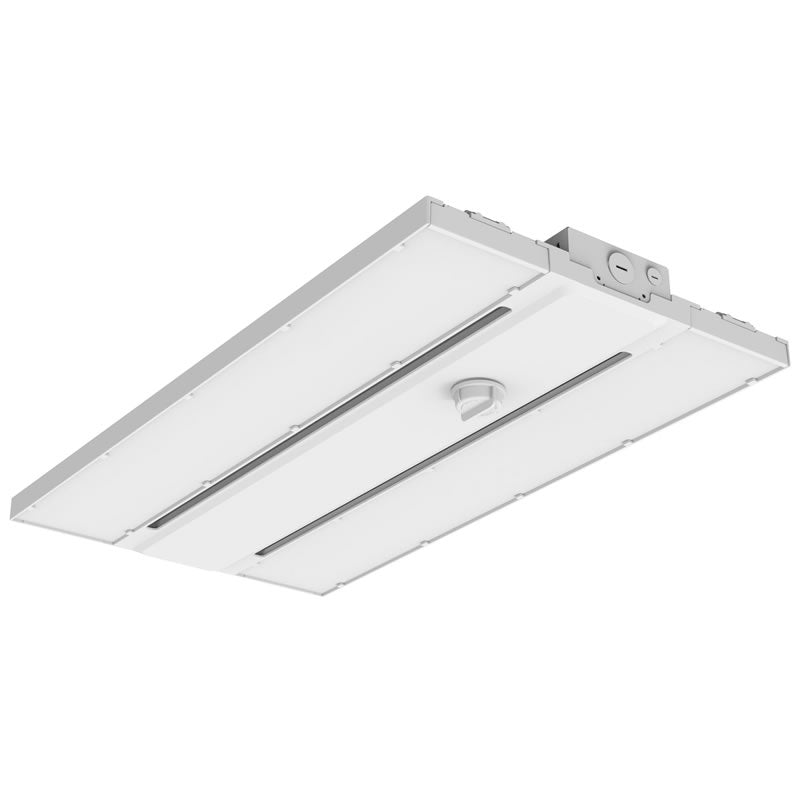

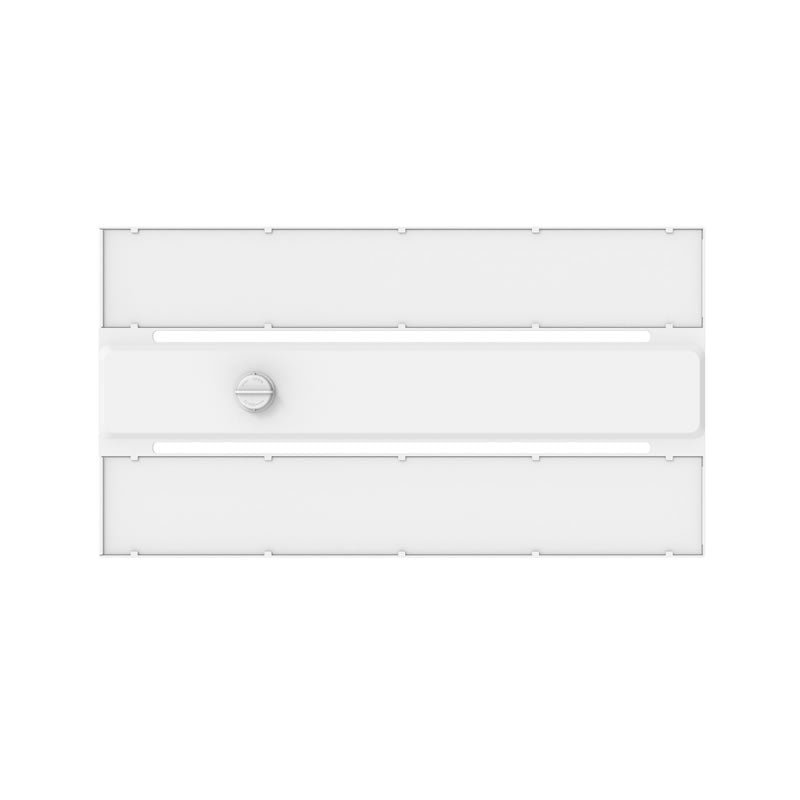

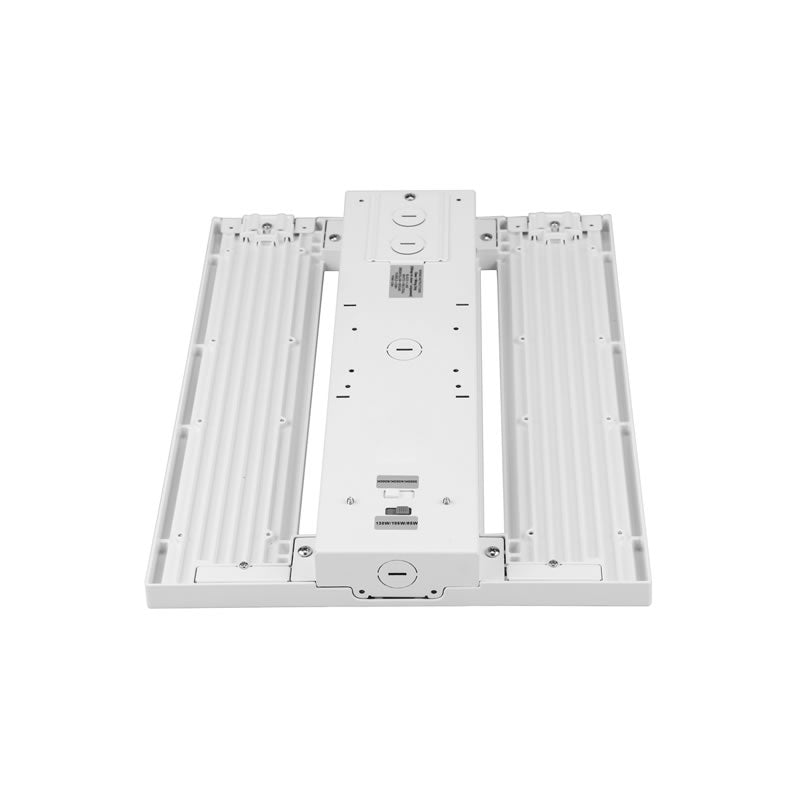

WESTGATE LHCX-255-320W-MCTP-SR 255W/290W/320W LED Compact Linear Highbay Sensor Ready 30K/40K/50K 120-277V

$253.74
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Product Information

SKU
LHCX-255-320W-MCTP-SR
Barcode 840378301176

PRODUCT SPEC SHEET DOWNLOAD

Spec Sheet View Spec Sheet

Description

Identification & Application

WESTGATE LHCX-255-320W-MCTP-SR 255W/290W/320W LED Compact Linear High bay Sensor Ready 30K/40K/50K 120-277V

The WESTGATE LHCX-255-320W-MCTP-SR 255W/290W/320W LED Compact Linear High bay Sensor Ready 30K/40K/50K 120-277V is a linear LED fixture designed for replacement of conventional lighting systems such as; Damp Locations.

This model is part of the LHCX SERIES Industrial Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): LHCX-255-320W-MCTP-SR
Series: LHCX SERIES Industrial Lighting
Product Type: High Bay Fixture
Power / Wattage: 255W/290W/320W
Input Voltage: 120~277V AC/50~60 Hz
Voltage: 120-277V
Color Temperature / Color: 30K/40K/50K, MCTP
Color Temperature: 3000K/4000K/5000K
Lumens: 44800LM Max.
Efficacy: 140 LM/W
CRI: >80
Dimming: 1~10V Dimmable
Power Factor: >0.95
Operating Temperature: -4°F ~ 131°F
Specification Sheet Features: High Quality LED Chips to provide high efficiency, heat; Multi CCT and Power: The Switch is in the driver; Multi CCT and Power: The Switch is On The Driver; Pre-Installed 90° x 90° Lens. See Lens Accessories; from 10ft. to 40ft. the fixture can be surface mounted also.; 12 3/5”(L) X 22 3/4”(W) X 1 3/4”(H); Voltage: 120~277V AC/50~60 Hz; Wattage: 255W/290W/320W
Applications: replacement of conventional lighting systems such as; Damp Locations
Documentation: See manufacturer specification sheet.
