WESTGATE LLHB-240W-MP-40K-D 100W/150W/200W LED Linear Highbay Dimmable 4000K 120-277V

$234.74
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 845060081138

Description

Identification & Application

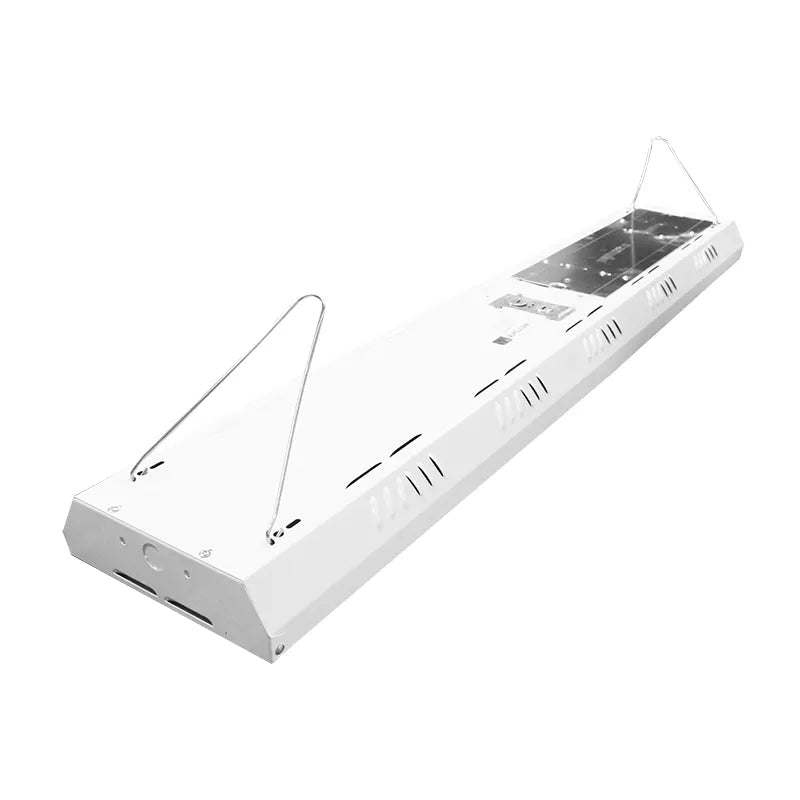

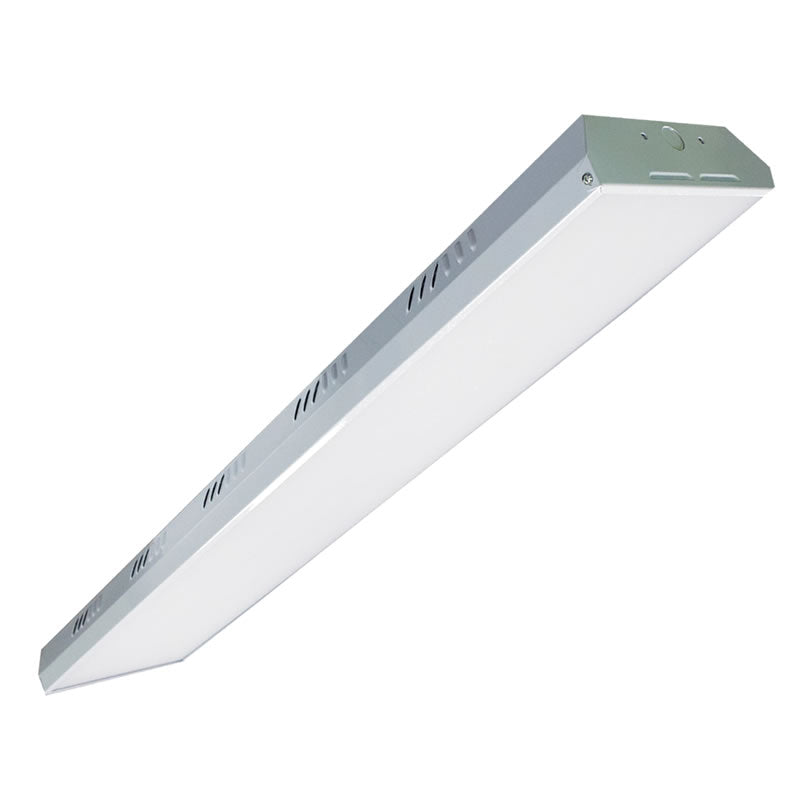

WESTGATE LLHB-240W-MP-40K-D 100W/150W/200W LED Linear High bay Dimmable 4000K 120-277V

The WESTGATE LLHB-240W-MP-40K-D 100W/150W/200W LED Linear High bay Dimmable 4000K 120-277V is a linear LED fixture designed for replacement of conventional lighting systems such as HID and fluorescent. Applications include manufacturing warehousing and other large indoor spaces with mounting heights from 10ft. to 40ft. the fixture can be surface mounted also; Damp Locations.

This model is part of the LLHB SERIES product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): LLHB-240W-MP-40K-D
Series: LLHB SERIES
Product Type: High Bay Fixture
Power / Wattage: 100W/150W/200W
Input Voltage: 120~277VAC/50~60 Hz
Voltage: 120-277V
Color Temperature / Color: 40K, 4000K
Color Temperature: 4000K/5000K
Lumens: 25000LM
Efficacy: 125LM/W
CRI: >80
Dimming: 0~10V Dimmable
Power Factor: >0.95
Operating Temperature: -4°F ~ 131°F
Specification Sheet Features: large indoor spaces with mounting heights from 10ft. to 40ft. the fixture; LED LINEAR HIGH BAY, FIXTURE HANGERS INCL., SUSPENSION CABLE NOT INCL.; High Quality LED Chips to Provide High Efficiency, Heat Dissipation; Aluminum LED Board; 46”(L) x 8-7/8”(W) x 2-6/8”(H); fluorescent. Applications include manufacturing warehousing and other; Stability, and Lumen Maintenance; Polycarbonate Lens, High Flame Retardant Point.
Applications: replacement of conventional lighting systems such as HID and fluorescent. Applications include manufacturing warehousing and other large indoor spaces with mounting heights from 10ft. to 40ft. the fixture can be surface mounted also; Damp Locations
Documentation: See manufacturer specification sheet.
