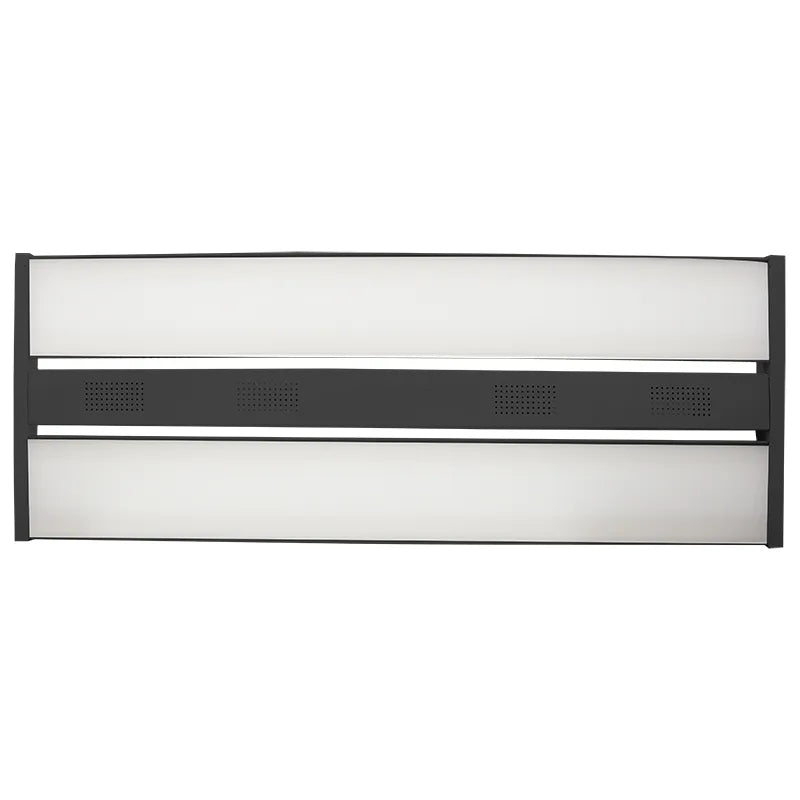

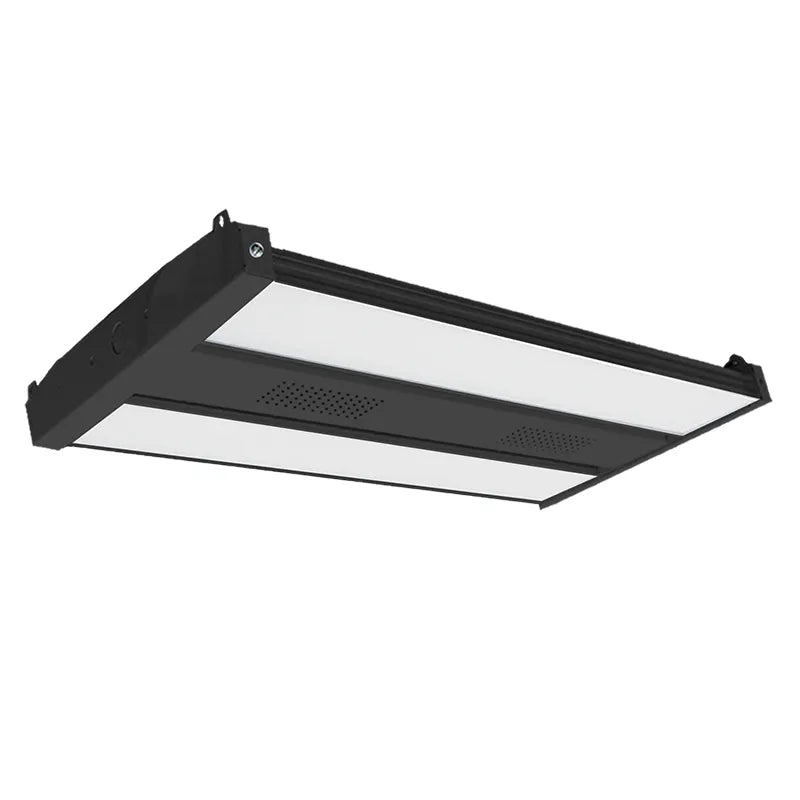

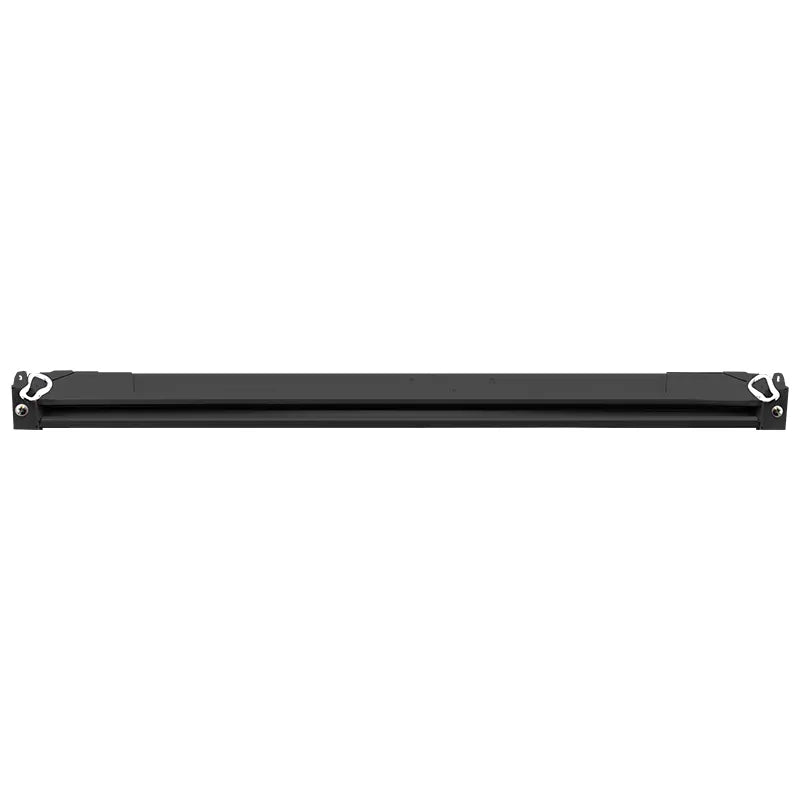

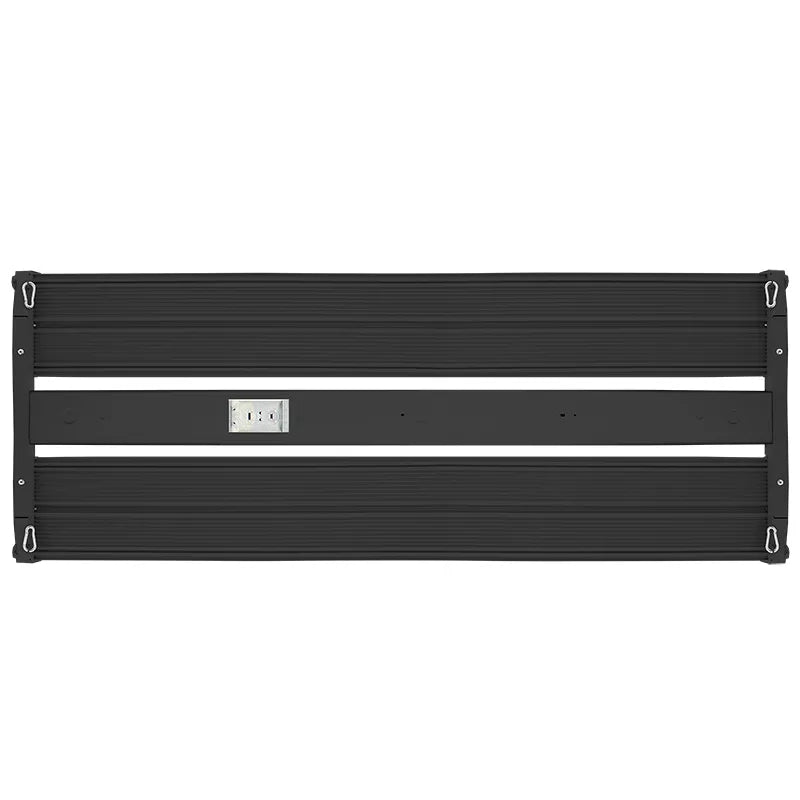

WESTGATE LLHB4-80-150W-MCTP-SR-BK-480V 80W/110W/150W LED Linear Highbay Sensor Ready Black Finish 35K/40K/50K 480V

$356.74
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Product Information

SKU
LLHB4-80-150W-MCTP-SR-BK-480V
Barcode 840378319287

PRODUCT SPEC SHEET DOWNLOAD

Spec Sheet View Spec Sheet

Description

Identification & Application

WESTGATE LLHB4-80-150W-MCTP-SR-BK-480V 80W/110W/150W LED Linear High bay Sensor Ready Black Finish 35K/40K/50K 480V

The WESTGATE LLHB4-80-150W-MCTP-SR-BK-480V 80W/110W/150W LED Linear High bay Sensor Ready Black Finish 35K/40K/50K 480V is a linear LED fixture designed for damp Locations; replacement of conventional lighting systems such as.

This model is part of the LLHB4 SERIES Industrial Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): LLHB4-80-150W-MCTP-SR-BK-480V
Series: LLHB4 SERIES Industrial Lighting
Product Type: High Bay Fixture
Power / Wattage: 80W/110W/150W
Input Voltage: 480V AC/50~60 Hz
Voltage: 480V
Color Temperature / Color: 35K/40K/50K, MCTP
Color Temperature: 3500K/4000K/5000K
Lumens: 18750LM Max.
Efficacy: 125LM/W
CRI: >80
Dimming: 0~10V dimmable
Power Factor: >0.95
Finish: Black
Housing / Material: Volt Sample Ordering
Sensor: Housing Volt Sample Ordering
Operating Temperature: -4°F ~ 131°F
Specification Sheet Features: High Quality LED Chips To Provide High Efficiency, Heat; Multi CCT and Power: The Switch is in the driver; Pre-installed single-pin Audio Jack Socket for Motion; Aluminum LED board; 24 1/4” (L) X 17 3/4” (W) X 2” (H); Stability, and Lumen Maintenance; Polycarbonate Lens, High Flame Retardant Point
Applications: Damp Locations; replacement of conventional lighting systems such as
Documentation: See manufacturer specification sheet.
