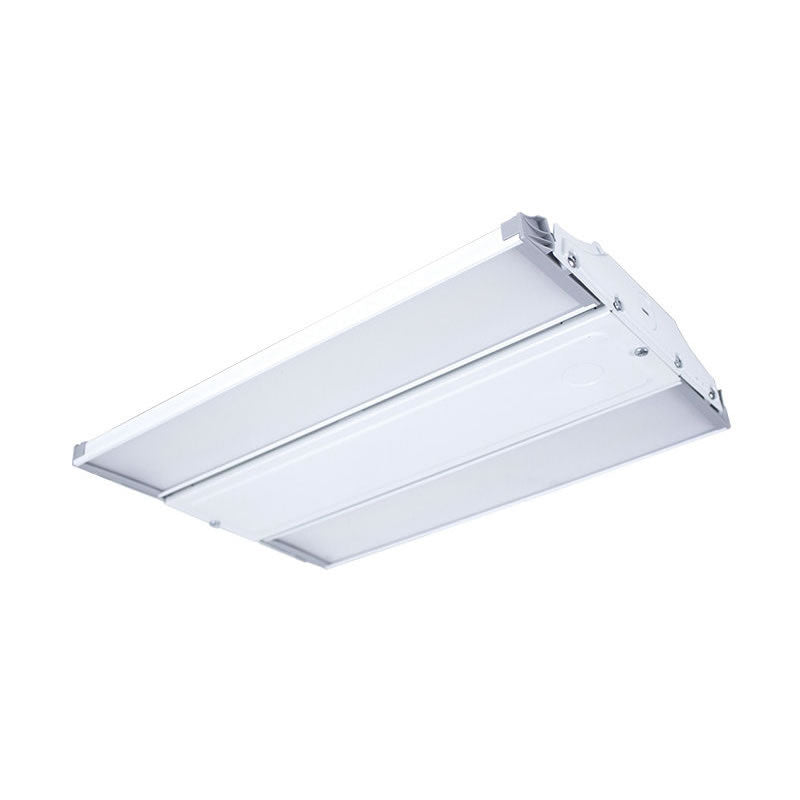

WESTGATE LLHC-165-220W-MCTP-SR 165W/190W/220W LED Adjustable Linear Highbay Sensor Ready 30K/35K/40K/50K 120-277V

Name: WESTGATE LLHC-165-220W-MCTP-SR 165W/190W/220W LED Adjustable Linear Highbay Sensor Ready 30K/35K/40K/50K 120-277V
Brand: WESTGATE
SKU: LLHC-165-220W-MCTP-SR
Price: 158.74 USD
Availability: InStock

$158.74

Shipping calculated at checkout.

Product Information

SKU

LLHC-165-220W-MCTP-SR

Barcode 840378303996

PRODUCT SPEC SHEET DOWNLOAD

View Spec Sheet

Description

Identification & Application

WESTGATE LLHC-165-220W-MCTP-SR 165W/190W/220W LED Adjustable Linear High bay Sensor Ready 30K/35K/40K/50K 120-277V

The WESTGATE LLHC-165-220W-MCTP-SR 165W/190W/220W LED Adjustable Linear High bay Sensor Ready 30K/35K/40K/50K 120-277V is a linear LED fixture designed for replacement of conventional lighting systems such as; Damp Locations.

This model is part of the LLHC SERIES Industrial Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): LLHC-165-220W-MCTP-SR

Series: LLHC SERIES Industrial Lighting

Product Type: High Bay Fixture

Power / Wattage: 165W/190W/220W

Input Voltage: 120~277V AC/50~60 Hz

Voltage: 120-277V

Color Temperature / Color: 30K/35K/40K/50K, MCTP

Color Temperature: 3000K/3500K/4000K/5000K

Lumens: 33000LM Max.

Efficacy: 150LM/W

CRI: >80

Dimming: 0~10V Dimmable

Power Factor: >0.95

Operating Temperature: -4°F ~ 131°F

Specification Sheet Features: Multi CCT and Power: The Switch Is On The Driver; from 10ft. to 40ft. the fixture can be surface mounted also.; High quality LED Chips to Provide High Efficiency, Heat; Multi CCT and Power: The Switch Is In The Driver; Lens: Polycarbonate Lens; 50,000 Hours Rated Life; Stability, and Lumen Maintenance; Polycarbonate Lens, High Flame Retardant Point.

Applications: replacement of conventional lighting systems such as; Damp Locations

Documentation: See manufacturer specification sheet.
