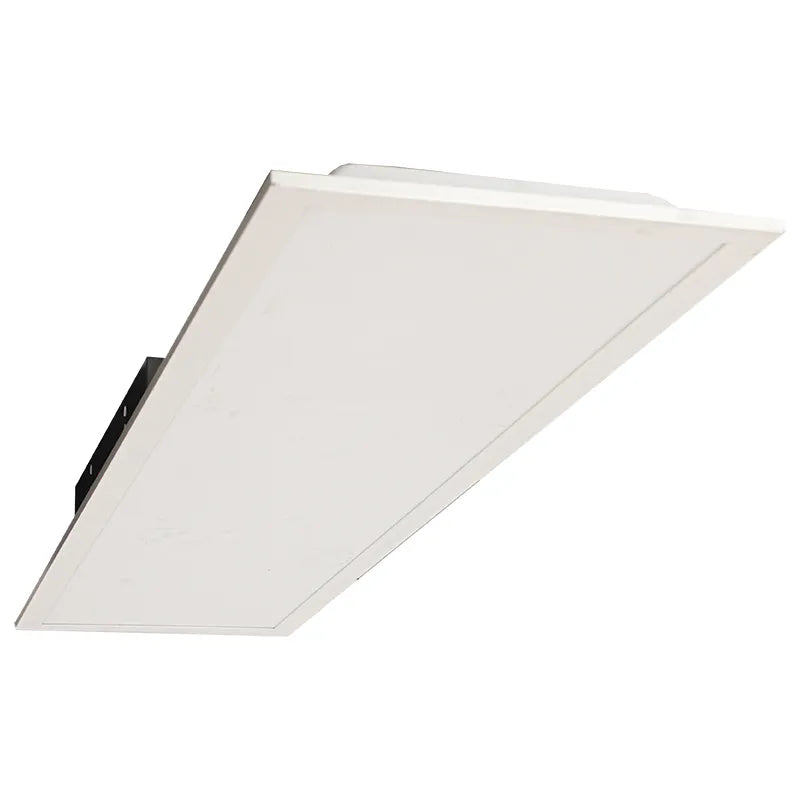

WESTGATE LPNP-1X4-MCTP-SR 19W/25W/32W 1x4-Ft LED Flat Panel 35K/40K/50K Sensor Ready 120-277V

Name: WESTGATE LPNP-1X4-MCTP-SR 19W/25W/32W 1x4-Ft LED Flat Panel 35K/40K/50K Sensor Ready 120-277V
Brand: WESTGATE
SKU: LPNP-1X4-MCTP-SR
Price: 53.74 USD
Availability: InStock

$53.74

Shipping calculated at checkout.

Specifications & Downloads

View Spec Sheet

Barcode: 840378310642

Description

Identification & Application

WESTGATE LPNP-1X4-MCTP-SR 19W/25W/32W 1x4-Ft LED Flat Panel 35K/40K/50K Sensor Ready 120-277V

The WESTGATE LPNP-1X4-MCTP-SR 19W/25W/32W 1x4-Ft LED Flat Panel 35K/40K/50K Sensor Ready 120-277V is an LED panel or troffer fixture designed for hotel, offices, retail outlets, restaurant, parking garages, storage room, conference room, education facilities and more; This indoor commercial lighting is ideal for hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, education facilities, and more.

This model is part of the LPNP SERIES product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): LPNP-1X4-MCTP-SR

Series: LPNP SERIES

Product Type: Flat Panel Fixture

Power / Wattage: 19W/25W/32W

Input Voltage: AC120V-277V 50/60Hz

Voltage: 120-277V

Color Temperature / Color: 35K/40K/50K, MCTP

Color Temperature: 3500K/4000K/5000K

Lumens: 4000LM Max

Efficacy: 125 LPW

CRI: CRI ≥ 80

Dimming: 0~10V Dimming

Power Factor: >0.90

Beam Angle: 110°

Rated Life: 50,000 hrs

Operating Temperature: -68ºF~104ºF

Specification Sheet Features: Multi Color Temperature & Multi Power/Wattage (Selectable); Fixture Operating Voltage: 36VDC; Multi CCT & Multi Power; (selectable switch on back of fixture); This indoor commercial lighting is ideal for hotels, offices; Earthquake H and Suspension Hooks Pre-Installed; Multi Color Temperature & Multi Power; 5-Year Warranty

Applications: hotel, offices, retail outlets, restaurant, parking garages, storage room, conference room, education facilities and more; This indoor commercial lighting is ideal for hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, education facilities, and more

Documentation: See manufacturer specification sheet.
